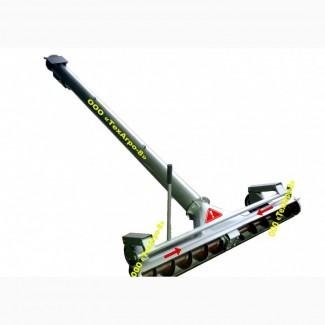

Screw grain conveyor "GETMAN - 6.0m" with picker up to 25t/h, d=159mm, 4kW/380V, Zaporizhzhia region.

The auger grain conveyor is intended for transportation, loading or unloading of grain, leguminous, grain and oil crops, as well as construction and bulk materials to the required height or vehicles with high sides.

The ZPSh-8 grain loader is intended for loading and unloading, horizontal movement of grain, seeds, groats, construction and other bulk materials.

► Loading height 4.50 m. Productivity up to 25t/h. The possibility of additional equipment with a removable hopper and a 1.50 m auger pick-up.

Technical characteristics:

• installation type - mobile
• body length - 8m (three bodies of 3x2x3m each)
• lifting height - 4.50m.
• pipe diameter -159 mm
• pipe wall thickness - 3.5 mm
• diameterwheels - 200 mm
• productivity - from 20 to 25 t/h (depending on the transported product and the angle of inclination)
• electric power motor - 3 kW/h - 4 kW/h (380V/220V)
• mass of the installation - 240 kg
• operational termloader operation - not less than 8 years

The main constructive advantages:

► the thickness of the pipe wall is 3.5 mm, which ensures rigidity, mechanical resistance in various conditions and durability

► the diameter of the auger, the pitch between turns and the gaps inside the pipe exclude any damage to the transported product

► spirals of the auger are made of cold-rolled steel, which increases the resource of their work.

► the reliable design of the adjustable stand made of 40-50 profile pipe ensures the stability of the structure during operation

► the grain loader consists of three connected bodies, which is convenient for transportation and allows the user to assemble both an 8-meter and a 6-meter structure of the loader
(//tractor-service.com)
► the connection of auger sections is carried out with the help of square bushings on suspended bodies with bearings, which ensures reliability, durability and stability in the operation of the loader

► at the request of the customer, it is possible to complete with a removable hopper with a flap, for 100-150 kg and more

► the maximum lifting height is up to 4.50 m, which allows loading into cars with high sides

► lifting-lowering is regulated by a manual cable winch or a trapeze at the customer's request

► a new electric motor with a capacity of 3kW/h (380V) or 4kW/h (220V) is installed with a 12-month factory warranty

► as well as a reliable electromagnetic starter PMK-09 with thermal relay and double protection of the electric motor

The loader includes:

• casings with screws - 3 pieces (3x2x3m)
• intake auger with a grip of 1.50 m - 1 piece
• adjustable stand withwheels - 1 piece
• protective mesh on the intake unit - 1 piece
• electric motor with a power of 3kW-4kW (380/220V) - 1pc
• protective case - 1pc
• electromagnetic starter - 1 piece
• power cable - 9m (7x2m)
• portable plug 220V or 380V - 1pc
• bolt fasteners - bolts, nuts, washers
• passport for the product - 1 pc.

24-month factory warranty! Quality! Delivery across Ukraine!

Any form of payment convenient for you!

The goods are delivered by our vehicles or by any carrier, In-Time, Novaya Poshta, etc. (cash on delivery).
