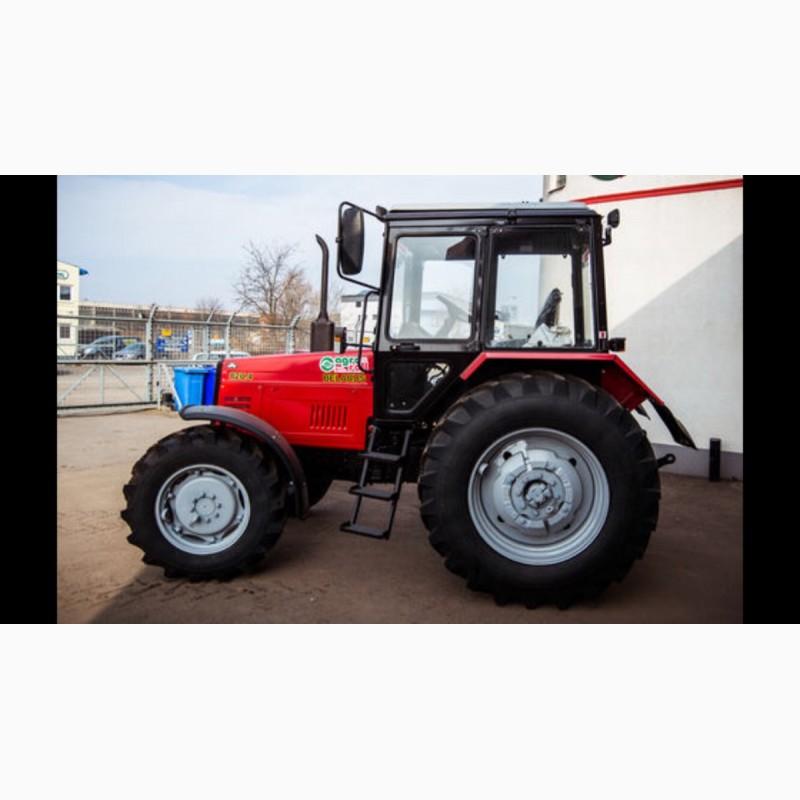

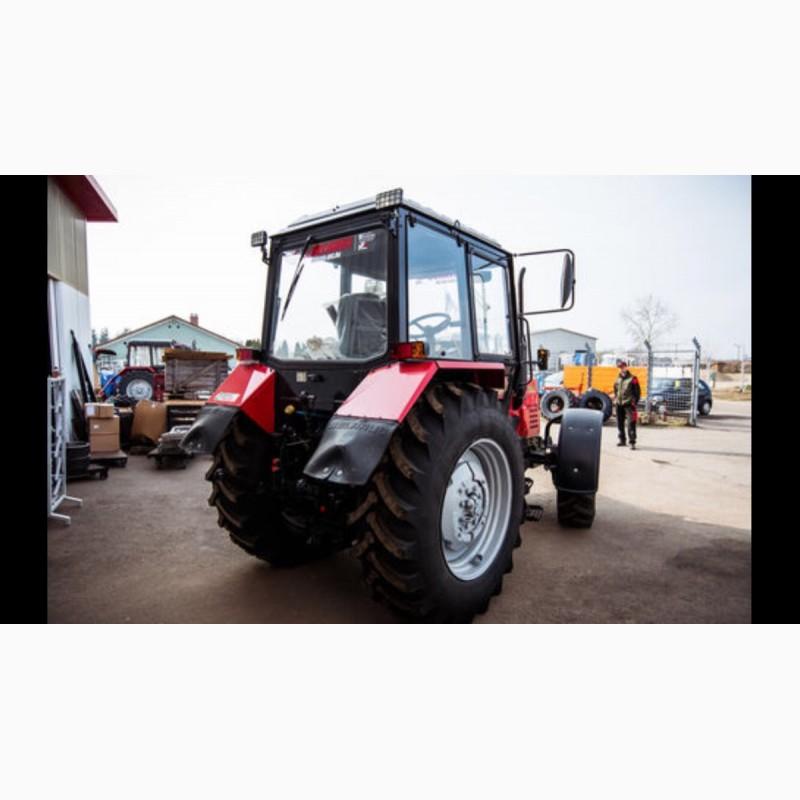

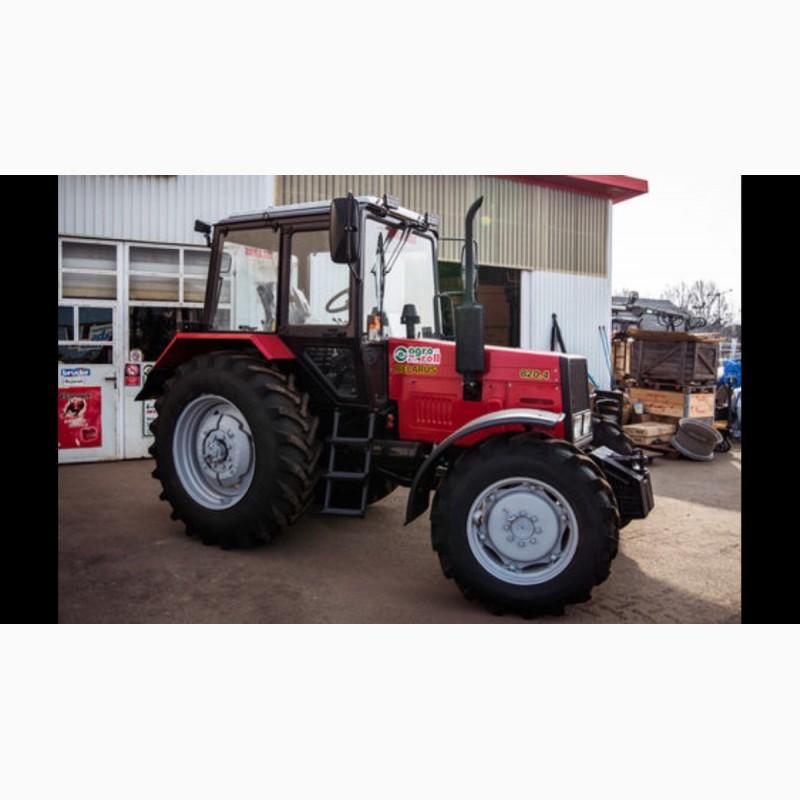

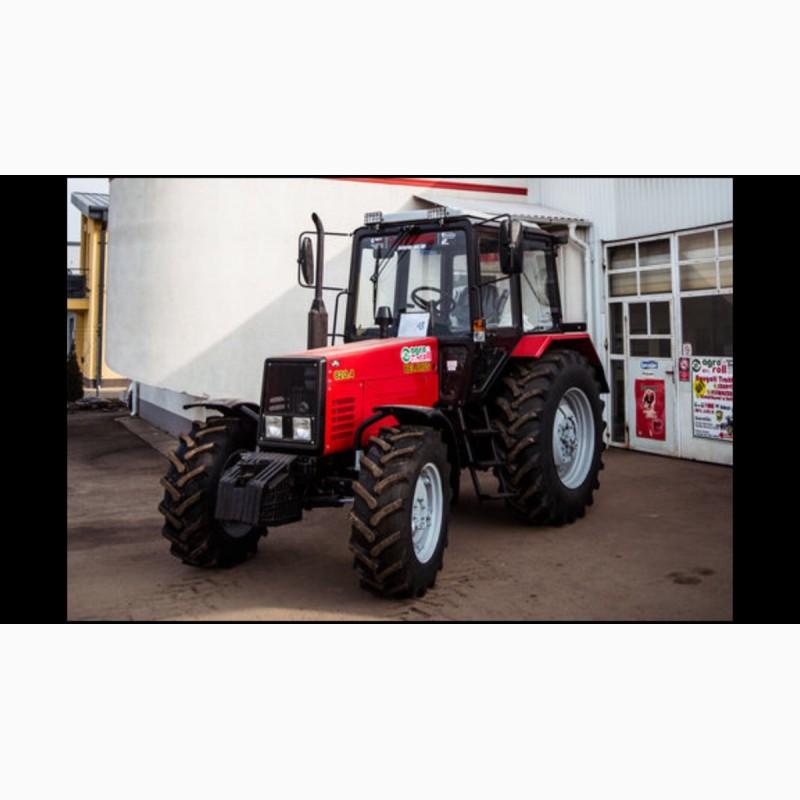

For sale tractor MTZ 820.4, export version, analogue of MTZ 82.1. Worked in Europe. Worked out 520 moto hours. According to the results of diagnostics, all consumables are replaced. new battery It is possible to pay in installments (seasonally)
Technical characteristics
Engine D-243
Power, kW (hp) 60 (81)
Nominal rotation frequency, rpm 2200
Cylinder diameter / piston stroke, mm 110 / 125
Number of cylinders 4
Working volume, l 4.75
Maximum torque at 1400 rpm, N.m (kgf.m) 290 (29.6)
Specific fuel consumption at nominal power, g/kWh. (g/l.s.h.) 220 (162)
Torque reserve factor, % 15
Fuel tank capacity, l 130
Diesel with direct injection.
The clutch is dry, single-disc.
Mechanical gearbox (with a gearbox that doubles the number of gears)
Number of gears (forward / reverse) 18 / 4
Speed forward / backward, km/h 1.89 — 33.4 / 3.98 — 8.97

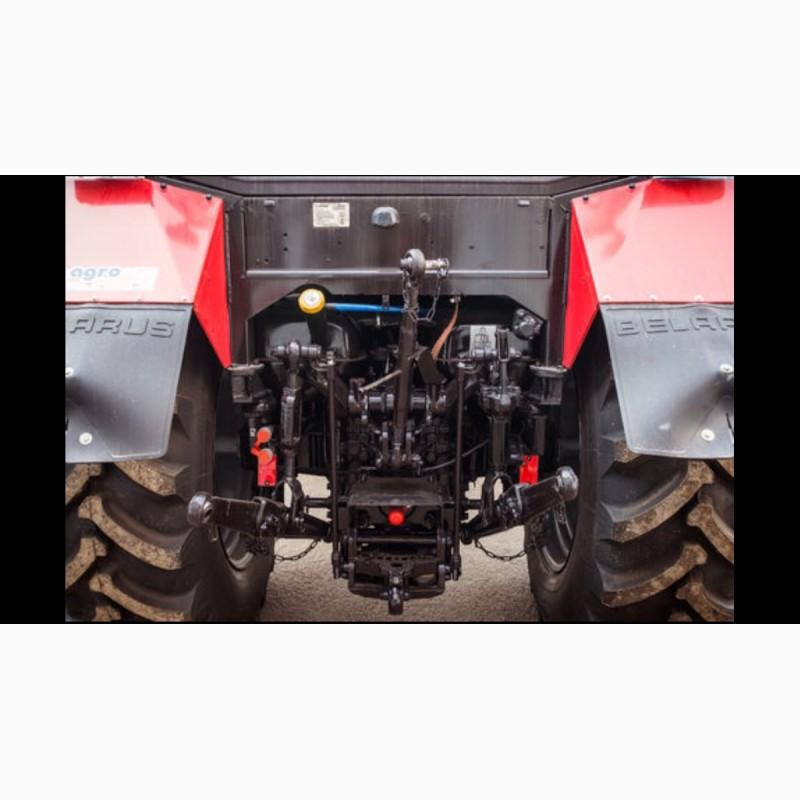

Independent two-speed rear PTO with hydromechanical control system
— independent I, rpm 570
— independent II, rpm 1000
(//tractor-service.com)
— synchronous, rev/m.path 3.5
Differential lock with hydraulic control, has two positions:
— included by force;
— off, with a hydromechanical amplifier
— 3 positions (+ automatic).
Load capacity on the axes of the hinges of the lower rods, kgf 3200
Maximum pressure, kgf/cm 200
Productivity
pump, l/min 45
Capacity of the hydraulic system, l 21
Wheel base, mm 2450
Total length, mm 3930
Width, mm 1970
Cabin height, mm 2780
on the front
wheels 1400 — 1800
on the rear wheels 1800 — 2100
Ground clearance, mm under the front axle 645
Ground clearance, mm under the rear axle 465
The smallest turning radius, m 4.1
Operating mass without ballast, kg 3900
Dimensions
front tires wheels 11.2" — 20"
Rear tire sizes 15.5R38
