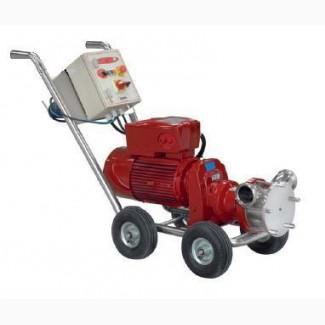

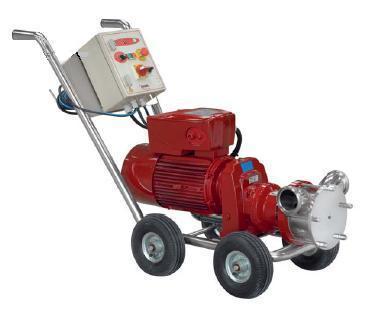

Impeller pump RF 22-50 RF 50-80 for winemaking — Reversible pump with a flexible workingwheel. The effect of self-suction is achieved thanks to the construction of thepump, the maximum depth of self-suction is 5 meters. The field of application of the RF pump is very wide, the pump is able to efficiently pump products of different viscosity, products with inclusions, as well as gas-containing products. This pump is used in the field of winemaking for pumping wine or must.

Principle of operation

Due to the asymmetric section of the pump housing, the volume between the flexible wings of the impeller increases in the suction zone, a vacuum is created, and the liquid enters the pump housing.
The rotating impeller moves the product from the suction to the discharge nozzle.
Due to the asymmetric shape of the body, the wings of the impeller bend at the injection hole, the volume between them decreases, thereby displacing the product.

Design and characteristics

Monoblock design. The case is made by precision casting. Connections DIN 11851. External single face seal. Electric motor: 2 speeds, 356 - 721 rpm. min, 3ph, 230-400V, 50 Hz, IP55. Stainless steel cart. EC control panel with 10 m of cable. Friction discs. Temperature sensor. Easy to maintain. Painted in red color RAL3003.

Materials

Parts in contact with the product AISI 316L
Lantern and bearing support AL
Other details AISI 304
Impeller EPDM Neoprene(//tractor-service.com)
Gaskets NBR
Face seal Cer C NBR
Jet surface treatment

Options

Impellers from CR, NBR
Face seal: SiC SiC and SiC C
Cuff seal
Connections: SMS, Clamp, Macon, Garolla, etc.
Engines with second protections
Frequency converter (Gamma Control)
Stainless steel control panel
