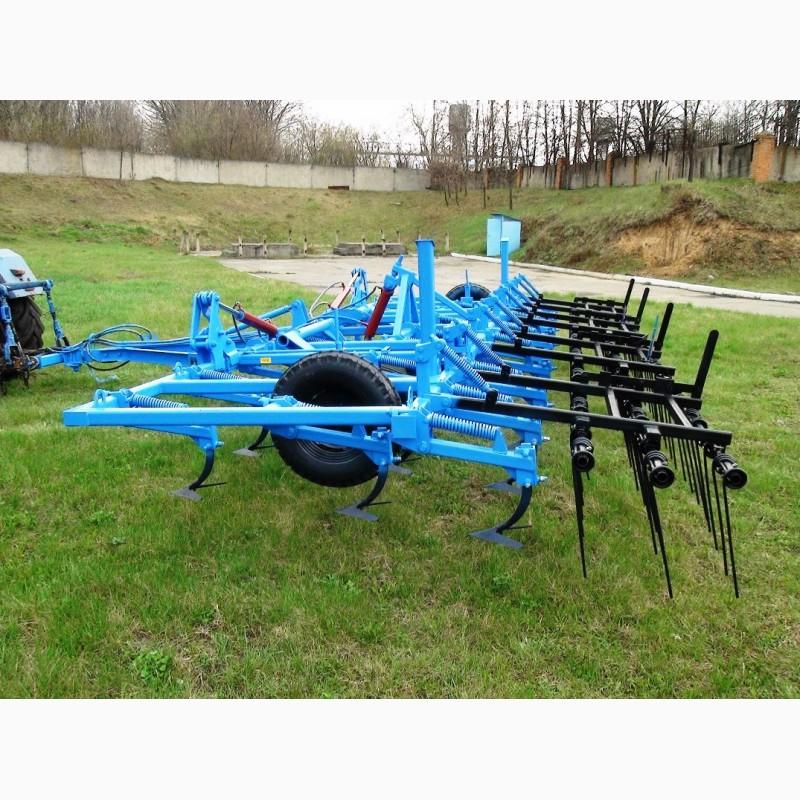

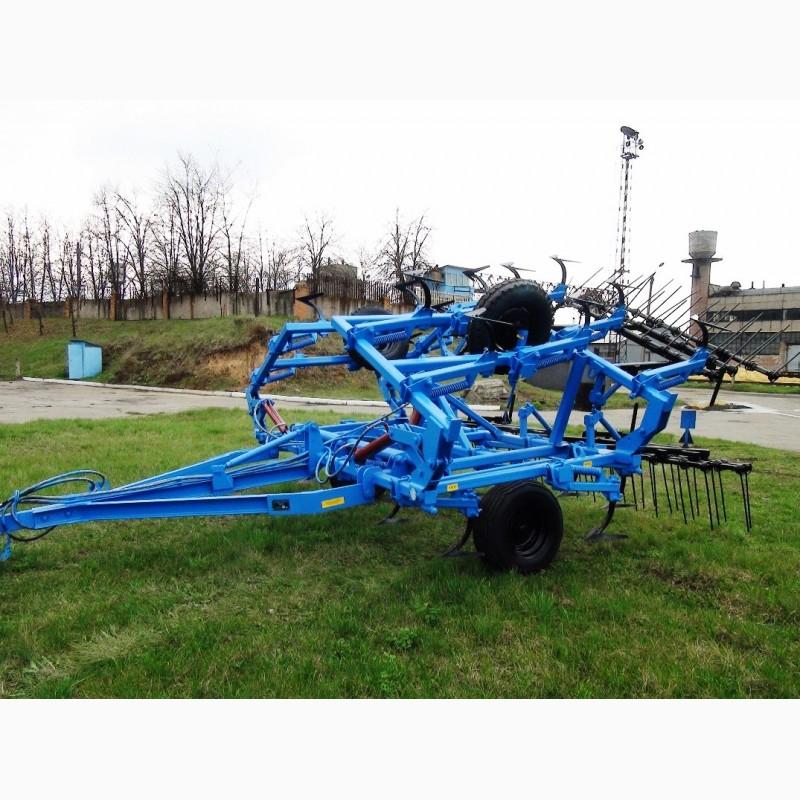

Trailed cultivator with comb KPP-8M, Cherkasy region.

Intended for continuous cultivation andpresowing processing. Can work on raw stubble.

The design of the frame and working bodies allow the cultivator to work and level the top layer of the soil very efficiently and evenly.

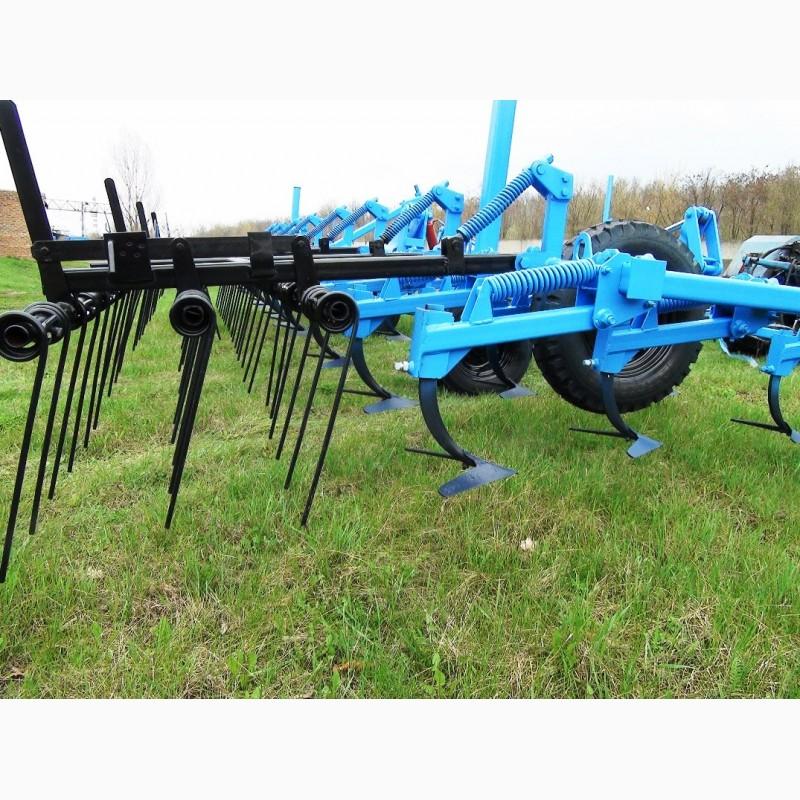

For the best leveling of the field and grinding of large lumps, the cultivator is equipped with a 4-row finishing spring harrow. The cultivator performs several operations in one pass, thus allowing to achieve economy of fuel and lubricants, as well as depreciation and working time of the tractor.

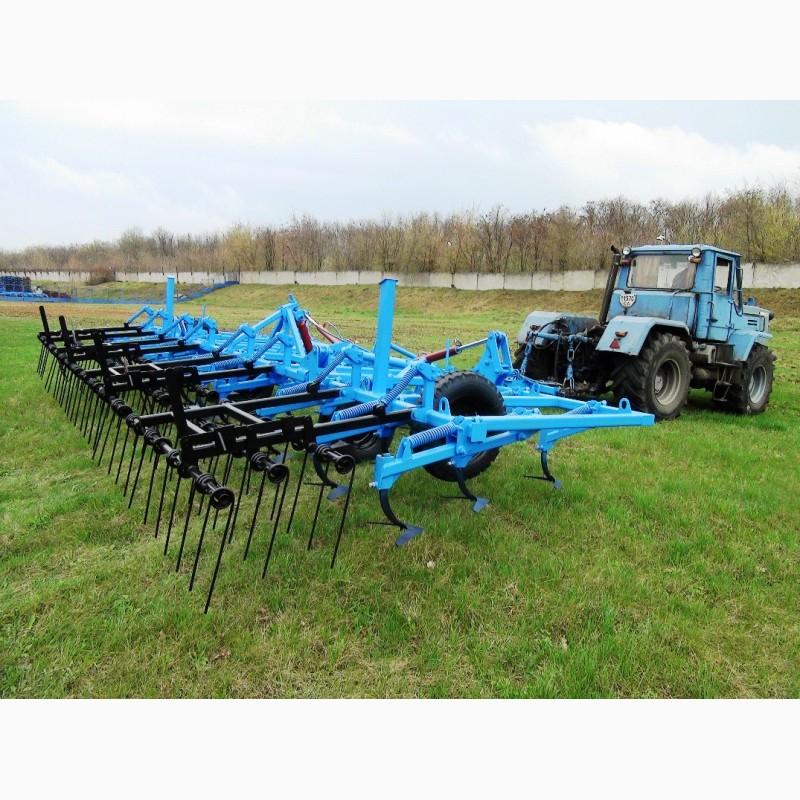

It is aggregated with tractors of the traction class (150 hp) T-150K.

Name:Steam cultivator trailer KPP-8M
The method of trailer aggregation
Aggregated tractor class 3 150 hp. (T-150K)
Productivity for 1 ha/hour 9.6
Working speed, km/h 6...12(//tractor-service.com)
Working width of capture, m 8
Transport speed, km/h no more than 20
Service personnel, people 1 tractor driver
Crushing of soil percent, lump size:
— from 0 to 10 mm not less than 70
— from 10 to 25 mm not less than 20
— from 25 to 50 mm not less than 10
The depth of soil cultivation, cm ot 6 to 12 cm.
Machine weight, kg 2100
Overall dimensions in working position, mm, not more than:
— length 8000
— width 1300
— height 6000
