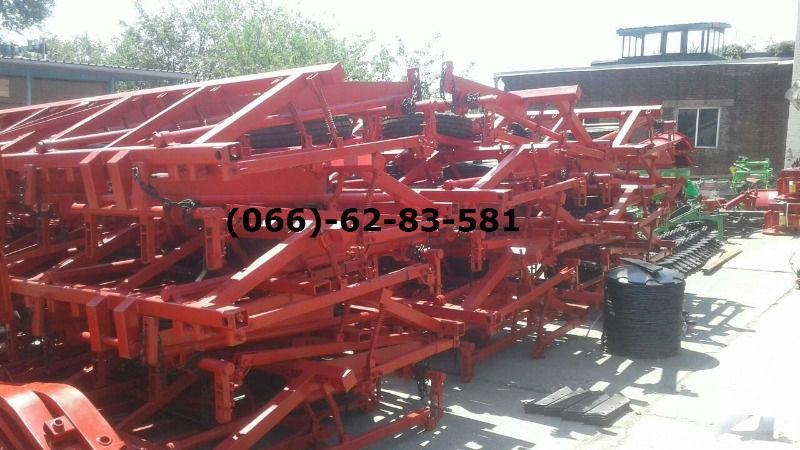

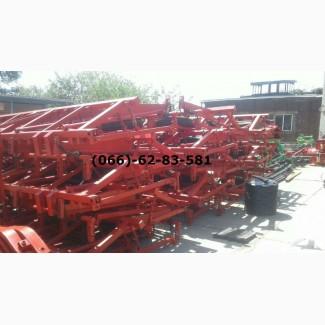

Cultivator KPSU - 4 universal type: trailed KPSU-4 for continuous soil cultivation, Kherson region.

Cultivator KPSU - 4 universal type: trailedKPSU-4 forcontinuous cultivation of soil with simultaneous harrowing.

The cultivator is aggregated with tractors with a capacity of 44 - 55 kW (60 - 70 hp).

TECHNICAL DATA

1. Productivity at the maximum working speed, ha / h, not less than 4.8

2. Working width of capture, m, not less than 4

3. Depth of tillage, cm:

- with arrow-shaped paws 5-12

-harrows teeth 4-8

4. Overall dimensions in working position, mm:(//tractor-service.com)

- length 4900 ± 50

- width 4000 ± 70

- height 940 ± 50

5. Overall dimensions in transport position, mm: 161

- довжина 4800 ± 100

- width 4000 ± 70

- height 1640 ± 50
6. Ground clearance, mm, not less than 300
7. Mass, kg 900 ± 40
8. Specific fuel consumption, kg / ha, no more than 4
