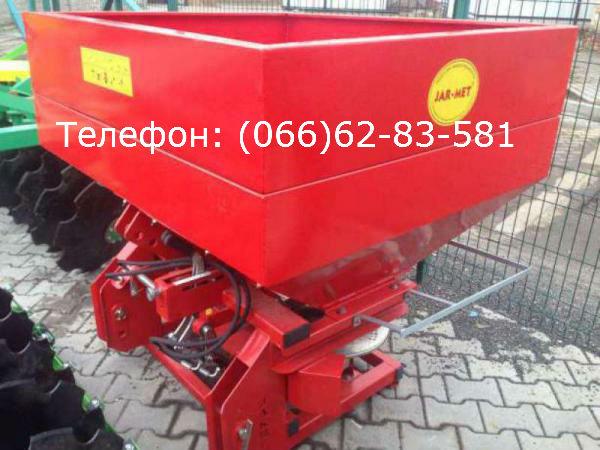

Sprayer of mineral fertilizers fertilized for 1000 l Jar-Met (18 m) watering can, watering can Jar-Met, Kherson region.

Spreader of mineral fertilizersfertilized per 1000 l Jar-Met (18 m) watering can, Jar-Met watering can for surface (continuous) application of mineral fertilizers. It can be used for applying other loose materials (fertilizer, saltpeter) in all soil and climatic zones, with the exception of areas of mountain agriculture.
The spreader is aggregated with tractors of traction class 0.9 - 1.4 (type YMZ, MTZ80/82), equipped with a power take-off shaft.

Technical description of the unit:

Model, N020/9

Spread width, 10-21 m

Number of dispersing disks, 2 pcs.

Number of dispersing blades, 4 pcs.

Tractor PTO speed, 540 rpm
(//tractor-service.com)
Hopper capacity, 1000 l.

Working speed up to 12 km/h

The required power of the tractor is 60 hp.

Sowing dose, 80-1500 kg/ha

Closing of dosing holes, hydraulically

Height of the spreader, 140 cm

Mass of the spreader, 250 kg

Thanks to the compact design and low weight, the spreaders can work with almost anytractor. Spreaders have a reliable anti-corrosion protection system
