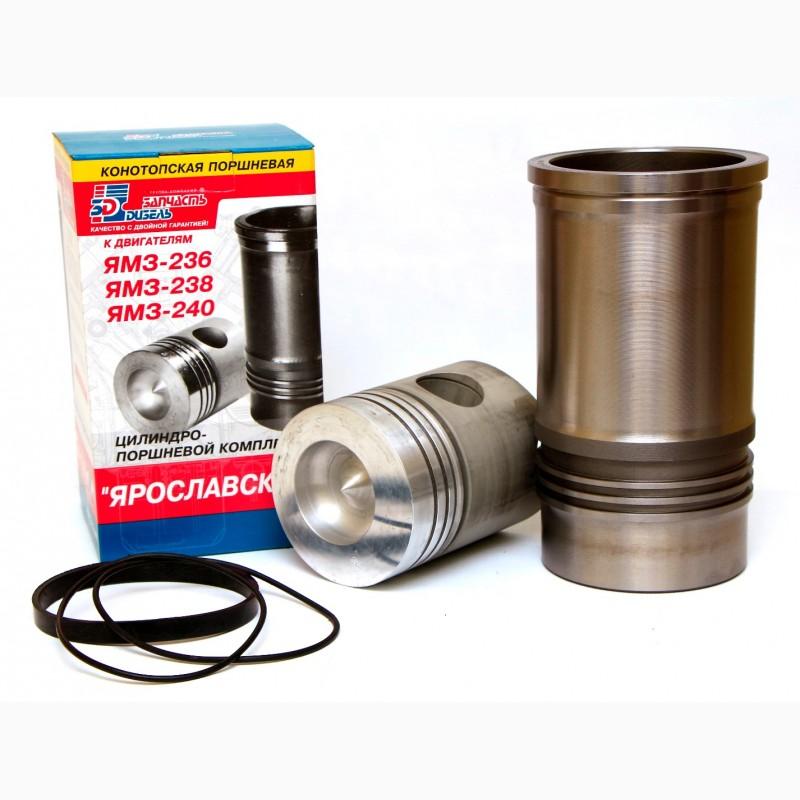

YAMZ-236 4k cylinder-piston kit (YAMZ-236 piston kit, Sleeve+Piston+RTI) Konotop, Mykolaiv region.

YAMZ-236 piston kit

Applicability:
Engines: Yamz-236M2, -236G, -236A, -236EK, -236DK, -236D, -38M2, -238 AM2, -238BM, -238ГМ2, -238ИМ2, -238KM2, -238AK, -240 BM2-1 (with common head) and their mods
Equipment: MAZ, KrAZ, ZIL, Ural, LYAZ, LAZ buses,excavator EO-33211, 43211, boats, compressor units

Composition:

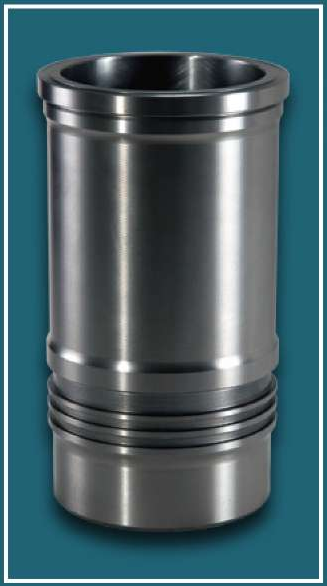

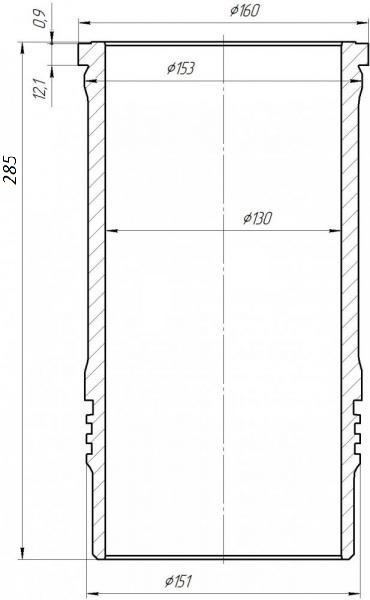

Sleeve 236.01.521.031.02.9.0.05 (YAMZ-236)

The sleeve (Ø 130.00 mm) is used for YaMZ family engines(//tractor-service.com)
Production of castings - by centrifugal method, to obtain a high-quality structure of the material and high mechanical properties. To increase wear resistance, the inner working surface is hardened to high hardness by high-frequency currents (HFC) and processed by the plateau honing method, the roundness tolerance of the hole is no more than 0.008 mm.
Material: special alloyed cast iron.
Weight: 8.3 kg

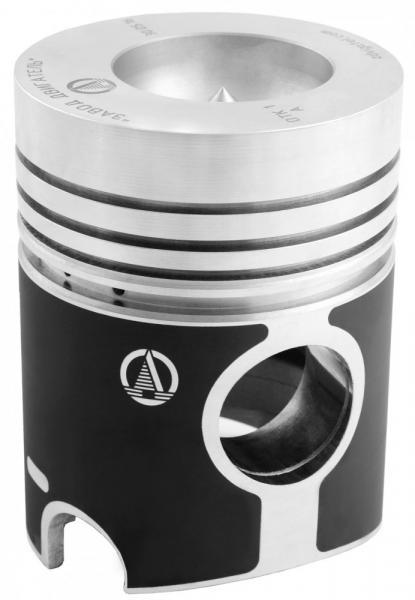

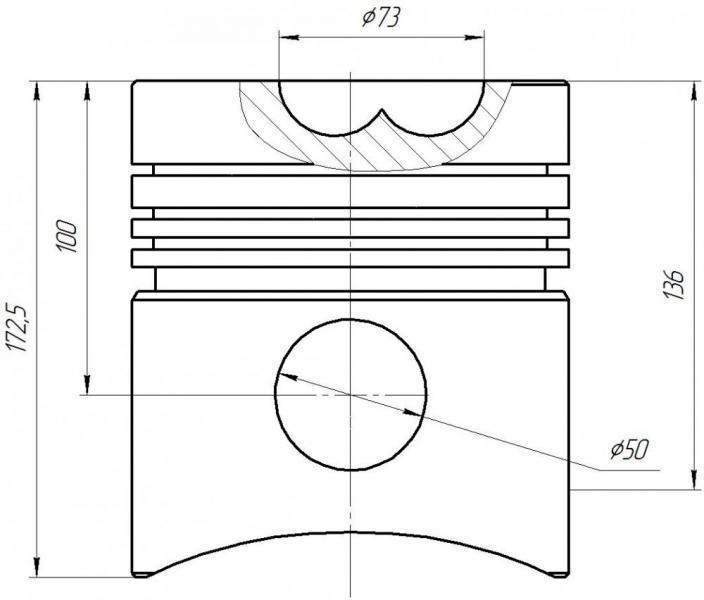

Piston 236-1004015Д
Piston 236-1004015D (piston group Ø 130.00 mm) is intended for engines of the YaMZ family.
A piston with a cutout for the oil nozzle, the bottom of the piston is flat without cutouts for the valves, the combustion chamber is toroidal with a splitter, the grooves for the compression rings have the shape of a one-sided trapezoid. Pistons without a cutout for an oil nozzle are manufactured, as well as with a flat combustion chamber without a splitter.
Material: aluminum alloy AK12M2MgN
Coating: tin or graphite-disulfide-molybdenum

Уплотнительные кольца
