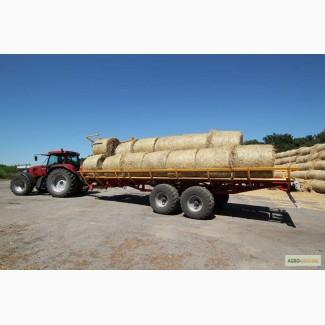

Trailer bale loader self-loading PT-24, Sumy region.

One-time transportation of 24 bales!

Technical characteristicstrailer for transporting rolls

1. Unit on a balancer suspension, semi-axle (ADR Italy)

2.Tires with a size of 600/50-22.5 (load 6 tons at 40 km/h)

3. Tow ring Ø 90 mm

4. One-circuit pneumatic braking system (possibly two-circuit)

5. Number of bales(//tractor-service.com)
bales Ø1.2-1.8 m, length 1.2 m - 24 bales weighing up to 600 kg each; 170

6. Вилочный захват для тюков

7. Electrical system 12V

8. The front wall for moving two bales at the same time is actuated by a WR 160 hydraulic motor (Italy) through chains. The chain conveyor is located in a closed niche, which completely excludes contact of the chain with the bales and damage to the threads.

9. Hydraulic cylinder for lifting the platform to facilitate unloading.

Overall dimensions LxWxH – 11 400/ 3 000/ 4 000 mm

The principle of operation of a bale trailer: picking and loading is carried out by a fork gripper, which lifts the bale onto the platform with the help of a hydraulic cylinder. The front wall moves the bale back. Unloading is carried out by the method of shifting the bales by the front wall, through the rear hydraulically opening board. The bales easily slide along the guides, keeping their shape and integrity.
