Bird feather removal machine, Kharkiv region.

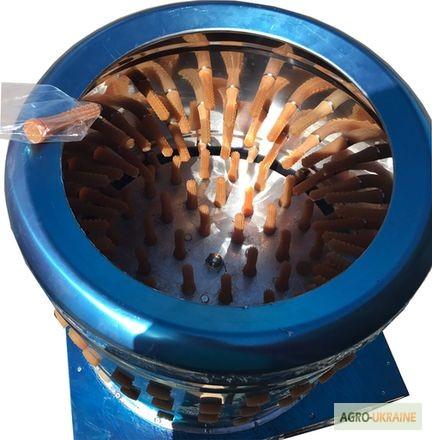

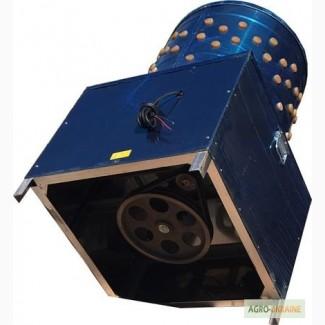

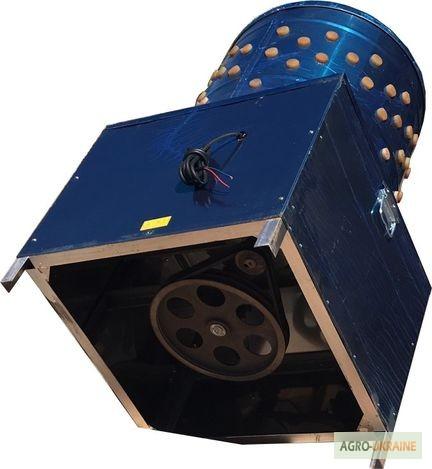

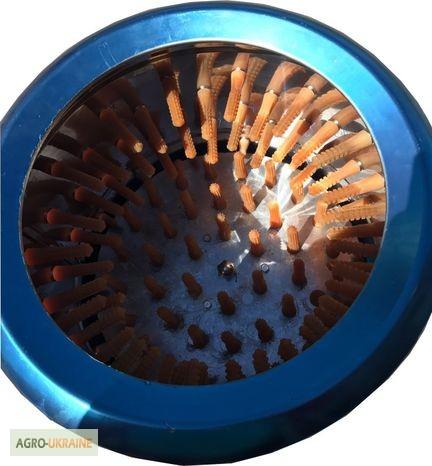

The portable, plucking machine UPS-180/360 is a universal device for wet feather removal from any kind of wild and domestic fowl. The scope of application is private households and farms, where the population ofbirds fluctuates from 100 to 10,000 heads. By mechanizing the last, most time-consuming stage of poultry breeding, total costs are significantly reduced, because UPS is serviced by one person, replacing the manual labor of 5 or more people, thereby reducing processing time. The structure is a metal frame sheathed with stainless steel, on top of which a working hopper is located. Working hopper Ø 500 mm. from stainless steel. The machine works quietly, removes the feather qualitatively and gently, without injuring the skinskin(with proper preparation of the carcass for plucking!), preserving the marketable appearance, thanks to the soft rubber fingers installed in a certain order. The engine and moving parts of the machine are hermetically sealed. Productivity up to 360 broiler carcasses per time. Загрузка 8 kg. Engine power 1.1 kW (220V). Excellent pen removal — 99-100%
Productivity: 180-360 broiler carcasses/time.
Working hopper: Ø500mm. from stainless steel
Engine power: 1.1 kW (220V)
Number of thumbs: pcs.

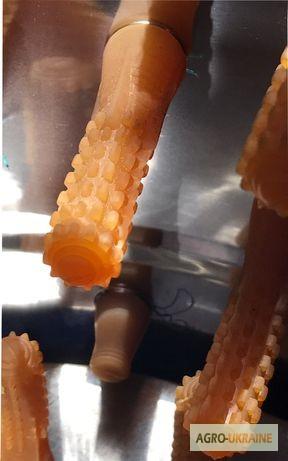

Length of the index finger (general/working): 97 / 85 mm
Diameter of the landing hole: 20 mm(//tractor-service.com)
Landing groove: 2-3mm
Tensile strength of the hammer toe: 20-25 MPa.
Shore hardness: 50 units (soft finger)
One-time loading: 8 kg.
Processing time: 10-20 seconds.
Feather removal (by broiler): 99-100%
Overall dimensions (LxWxH): 560 x 560 x 960 mm
Weight of the machine: 50 kg;
