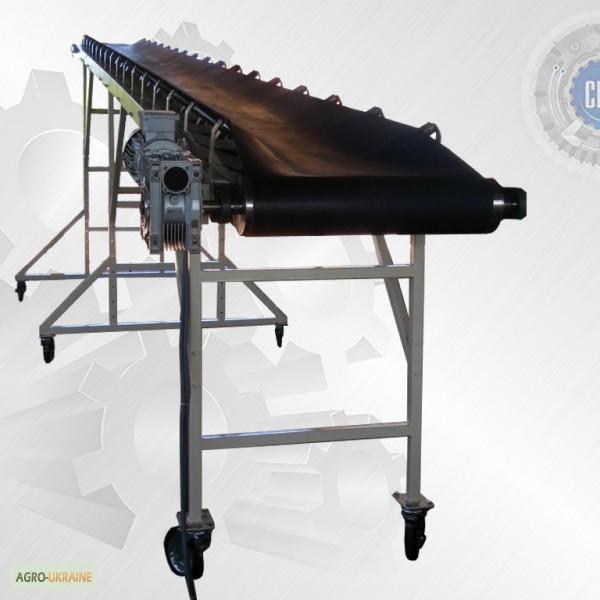

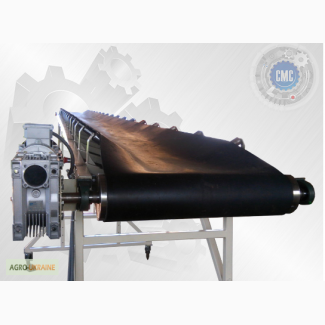

Grooved conveyor for moving bags, Poltava region.

For sale The transporter is intended for transporting bags. Productivity – 1800 bags per hour. 8.8 m and 10 m long models are available.
Technical characteristics of the 8.8 m grooved conveyor:
Parameter name Значение
1. Tape type
2. The width of the tape is 700 mm.
3. The speed of the tape is 0.5 m/s
4. The maximum load per 1 p.m. is 100 kg
5. Productivity, no more than 1,800 bags/h
6. Power of the installation, no more than 2.2 kW
7. Electrical supply
nominal voltage frequency380 V50 Hz
Technical characteristics of the 10 m grooved conveyor:
Parameter name Значение
1. Tape type
2. Tape width 700 mm(//tractor-service.com)
3. The speed of the tape is 0.5 m/s
4. The maximum load per 1 p.m. is 100 kg
5. Productivity, no more than 1,800 bags/h
6. Power of the installation, no more than 2.2 kW
7. Electrical supply
nominal voltage
Other features:
the equipment includes: frame, drive and non-drive drums, tension mechanisms;
conveyor belt brand - BKNL;
equipped with a gear motor.
Construction of grooved conveyors:
The frame is mounted on supports withwheels.
Roller supports are installed on the frame.
The conveyor belt is installed on the drive and non-drive drums.
Adjusting the tension and tension of the tape is carried out with the help of tension devices.
Electrical equipment consists of an alternating current motor-reducer and connecting wires.
