Horizontal mixer for winemaking, Kyiv

CPG side mixer
Horizontal stirrer for winemaking — It is used in winemaking for mixing mechanical inclusions in suspension.
Winemaking Stirring of mechanical inclusions in suspension.
Mixture
Gasification (SO2 and CO2)
Temperature homogenization

Principle of operation

The design of the mixer allows it to pass through a full-bore ball valve, then the blades open automatically when it is started. The agitator shaft is sealed with an end seal C St.St. EPDM.

Design and characteristics

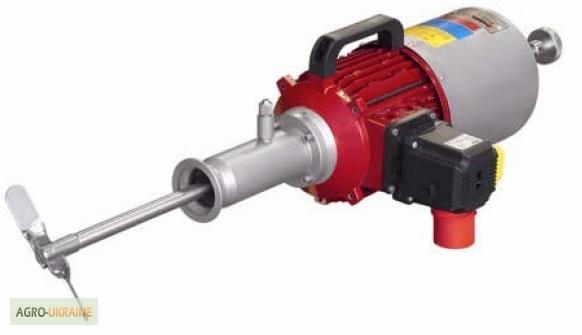

The CPG mixer is designed for installation on containers filled with product, using full-bore ball valves, i.e. without product losses and without personal equipment and tools.
Standard mixing element - folding propeller Type 12.
Electric motor 3 ph, 400 V. , 50 Hz, IP 55, 1450 rpm .
Breathing valve with manual control.(//tractor-service.com)
Standard connections: DIN 11851.

Side mixer CPG Materials

Parts in contact with the environment AISI 304
Gaskets FPM
Standard face seal C St.St., EPDM
Surface treatment Jet

Options

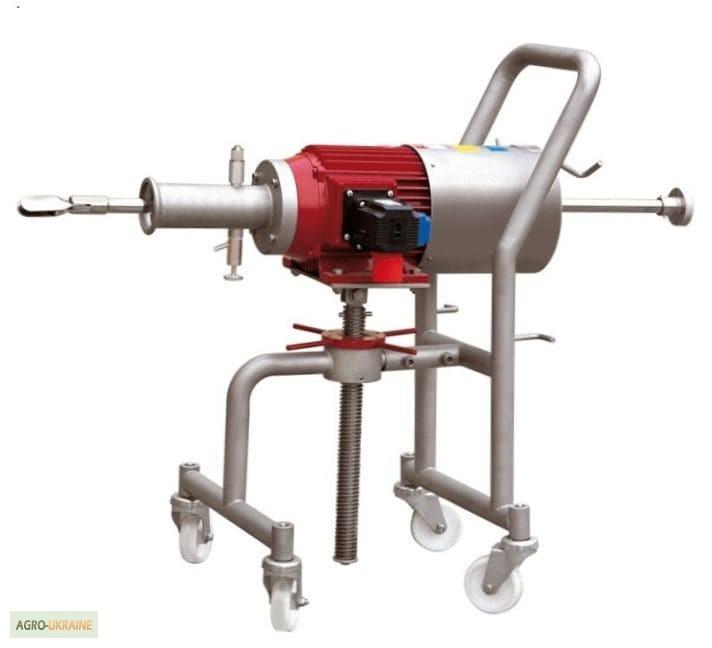

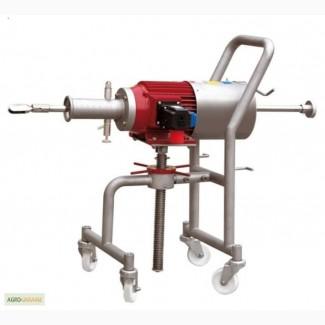

Stainless steel cart.
Product input valve, drainage and sampling crane.
Face seal SiC, SiC, FPM.
Connection to the motor with an internal thread.
Control panel and protection in accordance with the CE standard.
Shaft length to order.
Connections: FIL ISO 2853, SMS, Clamp ISO 2852, RJT BS-1864, Garolla.
