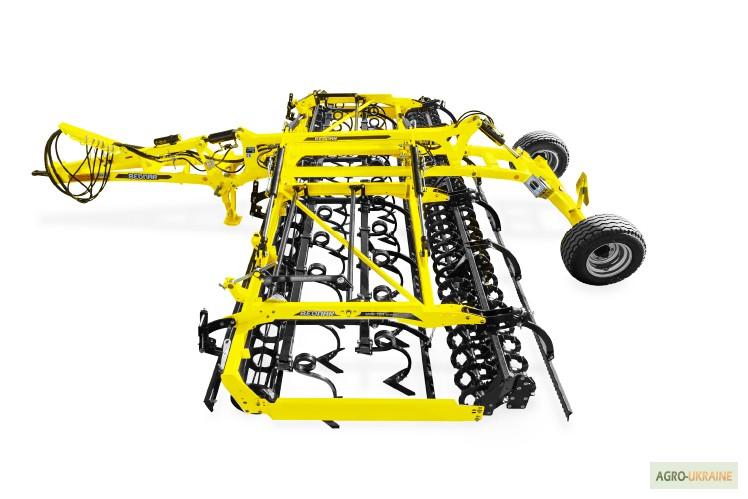

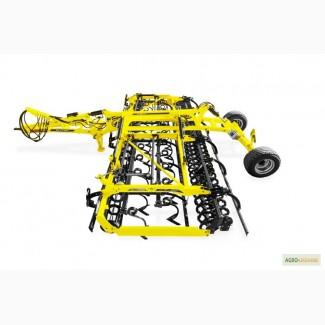

Pre-sowing compactor BEDNAR SWIFTER SO_F, Lviv region.

MAIN ADVANTAGES OF THE AGGREGATE
Excellent soil preparation for sowing in one pass
Eight working operations in one pass.
High daily productivity thanks to the working width and working speed.
High working speed up to 15 km/h.
The possibility of replacing arrow feet, a range of coulters and arrow feet.
Perfect copying of the relief surface thanks to independent installation of WaveFlex sections.
Self-cleaning two-row crosskill rollers for improved crushing and final soil compaction.
"Top quality" bearings prepared for high speeds, at which the crushing efficiency increases.
Work on turns without digging out the unit.
Hydraulic adjustment of the working depth of the sections provides an exact and identical depth across the entire width of the grip.
Transport width 3 m.
AGRONOMIC ADVANTAGES OF THE AGGREGATE
By combining several work operations into one, a reduction in soil preparation costs is achieved.
Three leveling bars will make the treated area absolutely flat.
You create an accurate and uniform seed bed for all types of plants (exact observance of the working depth over the entire width of the capture).
Thanks to the technical solution, the two-row rollers and finish rollers perfectly grind even the smallest lumps. Aggressiveness of crushing increases with increasing speedkatkov.
The unit is used for traditional processing (after plowing) or for minimization.
Thanks to the technical implementation, the unit can work at high speed in compliance with the required agrotechnical terms.(//tractor-service.com)
WORKING SECTION WITH ARROW PAWS
Arrow legs of 270 mm with an overlap are arranged in two rows, which guarantees a cut of the soil profile along the entire width of the machine. Thanks to the working angle of the paws, intensive tillage of the soil is carried out, resulting in the formation of a loosened upper layer. Each paw is fixed on a flexible stand, which achieves a "3D effect" (horizontal and vertical movement), which protects the paw from damage.
Use for - summer and autumn soil preparation, when it is necessary to loosen or mix the soil.
WORKING SECTION WITH GAMMA-FOILERS
Four rows of gamma coulters at a negative angle reliably loosen, aerate, and warm the soil without bringing wet parts to the surface. In this way, the moisture accumulated during the winter is preserved, which is important for the rapid growth of spring crops. The springing of each rack allows you to increase the working speed up to 15 km/h and save the time that is so necessary in the spring.
Use for spring soil preparation before sowing, to preserve moisture accumulated over the winter.
WORKING SECTION WITH SPRING FEET (SB-SECTION)
Spring feet, arranged in 4 rows on an S-shaped stand, guarantee high-quality processing of fields in the spring. The absence of a vertical angle of attack reduces the load on thetractor, and allows not to bring the moist lower layer of soil to the surface, which has a positive effect on the quality and speed of seedlings.
Use for –spring pre-sowing preparation that allows moisture to be preserved. Ideal for sugar beets.
SWIFTER SO 4000 F SO 5000 F SO 6000 F SO 7000 F SO 8000 F
Working width, m 4 5 6.2 7.2 8
Transport width, m 2.7 2.7 2.7 2.7 2.95
Transport length, m 7.3
Working depth*, cm 2 - 12
Number of paws 16 20 24 28 32
Number of legs (SB-section) 30 38 45 51 59
Number of gamma coulters 34 44 54 64 74
Total weight**, kg 3200 - 4000 3600 - 4700 4100 - 5700 4300 - 5700 4800 - 6100
Recommended power*, hp 120 - 150 145 - 200 155 - 215 180 - 220 210 - 230
