Tractor garden drill 1W-30/40/50/60/70 Warranty from DTZ factory, Dnipropetrovsk region.

Technical characteristics

Model 1W-30 1W-40 1W-50 1W-60 1W-70
Spring type
Drill diameter, cm 30 40 50 60 70
Drilling depth, cm 90
Drilling speed, mm/s 10-25
Productivity, pits/h 30-55
Permissible PTO speed, rear rpm, 540 rpm
The power of the aggregatedtractor, hp. 25 — 45 (1W-30 - 50) 50 — 80 (1W-60 - 70)(//tractor-service.com)
Mass, kg 218 226 254 264 279

Description

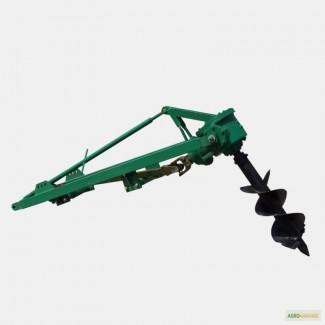

The hinged screw auger is used for fast drilling of cylindrical holes with a diameter of 30 to 70 cm and a depth of up to 2.5 m in dry and wet soils, including for planting trees, for installing columns and supports, for drainage systems and wells, for engineering and hydrogeological work, during construction and landscaping. The drill is installed on the rear 3-point suspension system and is driven by the tractor's power take-off shaft. Drilling is performed with quick-change two-way screws.

Our DTZ plant has been operating on the Ukrainian market for more than 15 years. Over these almost two decades, our company has won the trust of consumers and the respect of competitors thanks to comfortable price levels, short delivery times and high quality products that easily compete with imported counterparts. We are a reliablesupplier of agricultural machinery, motorcycle machinery, garden and park machinery.

The products of our factory comply with the most modern industry standards and regulations, meet the requirements of rapidly developing technologies and have an attractive modern design.

For example,mini tractors under the brand DTZ, DONGFENG, JINMA, DW, XINGTAI can be found in almost every farm. Farmers from all regions of Ukraine could appreciate their quality and reliability.
