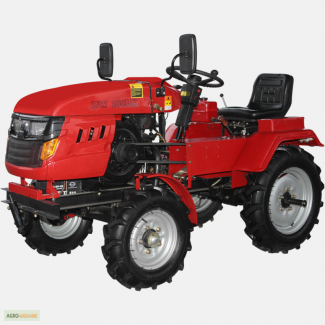

Mini-tractor Motor tractor DW 160LX Warranty and service from DTZ factory, Dnipropetrovsk region.

Design features of DW 160LX:

additional hydraulic cylinder for front linkage;
adjustable (extendable) front beam;
elongated semi-axles of rearwheels (each 330 mm. / diameter 49 mm.);
separate pump and distributor;
distributor with floating mode;
direct-acting gearbox lever;
separate unlocked brake pedals + parking brake;
PPC combined type (3+1)x2;
additional lever for manual adjustment of fuel supply;
convenient location of control systems;
drum-type rear brakes.

Complete set:

comfortable non-adjustable seat, reclining on rubber cushions;
oil pressure indicator, coolant temperature indicator, engine hour counter, electronic voltmeter;
sound signal, side lights, high/low beam, turn signals;
mass switch;
emergency alarm;
hydraulic system for rear linkage and front (frontal) linkage 2 hydraulic cylinders and a set of hydraulic hoses;
Distributor with 1st control lever (raising, lowering, floating modes)
rear additional headlight

Technical characteristics DW 160LX

Engine model JD16
Engine power, hp (kW) 15 (11.03)
Wheel formula 4x2
Engine type diesel, 4-stroke, with direct injection, without turbocharging
The number and arrangement of cylinders 1, horizontal
Engine starting system electric starter, manual starter
Cooling system water cooling radiator type
Engine volume, cm3 995
Cylinder diameter / piston stroke, mm 90 / 110
Nominal engine fuel consumption, g/kW*h ≤ 249
Nominal revolutions of the crankshaft of the engine, rpm 2400
Nominal tractive effort, kN 3.1(//tractor-service.com)
The type of oil in the engine is mineral or semi-synthetic for diesel engines.
Nominal oil consumption in the engine, g/kW*h 1.5
Gear box (KP) (3+1)x2
Oil type in gearbox and gearbox Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90
(transmission)
The locking of the rear differential is not blocked
Dry clutch, 2-disc,
permanently closed type
The main gear is wedge-belted.
Steering wheel drive -
Mechanical steering control
Drum brake
Power take-off shaft (PTO) of gearbox gears with the help of an intermediate gearbox or clutch pulley
Revolutions of the power take-off shaft (PTO), rpm 1180
The maximum load capacity of the hinged mechanism, kg 130
Minimum clearance, mm 250
Wheelbase, mm 1180
Wheel track, mm front step adjustment
950/1000/1050/1100/1150/1200
smooth rear adjustment
from 880 to 1320
Sizefront tires 5.00-12 Christmas tree
rear 6.50-16 herringbone.
Minimum radius
turning, m without brakes 2.3
with brakes 1.8
Speed of movement, km/h forward 2.24-22.78
back 1.72-6.97
The volume of the fuel tank, l 9
Engine crankcase volume, l 2.0
The volume of the gear case and gearbox, l 5.0
Engine cooling system volume, l 2.8
Overall dimensions (L x W x H), mm 2200x1280x1330
Curb weight, kg 486
