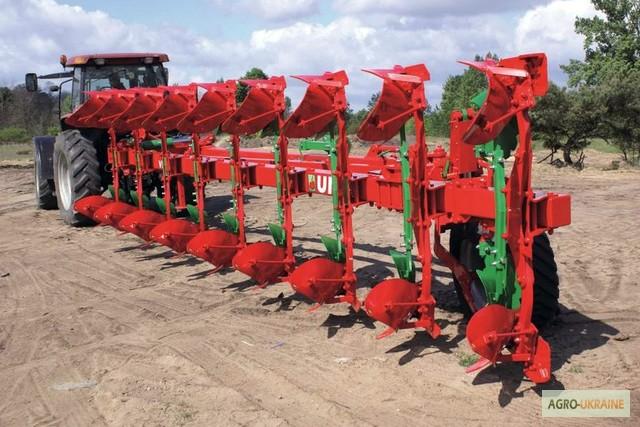

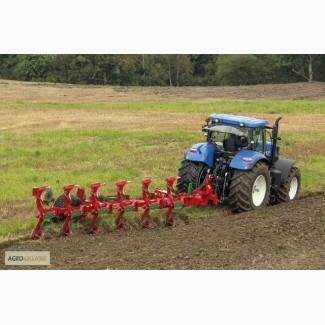

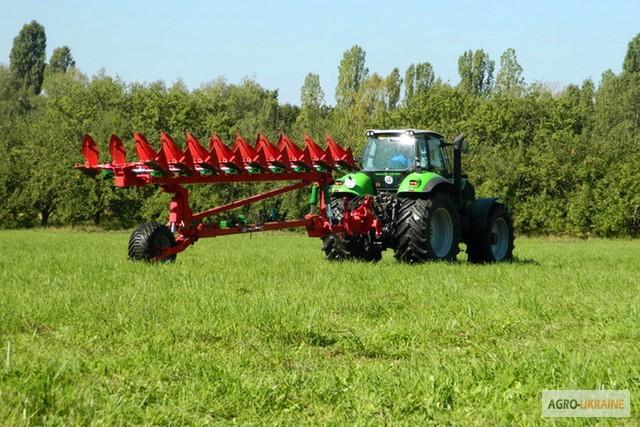

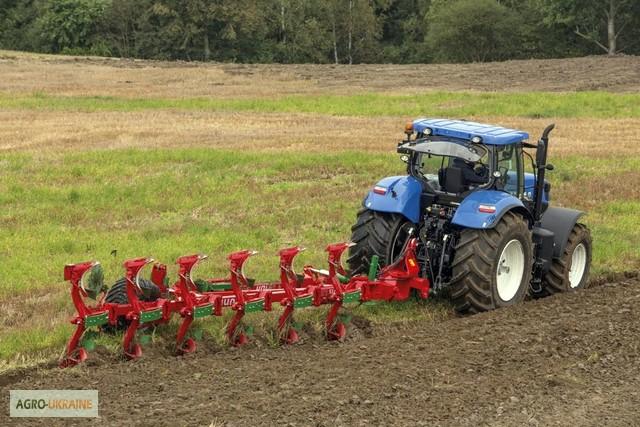

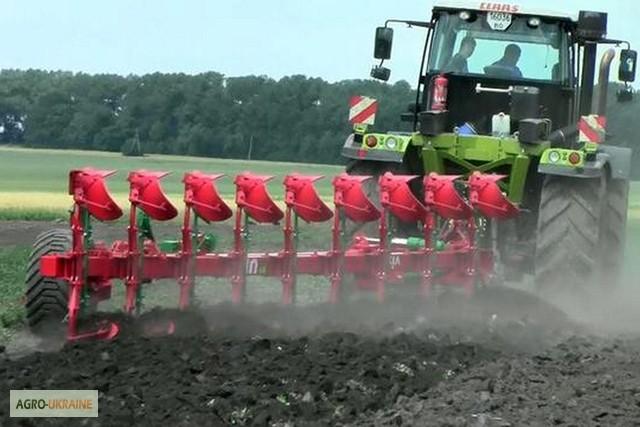

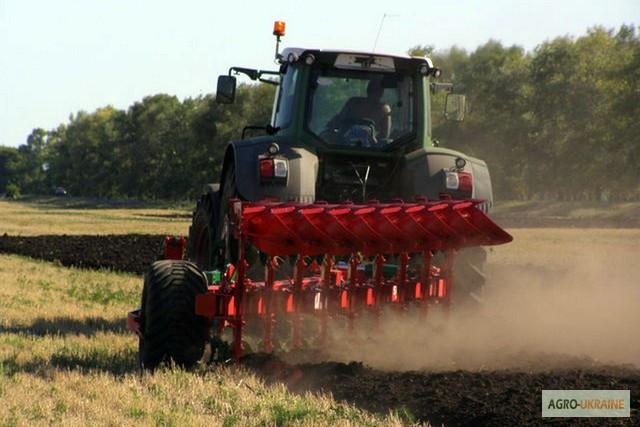

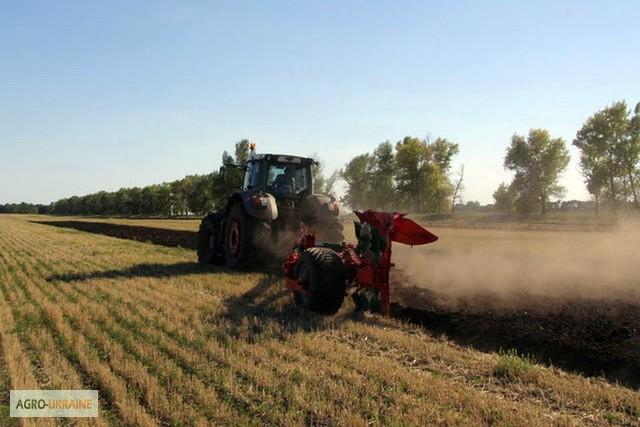

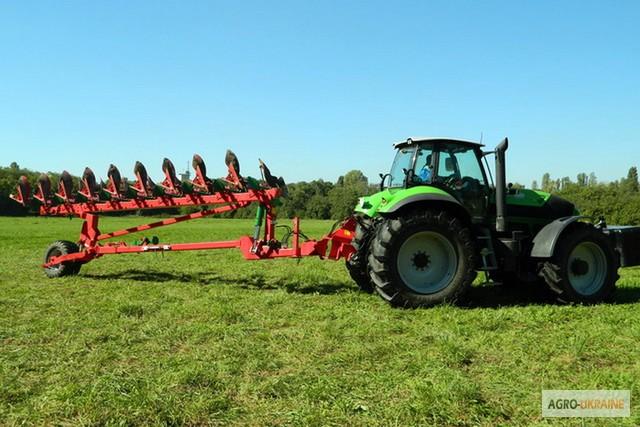

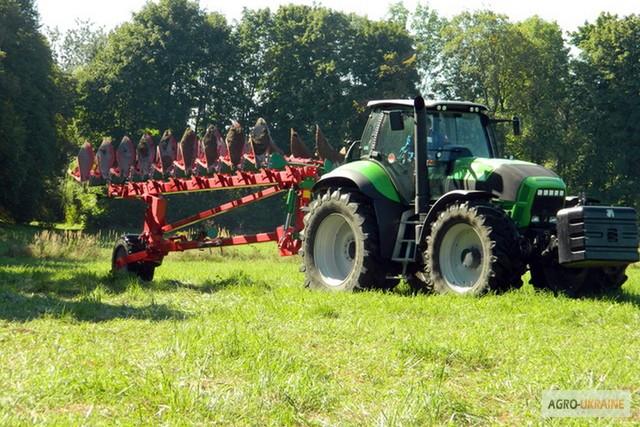

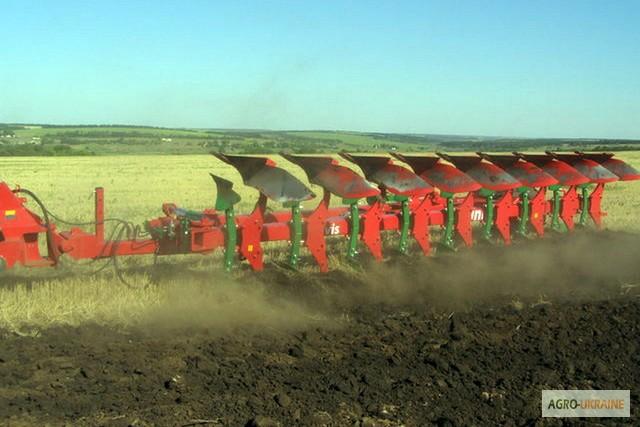

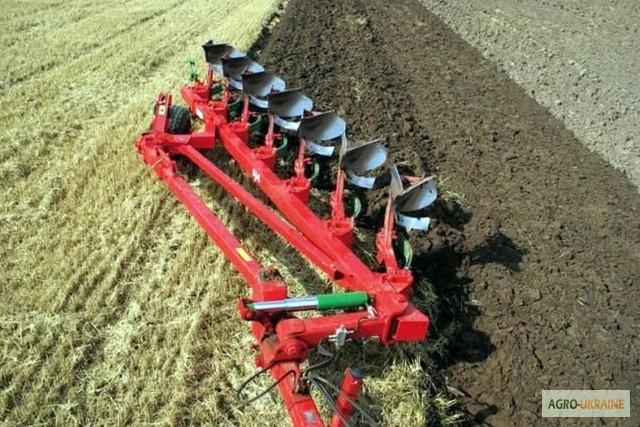

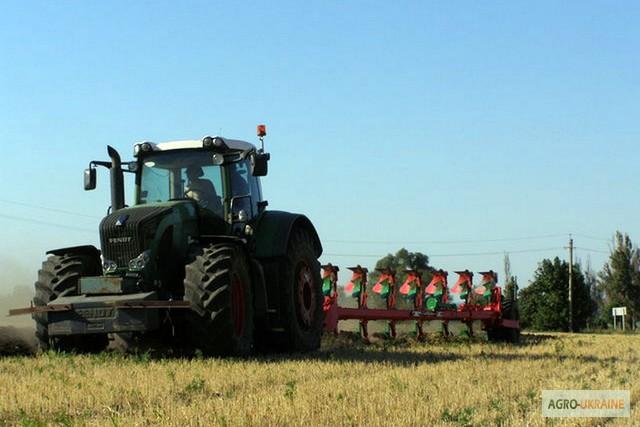

Unia VIS XM semi-mounted reversible plow, Volyn region.

UNIA VIS XM - 8-9body plows on frame 180x180, equipped with MX housings with low resistance during plowing, working width up to 45 cm, as well as protection systems. A strong frame with a special design and a cross section of 180x180 is made of hardened steel of increased strength and stability, which makes the work of the plow durable.

The plow rotation system is supported by two hydraulic cylinders.

Koleso support-transport 550 / 45x22.5.

The possibility of installing a skimmer and adding disks to each section of the plow.

2disk knives ø480mm with screw protection.

2 disc knives ø480mm with spring protection (in version S).

Hydraulic beam for a plow.

Pre-ploughs, which are intended for a large amount of crop residues (additional equipment).

Advantages of the plow:
-reliable construction;
-minimum plowing resistance;
-quality cover of harvest residues;
- effective protection of working bodies;(//tractor-service.com)
- turnover stability;
- simplicity in setting.

Standard equipment:
- axle suspensions ø70-965 / ø36 mm.;
-durable 140 x 140 x 8 mm (VIS XM 5 + 1) or frame 180 x 180 x 8 mm (VIS XM 6 + 1, 7 + 1, 8 + 1);
- plow body XM with silver;
- screw for fastening (M16 x 81 mm);
-non-stop spring protection (7 spring leaves) (S);
-variable stepwise regulation of the width of the arch: 35, 40 or 45 cm.;
- transport wheel 550/45 x 22.5; 169
-дисковый нож ø480 мм с винтовой или пружинной защитой;
-расстояние между корпусами 90 см .;
-clearance under the frame is 82.5 cm, or 80 cm (in the S version).

Features:
Type 5+1 S 5+1 6+1 S 6+1 7+1 S 7+1 8+1 S 8+1
Mass (kg) 2900 3260 3150 3570 3400 3880 3600 4140
Required power (hp) 160÷180 160÷180 180÷210 180÷210 210÷250 220÷260 250÷310 250÷320
