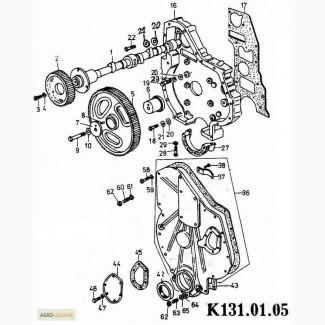

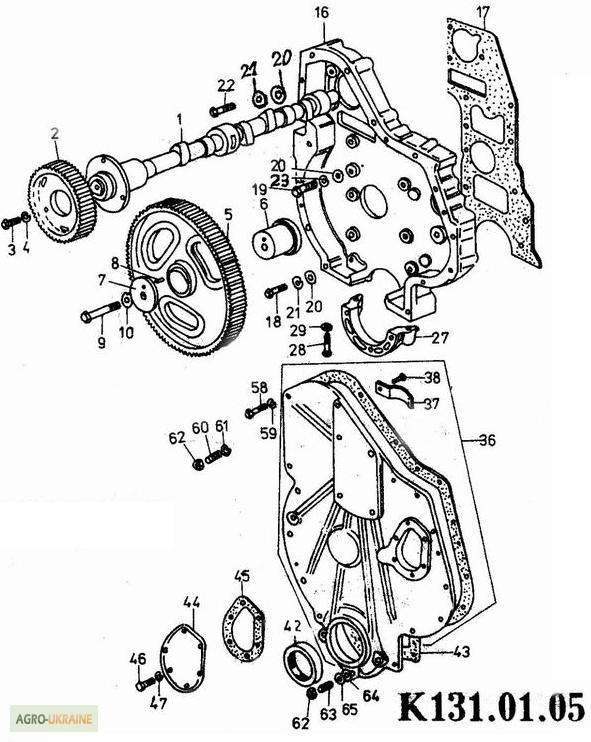

Distributive transmission for a D2500k engine for a Balkankar loader, Kharkiv region.

Position no.
Catalog No.
positional number
Name
1
6 471392 4566693382
В31415262
Distribution shaft
2
6 421743 4566692397
31164324
Gear
3
6 230961

Bolt A1 M8x20-8.8 BDS 1232-86/fos.
4
6 205035

Washer 2-8L BDS 833-82/Zn
5
6 402595 4566693583
31164362
Intermediate gear
6
6 402808 4566692540
33424403
Here is the intermediate gear
7
6 432990 4566693080
33153103
Washer
8
6 486418
В32451138
Pin
9
6 437165 4566692022
32166105
Bolt
10
6 431423 4566692567
31733504
Anti-slip plate
16
6 446128 4566693744
В37161503
Crankcase of distribution gear
16
6 480875 4566693762
В37161481
Crankcase of distribution gear
16
6 460588 4566693734
В37161502
Crankcase of distribution gear
17
6 432253 4566692965
36814119
Sealing
18
6 231770

Bolt A1 M8x45-8.8 BDS 1232-86/fos.
19
6 230961

Bolt A1 M8x20-8.8 BDS 1232-86/fos.
20
6 445521 4566693076
33114118
Washer
21
6 433008 4566693099
В33156231
Safety washer
22
6 433008 4566693099
В33156231
Bolt
23
6 237654(//tractor-service.com)

Washer 2-8L BDS 833-82/fos.
27
6 434230 4566692310
В37354312
Cover of distribution gear, lower
28
6 236325

Bolt A1 M8x35-8.8 BDS 1232-86/fos.
29
6 205035

Washer 2-8L BDS 833-82/Zn
36
7 480973 4566693763
В41131025
The cover of the distribution gear, lower
37
6 448111 4566693915
36616142
Support spring
38
6 232995

Rivet 3x8 BDS 32-80/fos.
42
6 500212
В2415379
Edge sealing
43
6 439620 4566694235
C36813141
Sealing
44
6 479107 4566693764
В37556141
Control cover
45
6 432280 4566692920
36862512
Sealing
46
6 230955

Bolt A1 M6x16-5.8 BDS 1230-85/fos.
47
6 202846

Washer AM6 BDS 206-78/phos.
58
6 236277

Bolt A1 M6x20-6.8 BDS 1230-85/fos.
59
6 205020

Washer 2-6L BDS 833-82/Zn
60
6 448082 4566693515
В32513034
Pin
61
6 205035

Washer 2-8L BDS 833-82/Cd
62
6 224106

Nut M8-8 BDS 744-83/fos.
63
6 437587 4566693179
В32513033
Pin
64
6 240418

Ring I I A8x14 Al 99.5 BDS 3609-73
65
6 205035

Washer 2-8L BDS 833-82/Zn
