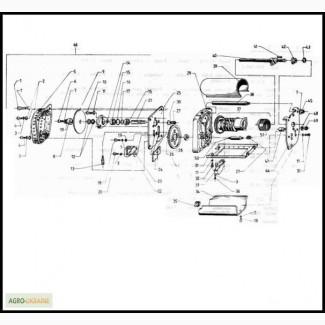

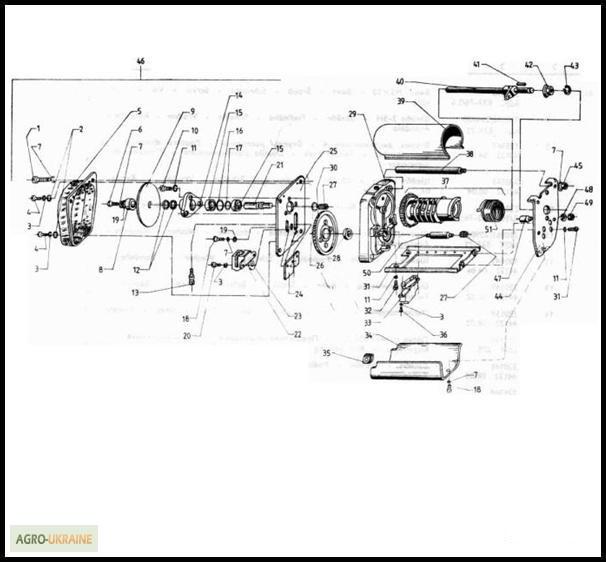

Electronic equipment command controller for loader Balkancar EV 687, Kharkiv region.

Position no.
Catalog No.
Name
Pieces
ELECTRICAL EQUIPMENT Command controller

111816/121504/ 44124 00.00
Command controller S 730 s 503
1
1
216991 BDS 832-76/5,6
Screw II M5x20
4
2
215822/29852/ BDS 206-78
Washer AM3
3
3
215559/209861/ BDS 833-71
Washer 2-3H
15
4
214921 BDS 832-76/5,6
Screw M3x8
3
5
320147 44122 06.01
Cover
1
6
200460 BDS 832-76/5,6
Screw M5x10
1
7
210866/214020 BDS 833-71
Washer 2-5H
1
8
125567 44122 04.01
Spacer sleeve 4
1
9
320163 44122 08.04
Washer
1
10
220466 BDS 832-76/5,6
Screw M4x10
3
11
210865/209862 BDS 833-71
Washer 2-4H
7
12
320143 44122 04.06
Washer
2
13
320149 44122 06.02
Bolt
1
14
320159 44122 08.02
Nest
1
15
217395 DIN 625
Ball bearing 603-2Z
2
16
320161 44122 08.03
Washer
1
17
221369 BDS 2170-77
Ring A22
1
18
216806 BDS 832-76/5,6
Screw M5x8
3
19
208089/212094 BDS 206-78
Washer AM5
2
20
204649 BDS 832-76/6,6
Screw M3x12
2
21
320157 44122 08.01
Val
1
22
125840 44122 03.00
Magnet
1
23
320151 44122 06.03
Bushing
2
24
320153 44122 06.04
Plank
1
25
320155 44122 07.00(//tractor-service.com)
The basis
1
26
211684 BDS 2170-77
Ring B8
1
27
125841 44122 01.05
Gear 1
2
28
219431 GFR
Needle bearing NK-10x10x9
2
29
125631 44122 02.00
Basis 1
1
30
200543 44122 05.00
Gear 2
1
31
320165 44122 01.01
Chassis
1
32
222397/222398 832-76/5,6
Screw II M4x8-6g
4
33
128025 44034 00.00
Instantaneous switch, type S 800a
5
34
320137 44117 01.01
Top cover
1
35
158531 44117 01.07
Sealing
2
36
213908 BDS 832-76/5,6
Screw II M3x6-6g
10
37
320169 44124 02.00
Val
1
38
320139 44117 01.03
Pin
2
39
320141 44117 01.04
Lower cover
1
40
266040 44117 11.01
Shaft
1
41
207525 BDS 3389-73
Key B3x3x14
1
42
320167 44124 01.15
Pipe B F10x11.6 BDS 4894-73
1
43
221333 BDS 2170-77
Ring B10
2
44
264402 44117 03.00
Basis 2
1
45
215568/215569 BDS 744-72
Nut I M5-6H
4
46
320145 44122 06.00
Time delay device
1
47
126472 44117 03.01
Special bolt M6
1
48
208981 BDS 833-71
Washer 2-6H
1
49
213659 BDS 1250-71/5
Nut I M6-6H
1
50
125637 44117 05.01
Val
1
51
125569 44117 12.01
Spring
1
