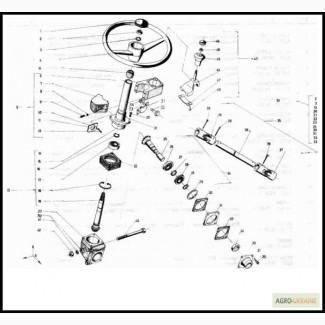

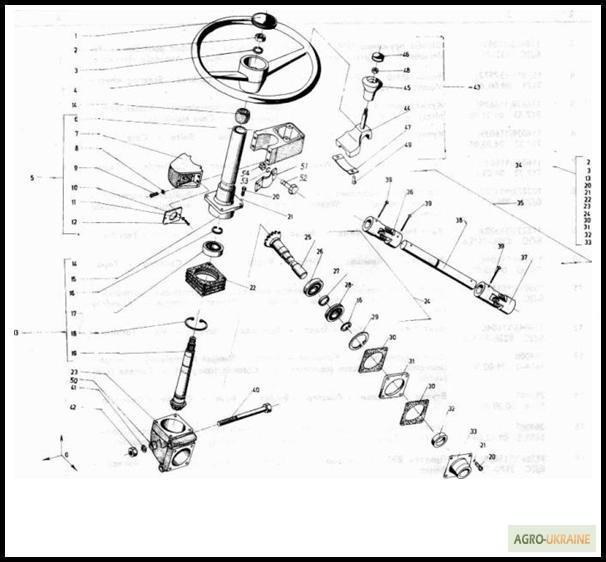

Control system for loader Balkancar EB 687, Kharkiv region.

Position no.
Catalog No.
Name
Pieces

CONTROL SYSTEM

121013 687.33 06.00.00
Management system
1
1
123120/123121/ 7003 00.02.00
Cover (assembled)
1
2
118851/118852/ BDS 1262-72/8
Nut M18x1.5-6H
1
3
118853/118854/ BDS 833-71
Spring washer 18N
1
4
157971/157972/ 8171 00.00.00
Steering wheelwheel F360
1
5
116678/116679/ 717.33 03.04.00
Box (complete)
1
6
116038/116039/ 717.33 4.03.01
Box
1
7
116040/116041/ 717.33 04.03.02
Cover
1
8
103272/103273/ BDS 206-73
Washer normal NM6
4
9
115222/115223/ BDS 8226-71/5,6
Screw M6x22
4
10
116043/116044/ 717.33 03.04.03
Cover
1
11
103012/101691/ BDS 206-73
Washer normal НМ4
1
12
116045/116046/ BDS 8226-70/5,6
Screw M4x10
2
13
264008 5654-2 01.00.00
Column (assembled)
1
14
255761 5665 00.00.03
Bushing
1
15
264009 5654.2 01.02.00
Cover (assembled)
1
16
115862/115863/ BDS 2170-73
Ring B30
2
17
209671 GOST 7242-70
Bearing 60206
2
18
109163/109164/ BDS 2170-63
Ring A62
1
19
264010 5654.2 01.01.00
Shaft with gears
1
20
_ BDS 1232-72/5,6
Bolt I M8x22
8
21
103264/103265/ BDS 833-71
Spring washer 8H
8
22
126445 5678 00.00.05
Sealing
4
23
126442 5678 00.00.01
Carter(//tractor-service.com)
1
24
264371 5654.22 02.00.00
Shaft with gears (assembled)
1
25
264011 5654.22 02.00.01
Shaft with gears
1
26
205981 BDS 4843-72
Bearing 206
1
27
126449 5678 02.00.02
Spacer sleeve
1
28
206012 GOST 2893-73
Bearing 50206
1
29
_ BDS 4889-68
Spring washer, safety 62
1
30
126443 5678 00.00.03
Sealing
2
31
126444 5678 00.00.04
Cover
1
32
219410 BDS 9954-73
Sealing A28x52
1
33
116127 5678 00.00.02
Cover
1
34
129237/129238/ 5654.22 00.00.00
Steering gear
1
35
129239/129240/ 5746-41 00.00.00
Rod (assembled)
1
36
126706 5748 00.00.00
Cardan clutch
1
37
126707 5749 00.00.00
Cardan clutch with splines
1
38
264012 5746.41 00.00.01
Rod
1
39
210373 BDS 3954-70
Pin 10x55
3
40
212986/212987/ BDS 2662-72/8.8
Bolt I M14x120-6g
3
41
109317/109318/ BDS 833-71
Spring washer 14T
3
42
118436/118437/ BDS 744-72
Nut M14-6H
3
43
123985/123986/ 7003 00.03.00
Handle (assembled)
1
44
264013 7003 00.03.01.00
Foundation (as a whole)
1
45
264014 7003 00.03.02.00
Handle
1
46
264015 7003 00.03.01
Cover
1
47
264016 7003 00.03.02
Bracket
1
48
108612/108613/ BDS 1269-73/5
Nut M8
1
