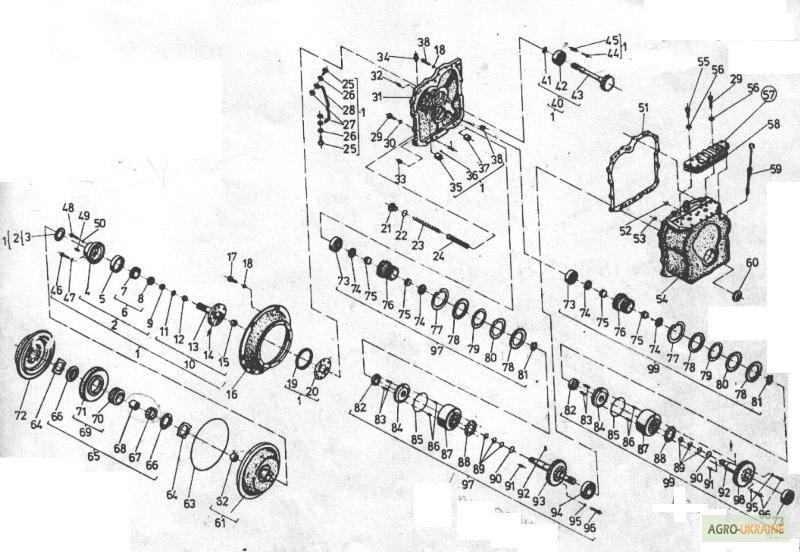

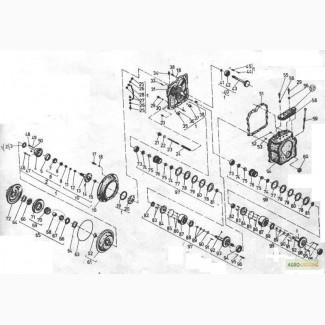

Hydrodynamic transmission 6860 for loaders DV 1784, DV 1786, DV 1788, DV 1792, Kharkiv region.

Position number
Catalog No.
Name

6860 00.00.00
Hydrodynamic transmission
1
68 600 100.00
Intermediate plate (assembled)
2
4844 00 00.Sp (KtM 1752)
Gearpump
3
BDS 9954-83
Seal B65x85x10-3
4
4844 00.02
Body
5
4844 00.01
Toothed crown
6
4844 01.00
Gear (assembled)
7
4844 01.02
Gear
8
4844 01.01
Sleeve
9
TGL 11553
Radial needle bearing K42x47x17
10
6855 01.02.00.Cn
Here (as a whole)
11
6855 01.02.03
Sleeve
12
TGL 11553
Needle bearing K28x33x13
13
6855 01.02.01
Here
14
6844 02.02.04
Screw
15
6855 01.02.02
Sleeve
16
6855 00.00.02
Flange
17
BDS 1230-85
Bolt I M12x35-8.8
18
BDS 833-82
Washer 2-12H
19
6855 01.00.06
Sealing
20
6855 01.00.07
Sealing
21
6844.2 00.00.06
Traffic jam
22
BDS 7947-85
"O" ring 2-30x3-3
23
6855 00.00.03
Spacer spiral
24
6855 12.00.00.Cn
Body (assembled)
25
9156 00.00.16
Bolt
26
BDS 3609-73
Ring A14x18
27
BDS 3609-73
Ring A12x16
28
6860 01.01.00.Cn
Pipe (assembled)
29
BDS 2171-83
Screw I M10x35-8.8
30
BDS 833-82
Washer 2-10H
31
6860 01.00.01
Intermediate plate
32
BDS 2527-71
Plug II con. 1/2"
33
BDS 2527-71
Traffic jam II com. 1/4"
34
6844 20.00-01
Body
35
6855 01.00.03
Sleeve
36
BDS 4855-75
Ball 4MM II
37
6855 01.00.02
Sleeve
38
BDS 1230-85
Bolt I Ml 2x80-8.8
39
6860 00.00.05
Pin cylindrical
40
6855 01.01.00Cn
Input shaft (assembled)
41
BDS 2170-77
VZO ring
42
TGL 2981
Ball bearing 6406 30x90x23
43
6855 01.01.01
Input shaft
44
BDS 1359-83
Screw H6x10-5.6
45
6860 01.00.02
Plank
46
BDS 1230-85
Bolt 1 M8x50-8.8
47
6860 01 00.0-4
Ring
48
BDS 1230-85
Bolt M6x50-8.8
49
68 440 100.14
Pin
50
BDS 3609-73
Ring1 A6x10
51
6860 00.00.02
Sealing(//tractor-service.com)
52
BDS 7947-85
"O''-ring 2-9x3-3
53
BDS 7947-85
"0" ring 2-11x3-3
54
6860 00.00.01
Body
55
BDS 2171-83
Vyu I M10x50-8.8
56
BDS 3609-73
ring I A10x14
57
5534 (KtM 1762)
Distributor
58
6860 00.00.04
Sealing
59
6855 10.00.00
Mosloukazatel (in s6or)
60
BDS 9954-83
Sealing A42x72x10-3
61
6855 06.00.00 Sp.
Workingwheel (assembled)
62
6855 06.01.00
Flange
63
6844 03.00.05
"O''-ring
64
6844 00.00.09
Support washer
65
6855 08.00.00.Cn
Guide mechanism (assembled)
66
6855 08.00.01
Support ring
67
KtM 1007
Mechanism of free movement
68
6855 08.00.02
Bushing
69
6844 05.01.00
Guide mechanism with sleeve
70
68 440 501.02
Bushings
71
6844 05.01.01
Guide mechanism
72
6844.2 32.00.00
Turbine wheel (assembled)
73
TGL 2981
Ball bearing 6307-35х80х21
74
6855 02.00.09
Sleeve
75
TGL 11553
Bearing K 40x45x17
76
6855 02.00.08
Gear
77
BDS 2170-77
Ring A135
78
68 550 200.07
Disk
79
KtM 1942
Sintering disc
80
6855 02.00.06
Disc
81
BDS 2170-77
Ring B40
82
6855 02.00.12
Washer
83
6844 01.00.07
Spring
84
6855 02.01.00 Sp.
Piston (assembled)
85
BDS 7974-85
"O''-ring 2-122x3-3
86
6865 04.00.02
Glass
87
686S.1.01.00.01
Glass
88
6855 02.00.03
Sealing
89
6855 02.00.10
Ring
90
BDS 7947-85
"O''-ring 2-34x3-3
91
6825 02.00.11
Traffic jam
92
BDS 1980-77
Cylindrical pin
93
6860.1 01.00.02
Output shaft
94
TGL 2981
Ball bearing 6212-60х110х22
95
BDS 833-82
Washer 2 10H
96
BDS 2171-83
Screw I M10x25-8.8
97
6860.1 01.00.00
Output shaft (assembled)
98
6865 04.01.000
Shaft with flange (assembled)
99
680.1 02.00 00 Sp
Intermediate shaft (assembled)
100
BDS 2171-83
Screw 1 M8x25-6
101
6855 07.00.01
Hub
102
6855 06.00.04
Ring
103
6844 01.00.13
Sealing
104
6860 06.00.03
Stupitsa
