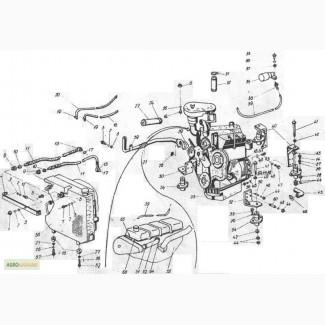

Engine suspension for loaders DV 1784, DV 1786, DV 1788, DV 1792, Kharkiv region.

Number of Positions
Catalog No.
Name
-
1784.33.20 04.00.00
Engine suspension
1
BDS 744-83
Nut M8-L
2
BDS 833-82
Washer 2-8H
3
BDS 14494-78
Washer M8
4
1784 33 07.00.17-01
Support
5
BDS 1230-85
Bolt .Px20-S.6
6
1784.33 07.00.19
Shock absorber
7
BDS 1230-85 .4
Bolt I M8.'25-5.6
8
1784.33 07.00.01
Bracket
8
1790.33.20 01.00.05
Bracket
8
1790.33.20 01.00.05-01
Bracket
9
ON-04 55874-71
Ring 11 12
10
ON-04 55874-71
Union nut II E12
11
ON-04 51484-83
Flexible connection BTE-10Гх18-Нцх12-1200/0.63
12
BDS 1230-85
Bolt 1 M8x14-1.6
13
1784.33.20 04.00.01
Reduction plug
14
ЛЦСС 1232-86
Bolt IM10x35-5.6
15
1784.33 07.00.02
Gasket sleeve
15
1784.33 07.00.02-01
Gasket bushing
15
1784.33 07.00.02-02
Gasket bushing
15
1784.33 07.00.02-03
Gasket bushing
16
BDS 6735-79
Hose
17
BDS 3609-73
Ring 1 A12x16
18
1737.2 17.00.03
Locking bar
19
BDS 8648-8S
Bracket A12-16
20
BDS 6735-79
Hose L=1060-6-0.6-8.00
21
1784.33 07.07.00
Exhaust pipe (assembled)
22
1790.33
Outlet hose
14
BDS 8648-8S
Bracket A58.5-63
26
BDS 833-82
Puck 2-1 ON
27
BDS 14494-78
Washer M10
28
BDS 744-83
Nut M10
29
1784.33 07.00.05
Sealing(//tractor-service.com)
30
1784.33 07.02.00
Bracket left (assembled)
31
BDS 8848-75
Bracket A72-74.5
32

Hose
34
KtM 2071
Indicator
34
KtM 2150
Indicator
34
RBXOO-2251
Indicator
36
1784.33.20 04.00.05
Tip
39

Hose
40
1784.33.20 04.01.00
Bracket (assembled)
41
BDS 2ЈЈ1-71
Bolt I M12>i30-S.6
42
BDS 14494-78
Washer M12
43
1784.33 07.00.16
Adjusting washer
44
BDS 1269-73
Nut M12
45
1784.33 07.00.04
Inlet hose
46
BDS 8648-8S
Bracket 50.5-57
47
BDS 1323-86
Bolt I Ml2x2S-S.6
48
BDS 833-82
Washer 2-12H
49
1784.33 07.00.03
Washer
50
1733.33.20 01.00.07
Pin
52
1784.33 07.03.00
Right bracket (assembled)
53
BDS 2171-83
Screw 1 M10x35-8.8
54
1790.33
Shock absorber (assembled)
55
KtM 1188
Engine with fuel injectionpump "Motorpal"
56
BDS 1232-86
Bot
57
BDS 1232-86
Bolt 1 M10x45-5.6
58
1790.33.20 01.04.00
Radiator
59
1784.33 07.00.20
Holder
60
1784.33 07,00.21
Pin
61
BDS 1230-82
Bolt I M6x2S-L.6
63
BDS 1232-81
Bot. I M12x5.5-L.6
64
BDS 8648-85
Bracket A63.5-70
65
BDS 1230-85
Bolt I M10x25-5.6
66
1784.33.20 04.00.031
Bracket
67
1784.33.20 04.00.04
Planka
