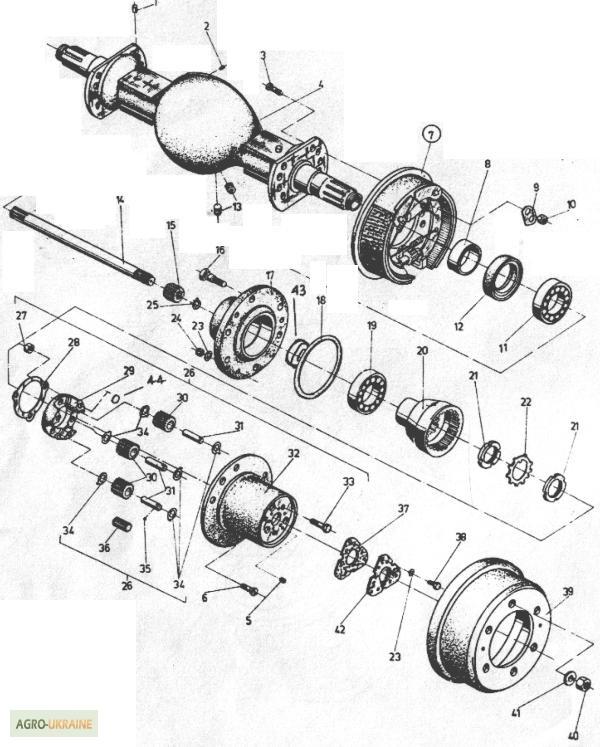

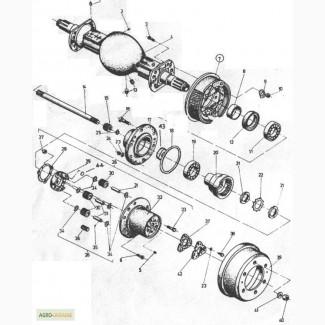

Spare parts for truck loaders DV 1784, DV 1786, DV 1788, DV 1792. Beam with gearboxes, Kharkiv region region.

Position number
Catalog No.
Name
-
6198.10 01.00.00-05
Beam with gearboxes
1
6198 01.00.12
Pin
2
BDS 1980-77
Pin cylindrical 18n6x25
3
6140 00.00.09
Bolt
4
6198 01.01.00
Beam with sleeves
6
BDS 1359-75/5.6
VintZM8xZO-5,6
7
6942 20 00.00.00-02
Servobrake 270
8
6198 01.00.06
Ring
9
6140 01.00.12
Locking plate
10
BDS 1269-73/8
Nut M14x1.5-61-1
11
GOST 333-79
Bearing 2007113
12
BDS 9954-78
Sealing A75x100-10-3
13
BDS 2527-71/5
Stopper 1/2-8g
14
6198 01.00.01
Poluval
15
6198 01.00.13
Gear
16
6198 01.00.07
Bolt
17
6198 01.00.03
Hub
18
BDS 7947-85
"O"-ring 2-155x3-2
19
GOST 333-79
Bearing 2007116
20
6198 01.0019
Toothed crown
21
6198 01.00.09
Round nut
22(//tractor-service.com)
6198 01.00.10
Safety washer
23
BDS 833-82
Washer 2-8H
24
BDS 744-83
Nut M8-5
25
BDS 2170-/7
VZO ring
26
6198 01.02.00-02
Guide (assembled)
27
BDS 1262-83
Nut M12-8
28
6198 01.02.06
Locking plate
29
6198 01.02.02
Carrying element
30
6198 02/01/07
Gear
31
6198 01.02.03
Here is
32
6198 01.02.01
Casing
33
BDS 1231-85
Bolt 1M12x65-8.8
34
6198 01.02.05
Support washer
35
BDS 4885.82
Ball 5 mm
36
BDS 4886-81
Needle roller 3x27.8
37
6198 01.00.08
Sealing
38
BDS 1232-86
Bolt I M8x16-5.6
39
6198 01.00.22
Brake drum
40
701 08.00.02
Special nut
41
DIN 74361
Spherical spring washer C18.5
42
6198 01.00.11
Cover
43
BDS 9954-78
Sealing A65x85-10-3
44
BDS 7917-85
"0" ring 2-13x3-2
