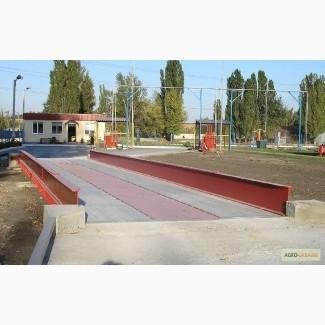

Platform car scales, Chernivtsi region.

Автомобильные весы платформенные предменады для взешивания автомобильные в статическом редимены. The employees of the company "Promservis" have developed different modifications. Structurally, ramp-type automobile scales consist of:весов что разрешает удовлетворить основные требования Заказчика.

Конструктивно автомобильные весы пандусного типа состоят из:

metal loading platform
ramps for entering/exiting a car or a second vehicle (reinforced concrete or metal)
tensometric force sensors
measuring converters
vesoprocessor
On additional request, scales can be completed:

portable display for displaying the weight of the vehicle.
with a traffic light (one or several) for the organization of the established order of movement on the weighing platform
video surveillance equipment
a personal computer for maintaining a database on cargo flow through scales and storing information obtained from video surveillance equipment
infrared barriers to exclude the weighing of a vehicle, the dimensions of which exceed the established limits.
The largest weighing limit (max)

up to 120 t

The smallest weighing limit (min)(//tractor-service.com)

0.5t

The dimensions of the loading platform

up to 24m x 3m

Discretion

10 kg

Mistake no more

± 10 kg

Operating conditions - for a cargo-receiving platform

t -30 + 45С

- For the weighing processor, degree of protection IP54

t -10 + 35С
