Injector Inject Star BI-54, Cherkasy region.

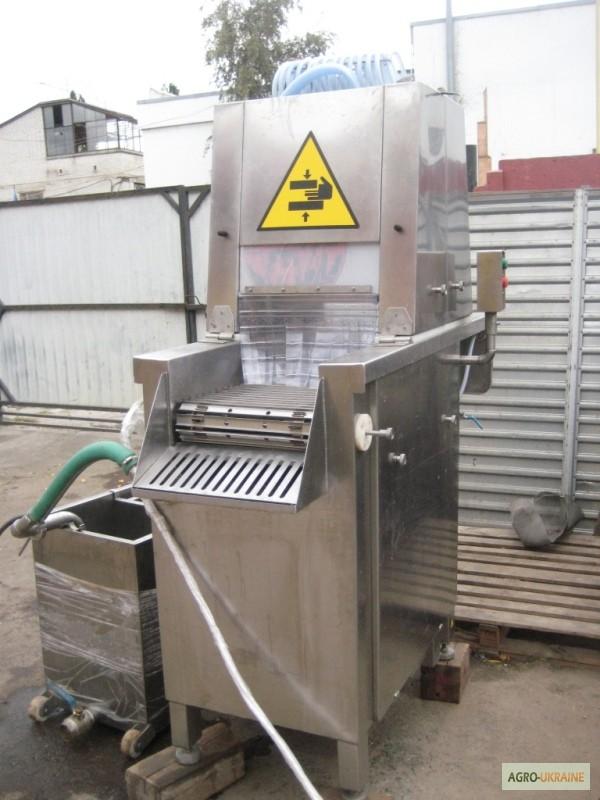

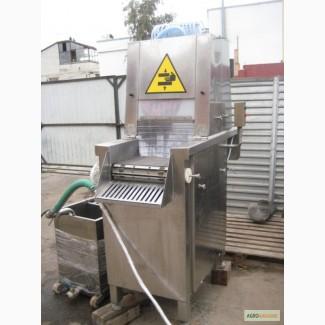

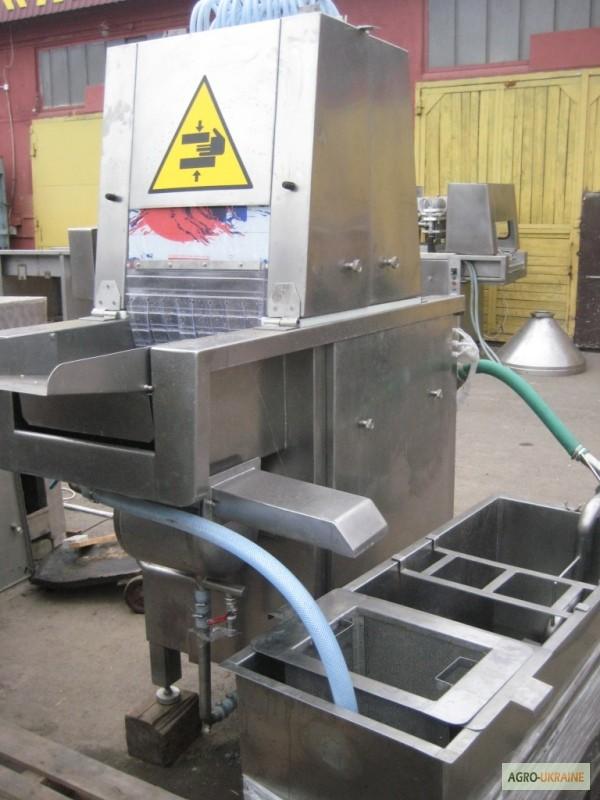

Injector Inject Star BI-54

Designed for continuous injection of meat on the bone and without bones andinjection of poultry.

Welded construction made of stainless steel, the surface is cleanly ground and polished.

- working speed, pressure and amount of injected brine - precisely regulated;

- closed engine compartment - the inner part of the injector is not contaminated;

- the folding cover makes cleaning as easy as possible;

- 3 return filters, 1 suction filter;

- working tools are equipped with a system of quick needle exchange,

- valve for regulating the brine injection pressure, high-performancepump;

- shut-off valve for controlling the moment of brine injection through the needles.

Characteristics:

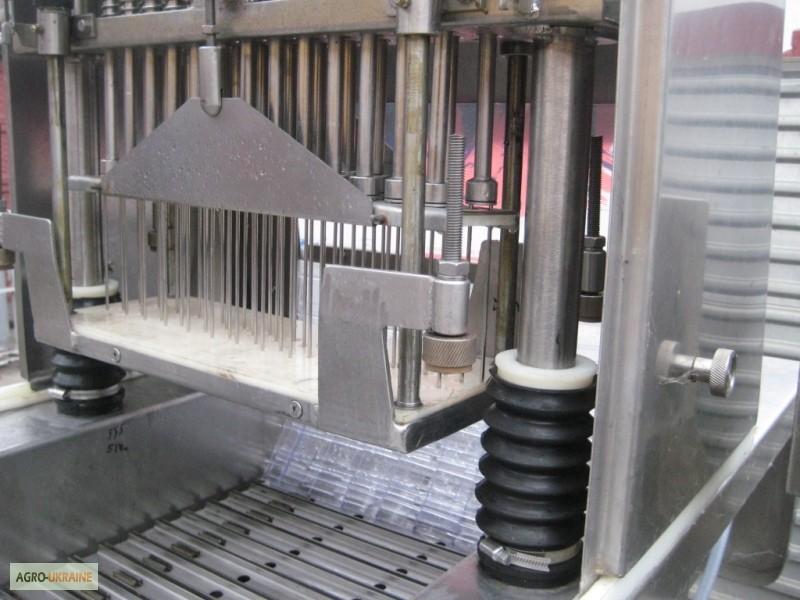

• Two four-row injection heads

• 54 needles, 3 mm in diameter.
(//tractor-service.com)
• Total power 11 kW

• Smooth adjustment of injection pressure from 0.5 to 6 bar

• Smooth adjustment of the conveyor pitch in the range from 10 mm to 70 mm of the table tape stretch.

• Adjustment of the bar distance for each product.

• Smooth adjustment of head speeds from 0 to 54 strokes per minute

• Four levels of brine filtration

• Tape width 550 mm

• Productivity from 10 to 100%

• Productivity depending on production output:

- at a yield of 190% - 130 kg/hour

- at an output of 180% - 160 kg/hour

- at an output of 170% - 200 kg/hour

- at a yield of 160% - 250 kg/hour

• Overall dimensions of the injector 2600*850*2200
