Boiler automation SP 05 LCD thermostat for boiler + fan DP02, Kyiv
Region:all of Ukraine,
Kyiv

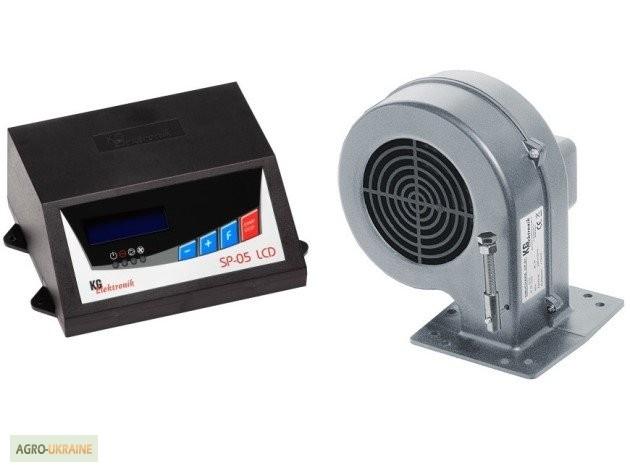

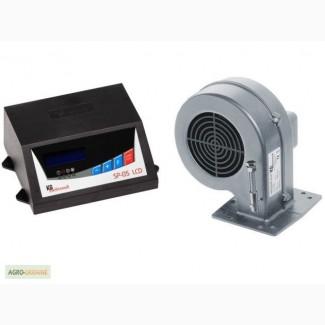

Automaticsboiler SP 05 LCD thermostat for boiler + fan DP02
Products of the Polish manufacturer KG Elektronik. This kit is intended for automatic temperature regulation of the heat exchanger, as well as for the economy of solid fuel. Suitable for boilers with a capacity of up to 30 kW.
SP 05 LCD thermostat for boiler + fan DP02

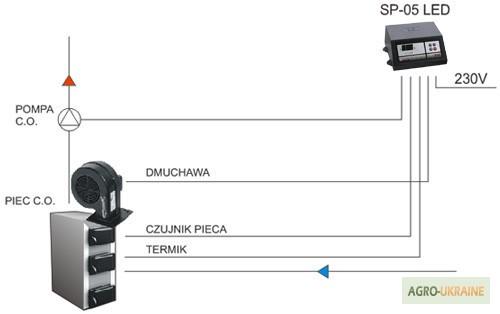

The SP 05 LCD electronic temperature controller by KG Elektronik is intended for solid fuel boilers. The SP 05 LCD thermostat with a liquid crystal display controls the operation of the circulation pump and air blower in solid fuel heating boilers, which makes it possible to maintain the boiler temperature set on the thermostat. Thermoregulator SP 05 LCD KG Elektronik for solid fuel boilers, makes constant measurements of the water temperature in the boiler and, based on the readings, adjusts the amount of air supplied for fuel combustion. In addition, it controls the circulation pump, if it is in the heating system.
Functions:
soft start
antistop
thermal protection
alarm of exceeding 90°C
Blower fan DP-02 KG ELEKTRONIK for solid-fuel heating boilers is used to supply air to the boiler furnace, as well as to ventilate technological equipment and premises.
Structurally, the DP-02 KG ELEKTRONIK fan consists of an aluminum case and an induction electric motor. The inlet is protected by a mesh, the outlet ends with a rectangular flange with mounting holes.
Additionally, at the air outlet, the DP-02 KG ELEKTRONIK fan has a metal flap that blocks the regression of exhaust gases from the boiler furnace when the fan is not working.
Characteristics of KG Elektronik SP 05 LCD thermostat for boiler + fan DP02
(//tractor-service.com)
Production: Poland.
Temperature measurement range, °C: 35-90.
Hysteresis, °C: 1.
Voltage: 230/50Hz +/- 10%.
Power consumption, W: 2.
Required ambient temperature, °C: from -10 to 50.
Connection wires, mm: 3x0.75.
The length of the sensor cable to the boiler, m: 1.
Dimensions (W, H, D), mm: 150x90x60.
Degree of protection: IP-20.
Emergency thermostat, °C: 90.
Fan KG Elektronik DP-02 ALU:
The fan consists of two parts - an aluminum body and a motor with a rotor. A fan is used to inject air into the boiler furnace. Also, the fan can be used for ventilation of premises and technological equipment.
Production: Poland.
Engine type: K20/84.
Power consumption, W: 80.
Maximum productivity, m3/h: 150.
Weight, kg: 1.5.
Power supply: 230 V / 50 Hz.
Products of the Polish manufacturer KG Elektronik. This kit is intended for automatic temperature regulation of the heat exchanger, as well as for the economy of solid fuel. Suitable for boilers with a capacity of up to 30 kW.
SP 05 LCD thermostat for boiler + fan DP02
The SP 05 LCD electronic temperature controller by KG Elektronik is intended for solid fuel boilers. The SP 05 LCD thermostat with a liquid crystal display controls the operation of the circulation pump and air blower in solid fuel heating boilers, which makes it possible to maintain the boiler temperature set on the thermostat. Thermoregulator SP 05 LCD KG Elektronik for solid fuel boilers, makes constant measurements of the water temperature in the boiler and, based on the readings, adjusts the amount of air supplied for fuel combustion. In addition, it controls the circulation pump, if it is in the heating system.
Functions:
soft start
antistop
thermal protection
alarm of exceeding 90°C
Blower fan DP-02 KG ELEKTRONIK for solid-fuel heating boilers is used to supply air to the boiler furnace, as well as to ventilate technological equipment and premises.
Structurally, the DP-02 KG ELEKTRONIK fan consists of an aluminum case and an induction electric motor. The inlet is protected by a mesh, the outlet ends with a rectangular flange with mounting holes.
Additionally, at the air outlet, the DP-02 KG ELEKTRONIK fan has a metal flap that blocks the regression of exhaust gases from the boiler furnace when the fan is not working.
Characteristics of KG Elektronik SP 05 LCD thermostat for boiler + fan DP02
(//tractor-service.com)
Production: Poland.
Temperature measurement range, °C: 35-90.
Hysteresis, °C: 1.
Voltage: 230/50Hz +/- 10%.
Power consumption, W: 2.
Required ambient temperature, °C: from -10 to 50.
Connection wires, mm: 3x0.75.
The length of the sensor cable to the boiler, m: 1.
Dimensions (W, H, D), mm: 150x90x60.
Degree of protection: IP-20.
Emergency thermostat, °C: 90.
Fan KG Elektronik DP-02 ALU:
The fan consists of two parts - an aluminum body and a motor with a rotor. A fan is used to inject air into the boiler furnace. Also, the fan can be used for ventilation of premises and technological equipment.
Production: Poland.
Engine type: K20/84.
Power consumption, W: 80.
Maximum productivity, m3/h: 150.
Weight, kg: 1.5.
Power supply: 230 V / 50 Hz.
