Cooling cassette-corrugated 150 305 1830, Kyiv

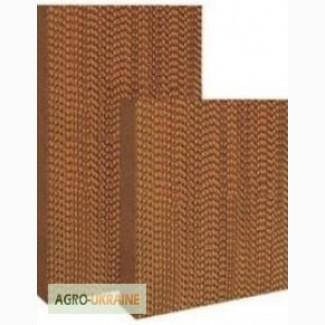

Cooling cassette-corrugated 150*305*1830

Evaporative cooling cassettes or "cooling pad" are used in conditions of high external temperatures exceeding 35C.

The principle of operation is based on the fact that the hot outside air entering the poultry house passes through a cassette consisting of corrugated cellulose-paper sheets with different angles of the corrugations, through which cold water flows. Part of the water evaporates, and the rest performs the function of washing the cooling cassette and is returned to the pumping station through the recirculation system. Thus, the air coming out of the cassette is simultaneously moistened and cooled.

Thanks to the special technology of impregnation, a strong construction of the cassette of increased durability, protected from rotting and destruction, is created.

Due to heat exchange with water, it is possible to reduce the temperature of the air by 10-15 degrees, which then passes through the poultry house in the tunnel ventilation system, effectively removing heat from the bird.

This system is widely used both in egg, broiler, and breeding poultry farming. It functions perfectly under the condition of the correct selection of the performance of exhaust fans, the area of the cassettes and the maximum sealing of the poultry house, which excludes air "sucking" through cracks and cracks in the walls and roof of the poultry house - bypassing the cassettes.

Cooling cassette systems are expensive, but their use is fully justified in the conditions of a long period of high temperatures and high density of bird landing.

Operating costs of such systems are reduced to the need to use high-performance exhaust fans, as well as periodic replacement of the cassettes themselves. The frequency of cassette replacement is largely determined by the quality of the water used.

Combating the high temperature inside the poultry house in the summer is the most important stage on the way to overcoming heat stress in poultry.

For the southern regions, the cassette cooling system in combination with tunnel ventilation is perhaps the only optimal choice.

Fields of application of evaporative type systems:

Creating a favorable microclimate in open areas: city squares, parks, restaurant and cafe areas, water parks, gazebos, verandas, terraces.

- Dust suppression: in ports, paint shops,stone crushers, in places with pressure-free flow, in quarries, warehouses, mines, loading and unloading ramps, on conveyor belts, in railway unloading places. and vehicles.

- Agriculture:greenhouses, greenhouses, greenhouses, winter and summer gardens.

- Animal husbandry: poultry farms, pig farms, horse farms, dog kennels.(//tractor-service.com)

- Refrigeration of supermarket counters: fish and seafood, meat, fruits and vegetables, greens.

- Air-conditioning: pre-cooling of units of conditioners, chillers.

- Woodworking industry: processing and storage of wood, production in furniture and paint shops.

- Medicine: creating a microclimate atpharmaceutical warehouses preparations.

- Textile production.

- Spinning workshops, warehouses of finished products.

- Production premises of printers: production and storage of paper.

- Wine cellars.

- Fight against dust, mosquitoes, insects.

Technical characteristics

Material: corrugated paper (cellulose)
Thickness: 150mm

Typical sizes, mm: 185

Толщина 150 мм
150*305*1830 mm

evaporation panels: 100% cellulose
