Energy-saving automatic drinkers for
pigs

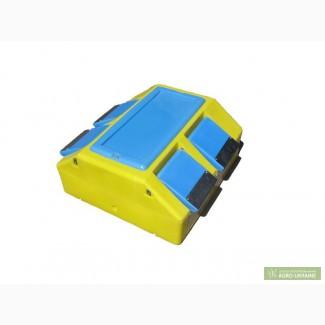

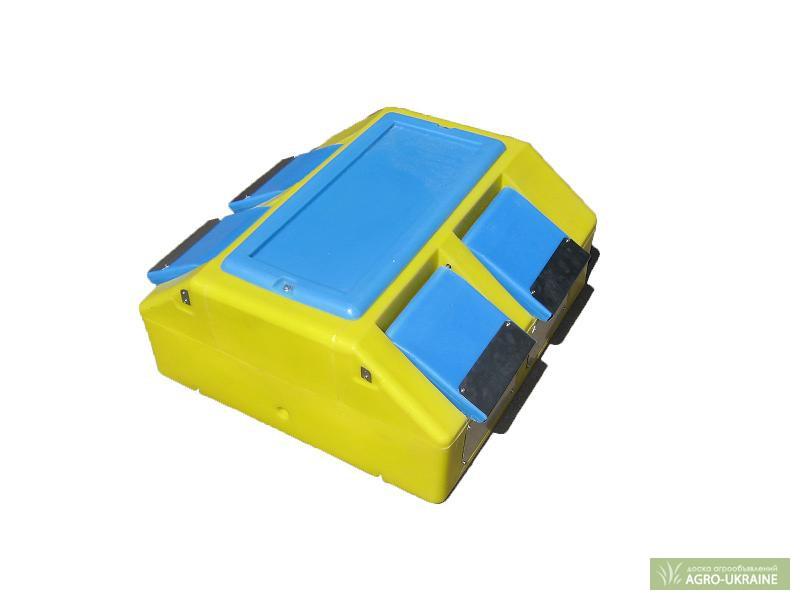

TermAk PS-4 (160 heads) from the manufacturer.
1. Made of impact-resistant, food-grade, ultraviolet-resistant polyethylene. These properties ensure long-term use of products in difficult conditions.
2. They have very high thermal insulation properties. In
drinkers water does not freeze for a long time, even when the product is not in use.
3. Stainless plates that protect against bites and wear are made of 304 steel. This material is optimal in terms of strength and anti-corrosion characteristics, suitable for products in contact with food.
4. In all designs of drinkers, the corners are rounded, the surface is smooth, so the animal will never be injured by the drinker or its stainless elements.
5. The large drinking hole and small height make the drinker convenient for pigs of different sizes.

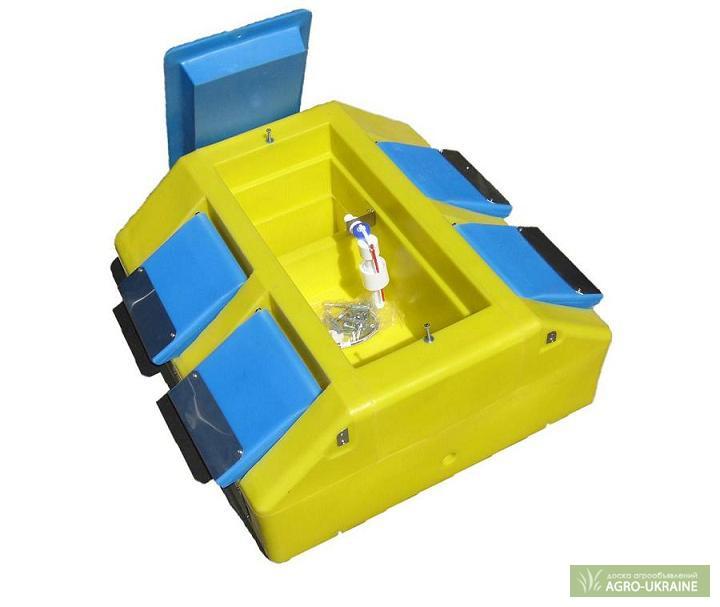

6. A large technological window providing access to the filling valve.
7. The filling valve is equipped with an easily removable fine filter.
8. The overflow hole from the main hopper is located at a height of 30-45 mm from the bottom part, which blocks the ingress of food residues from the animal from drinking places into the common water supply tank. This function significantly increases the periods between servicing the drinker (this design feature is patented by us).
9. Option - heating element.
10. The term of operation is not limited.
Complete set of TermAk PS-4
(//tractor-service.com)
1. Drinker for 2 (4) drinking places as a set - 1 piece. 162
2.Арматура наполнительная -1шт.
3. Fastening for fittings - 1 pc.
4. Reinforced hose (nut 1/2˝) 300 mm. -1 piece
5. Fastening corner 50x50x40 - 4 pcs.
6. Spacer dowel 10\60 - 4 pcs.
7. A set of hardware for fixing the cover and
fastening corners - 1 set.
8. Universal screw 6.0 -4pcs. 170
9.Пробка -1шт.
10. Cardboard box (export version) - 1 piece. 173
Вес/размер/цена изделия:
ТермАк ПС-4: вес-19,5кг., высота-370мм., ширина-850мм., длина-800мм.
