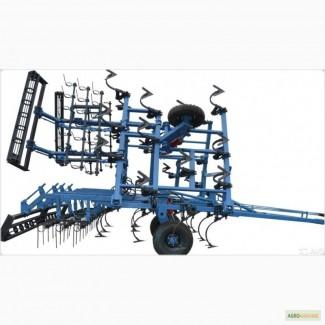

Cultivator of 12 meters. KGSH-12, cultivator of continuous processing, Kirovohrad region.

For sale Field cultivators KSH-12 and KGP-12 are intended for continuous cultivation, forpre-sowing processing, as well assteam cultivation and strongly clogged areas. The structure of the frame is three-section, folding truss. Working nodes with arrow legs are located on the frame in a wide arrangement, in a checkerboard pattern, as well as a high position of the frame above ground level. All this contributes to the high-quality work of the cultivator, avoiding clogging with mud with plant residues. The construction of the frame and working units almost completely excludes the possibility of ruptures and serious mechanical damage. Arrow paws combine a number of features: firstly, their location in the ground contributes to less resistance during movement, which allows you to save fuel and reduce the power load on the tractor, secondly, the location of the paws and their overlapping help to completely cut out weeds, thirdly, the structure of the paw is best suited for cultivation loosening, making it uniform over the entire cultivated surface. As standard, KGSh and KGP cultivators are equipped with a 3-row spring harrow and can optionally be equipped with an additional plate roller. Independent settings for the operation of the cultivator, spring harrow and roller, as well as the possibility of using them separately (for example, without a spring harrow) allow you to configure the cultivator for work in almost any conditions. For better copying of terrain irregularities, all KSh and KGP wide-grip cultivators have a tandem systemwheels.
Working width, m 12
Productivity, ha/h 11.4
Processing depth, see 5-15(//tractor-service.com)
Working speed, km/h 9-13
Clearance under the frame, mm 700
Overlap of paws, mm 80
Tractor power, liters with. 300-330
