Trailed field sprayer OGP 2000 / 18 hydraulic lift (2000 liters, boom 18 m), Kirovohrad region .

Опрыскиватель прицепной полевой ОГП 2000 / 18 гидравлический подъем (2000 л., штанга 18 м)
Components - Italy

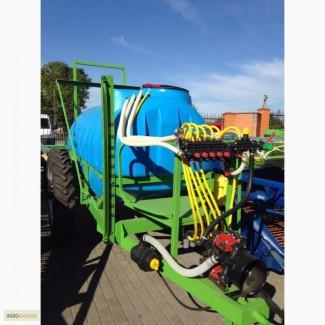

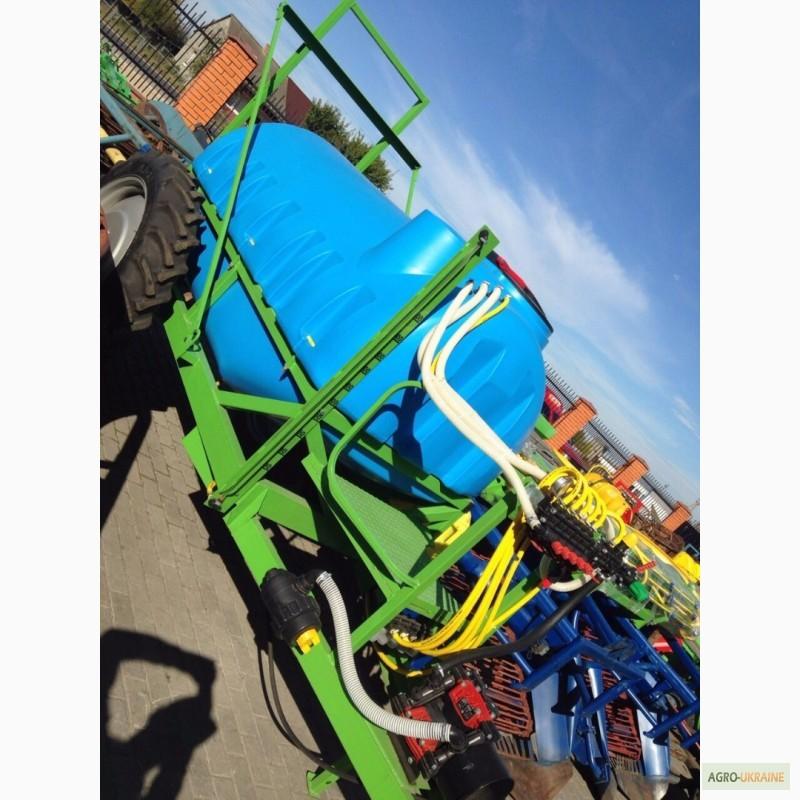

Trailed field sprayer OP-2000 l., Rod 18 m.
Trailed sprayers of the OP line are simple in design and at the same time reliable, intended for medium-sized agricultural operations. They are used for processing field crops and surface fertilization with solutions of inorganic liquid mineral fertilizers, such as pesticides: herbicides, fungicides, insecticides.
The trailed sprayer OP-2000-18 is made in the form of a single-axle semi-trailer and is aggregated with tractors of class 1.4 and 2. It consists of a chassis, a plastic tank with a mechanical (injector) stirrer, cardan transmission, a 3-piston membranepump, pressure regulator, 5-section distributor. Equipped with slotted or injector sprayers. Control of the boom (folding, unfolding - manually), and lifting is carried out from the tractor cabin with the help of hydraulics. The bar is stabilized parallel to the soil surface and painted with powder paint at a temperature protected from corrosion.
OP 2000 is equipped withwheels large-diameter 9.5R32 f-268, which ensures high-speed operation with a clearance of 500 mm.
Track width in OP-2000 can be infinitely adjusted from 1400 mm to 1800 mm.
A mechanical rod 18 m wide with a pendulum stabilization mechanism and hydraulic lifting.
Manual constant-proportional pressure regulator - as an option, a Teejet 844 B computer with an electronic pressure sensor for automatic maintenance of the spraying rate.
Pendulum stabilization with a simple suspension and damping system and manual tilt adjustment
Simple and strong rods are made from closed profiles.
Equipment washing system, two tanks: main with hydraulic stirrers, for washing hands
Effective piston-membrane pump firm Bertolini Pumps with high productivity. Warranty 1 hour.
Reliable hoses and additional linear filters of Polish production, in each section of the rod
Here it is with a variable track width.
Filter (sieve) in the filler neck of the sprayer tank.
Characteristics:(//tractor-service.com)
Model OP-2000-18
The width of the bar is 18m.
Capacity 2000 l
Rod, hydraulics - lifting-lowering.
The working height of the rod is 700-1700 mm.
Sprayer clearance 500 mm
track width 1350-1750 mm
Injectors 1-position, flat jet
The number of nozzles is 36 pcs.
The distance between the nozzles is 500 mm.
pump, diaphragm piston 150 l / min Bertolini ― Italy
The assembly is a cardan shaft
The weight of the unit is 975 kg.
Sizes in transport position
total height 2.50 m
height to the top of the barrel 1.95 m
width 1.70 m
length 3.55 m
