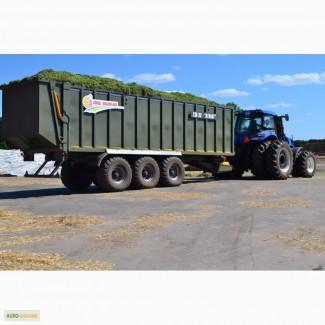

Universal movable trailer TZP-39 Atlant, carrying capacity 30 tons, Sumy region.

"4 in 1" is a conventional trailer, organic fertilizer spreader, overloading hopper-accumulator and beet loader.

The uniqueness of this trailer lies in its horizontal unloading system - a movable front wall. First, the front part of the bottom together with the front wall is moved back by the hydraulic cylinder and pushes out the rear part of the load, after which the third hydraulic cylinder is activated, and the front wall, moving along the guides to the end, pushes out the second part of the load by itself.

Technical characteristics
- Tridem on springs with reactive thrusts (ADR Italy), axle 130x2150 tubular; Gross weight 40 tons. The front and rear axles are steerable, which makes it easier for the trailer to turn and prevent tire wear.tyres;
-Tyres increased stability 560/60xR22.5 (load 6.3 tons at 30 km/h), (Mitas, Slovakia).Disks wheels – PRONAR (Poland);(//tractor-service.com)
- The braking system is pneumatic (hydraulic, mixed possible);
- The hydraulic system has three hydraulic cylinders with a volume of 80 liters;
- The hydraulically movable front wall creates a pressing effect of up to 80t;
- The bottom - consists of two parts: the first part is a fixed metal welded structure; the second part is a movable, metal structure, which moves to the stern during unloading;
- The rear side is hydraulically openable;
- Mechanical drawbar support (manual height adjustment);
- Interchangeable hitch ring Ø 50 mm (Scharmuller Austria);
- Electrical system 12 volts.
