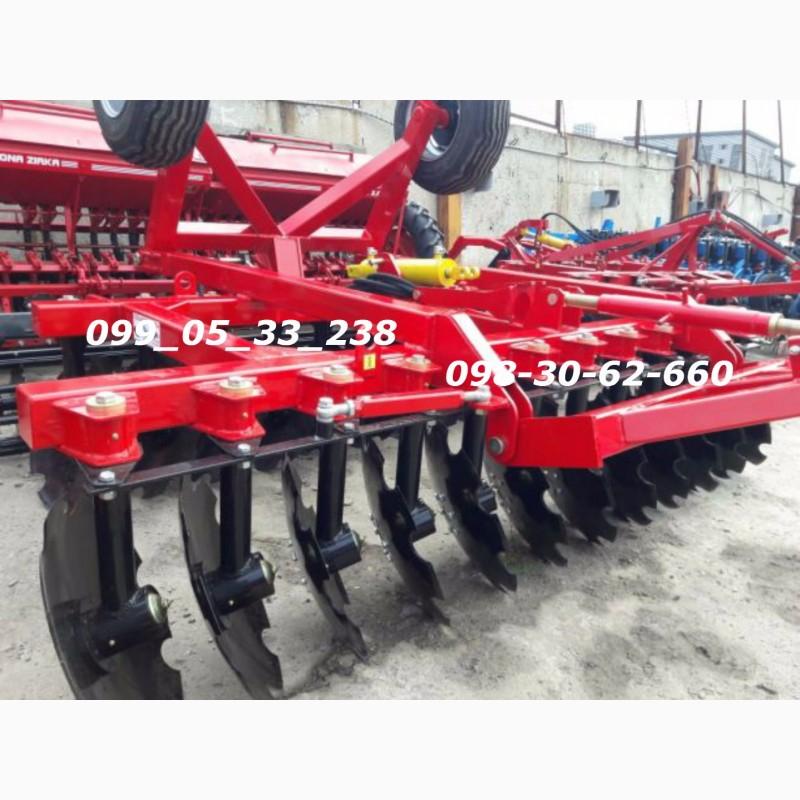

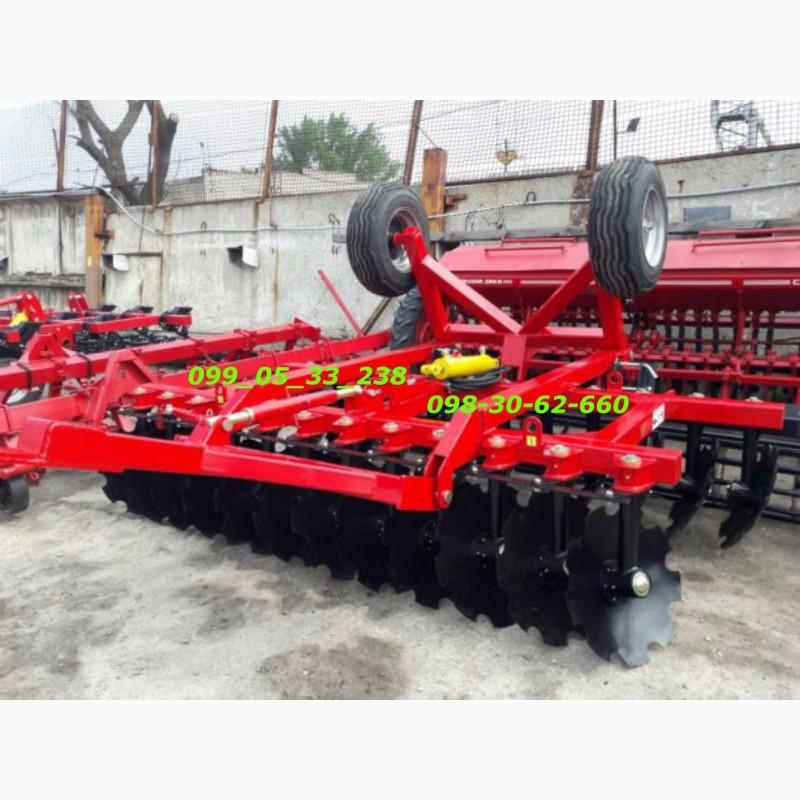

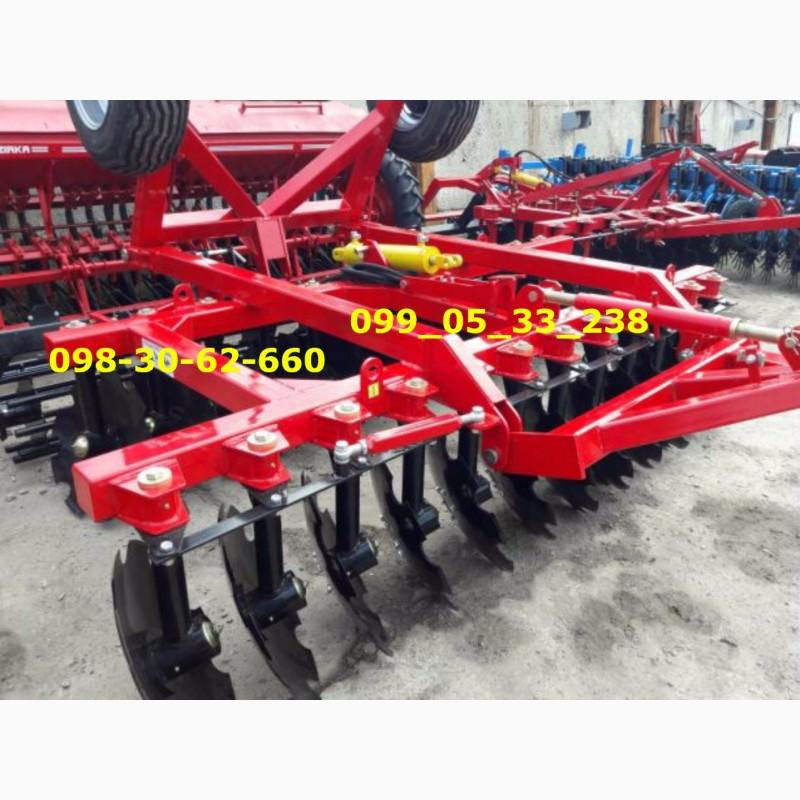

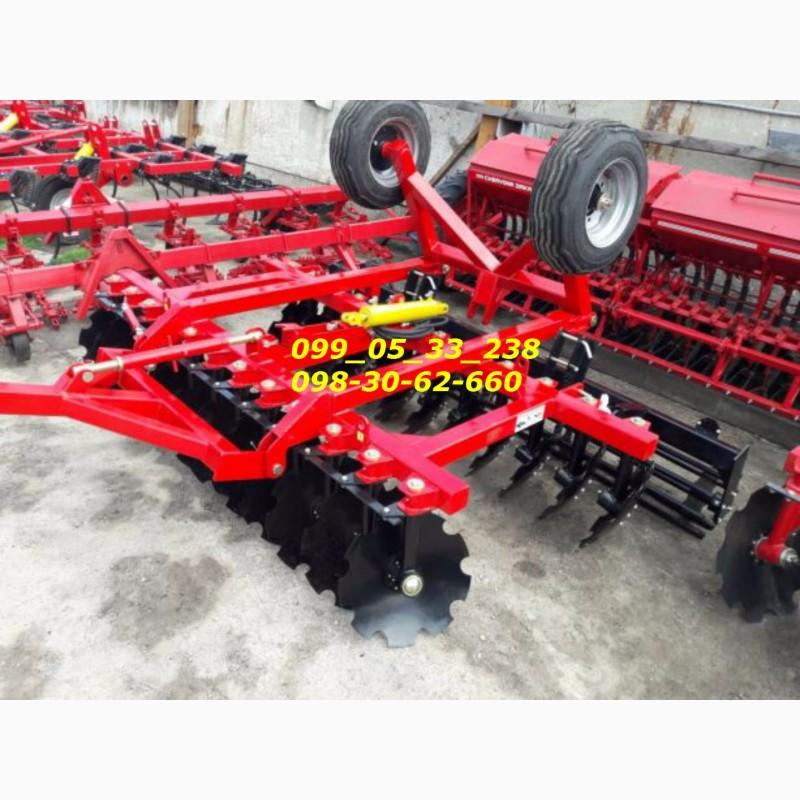

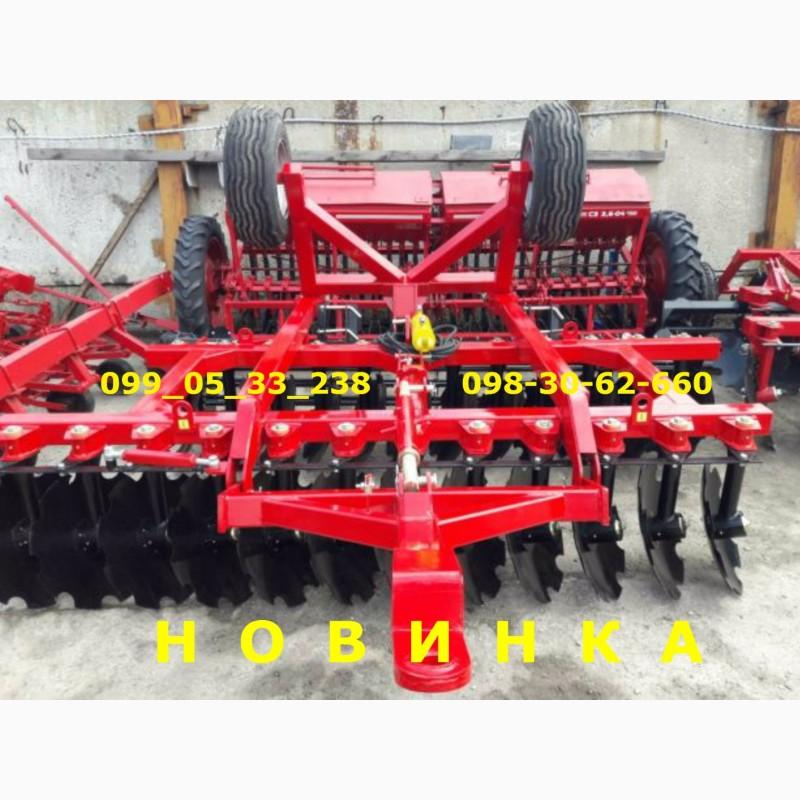

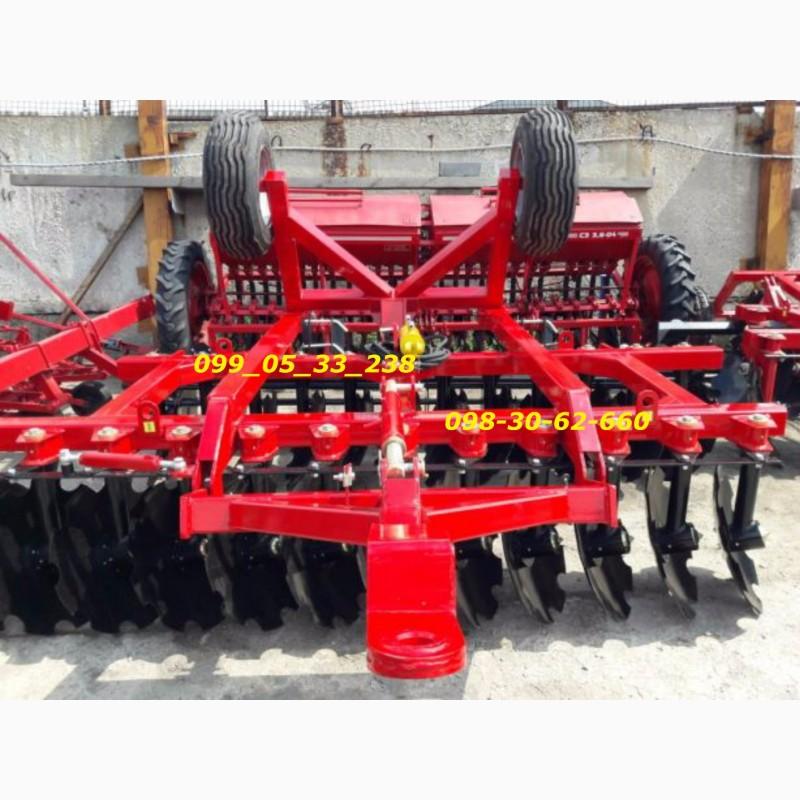

New trailed harrow BPD 3200 disc disc diameter 560 mm 24 pcs as PALLADA 3200, Dnipropetrovsk region.

Disk trailed harrow like PALLADA 3200 Trailed two-row disc harrowBPD-3,200×2 Diameter of working bodies 560 mm Trailed two-row disc harrowBPD harrow-3,200×2 ideal for fast, surface treatment of stubble with intensive mixing, works smoothly even with a large amount of straw. Treatment of corn fields with a large amount of straw and stubble is intended for resource-saving pre-sowing and main soil treatment to a depth of 8 to 15 cm for grain, technical and fodder crops, destruction of weeds and grinding of crop residues after harvesting crops, rejuvenation of meadows and pastures, as well as grinding, leveling and compaction of the soil.

It can be used in all agro-climatic zones, on all types of soil, except rocky and weedy ones.

They are intended for the following works:
Loosening of the upper soil layer;
Leveling of the field surface after plowing;
Destruction of weeds;
Planting of seeds and fertilized;
Cutting meadows and pastures before plowing;
Peeling of stubble;

Compact sizes in transport position; 160
Высокое качество покраски изделия.

Technical characteristics
Productivity for 1 hour of the main time (ha/h) up to 3.84
Working speed (km/h) up to 12
Width of capture, m 3.2±0.12
Constructive mass of the machine, kg 1600
Processing depth, cm up to 15
Dimensions (in working position), mm
Length 5265±160(//tractor-service.com)
Width 3366±100
Height 1150±35

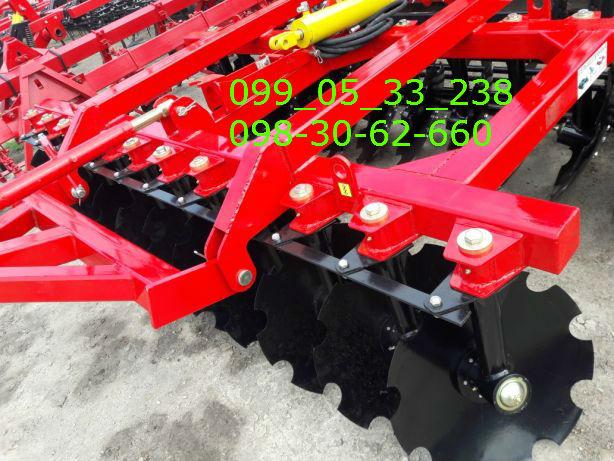

Disc diameter, mm 560
Number of working bodies, pcs. 24

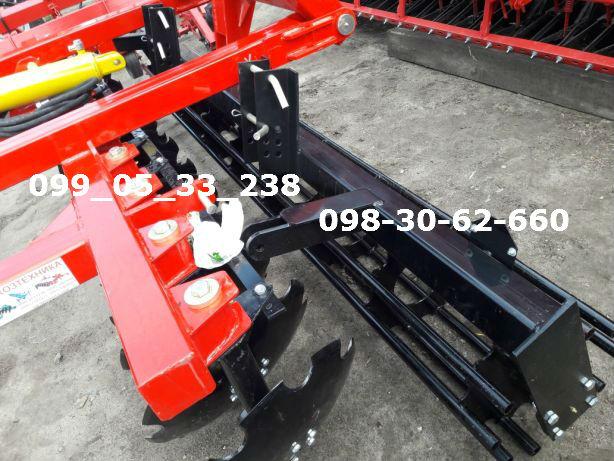

skating rink 1
Angle of attack of discs, degrees. 0° — 30°
Distance, mm
between disks in a row 250
between rows of disks 950
Service life, years 18
Test results
Indicators of the quality of soil treatment BPD 3200
The ridge of the soil surface, no more (see) 3
Crumbling soil, not less (the size of lumps not more than 25 mm.) (%) 90
Grinding of harvest residues (%) 101
Plant and harvest residues (%) 101
Aggregability 90 hp:

DT-75, MTZ 892.2

Attention!

Processing quality is ensured on soils with specific resistance up to 0.09 MPa (0.9 kg/cm2), hardness up to 3.0 MPa (30 kg/cm2) and ultimate humidity up to 25%.
