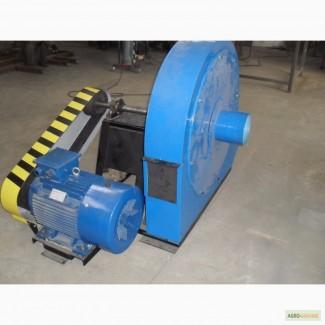

Universal hammer crusher, Khmelnytskyi region.

Appointment
The hammer crusher is intended for crushing grain crops, wood chips, shavings, straw, grass, huskssunflower husks and others.
Unit device.(//tractor-service.com)
The process of crushing raw materials in the crusher takes place with the help of hammers. Hammers are movably mounted on axles. The body is installed on a frame structure. The rotor is a shaft with a drum and six axes for hammers, installed on two bearing supports. The rotor is driven by an electric motor through a V-belt transmission. Hammers (knives), hung on the axis of the rotor - 48-64 pcs.; Sieve (3-15 mm) Options: discharge nozzle, control cabinet, additional sets of hammers and sieves.
The crusher is designed for inclusion in the network of three-phase alternating current with a voltage of 380 V.
Technical characteristics. 1. Productivity, kg/hour
-Cereals crops - up to 3000; - Wood chips, shavings - up to 2000; - Grass, hay,straw, husks - up to 2500. The capacity of the crusher is directly dependent on the size and moisture content of the feed material, the diameter of the holes in the sieve. 2. Electric motor: AIR type; 22-45 kW; 3000 rpm. 3. Overall dimensions, mm: - length 1750 - width 1250 - height 1110 - weight, kg 450
