Press for making fuel briquettes Vector BT60, Poltava region.

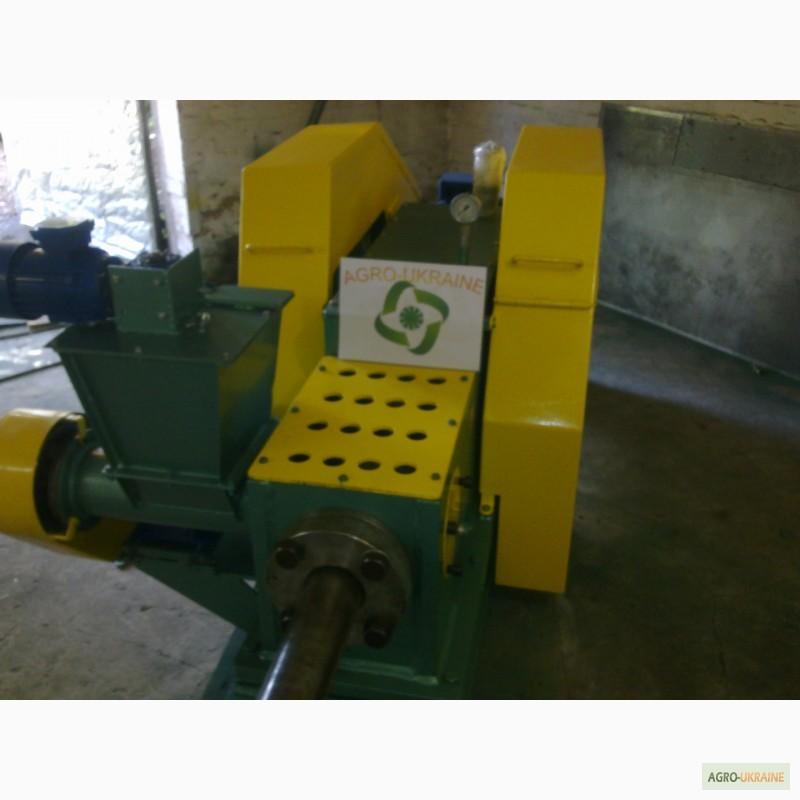

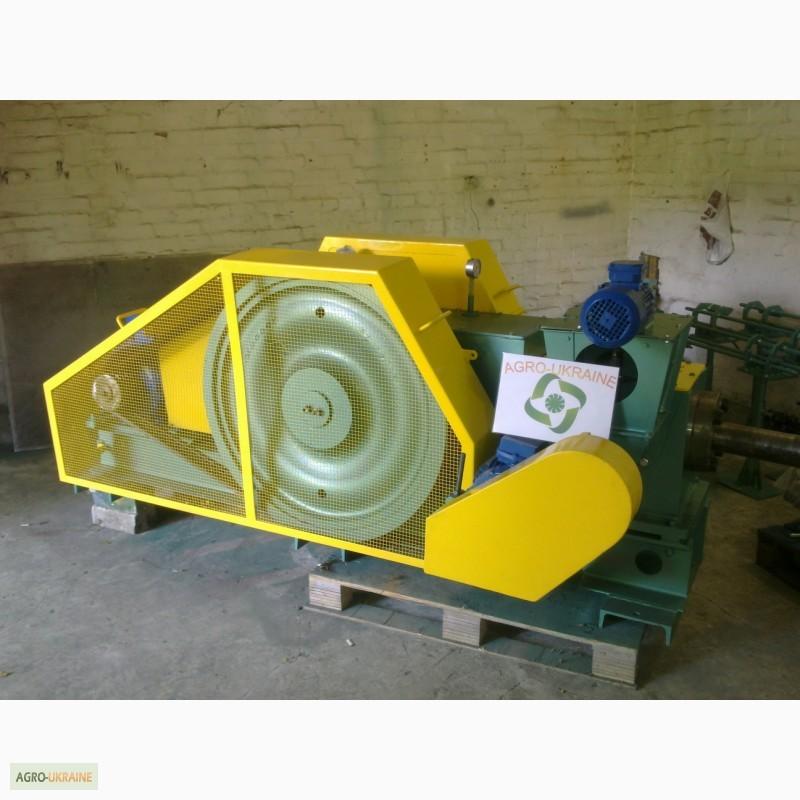

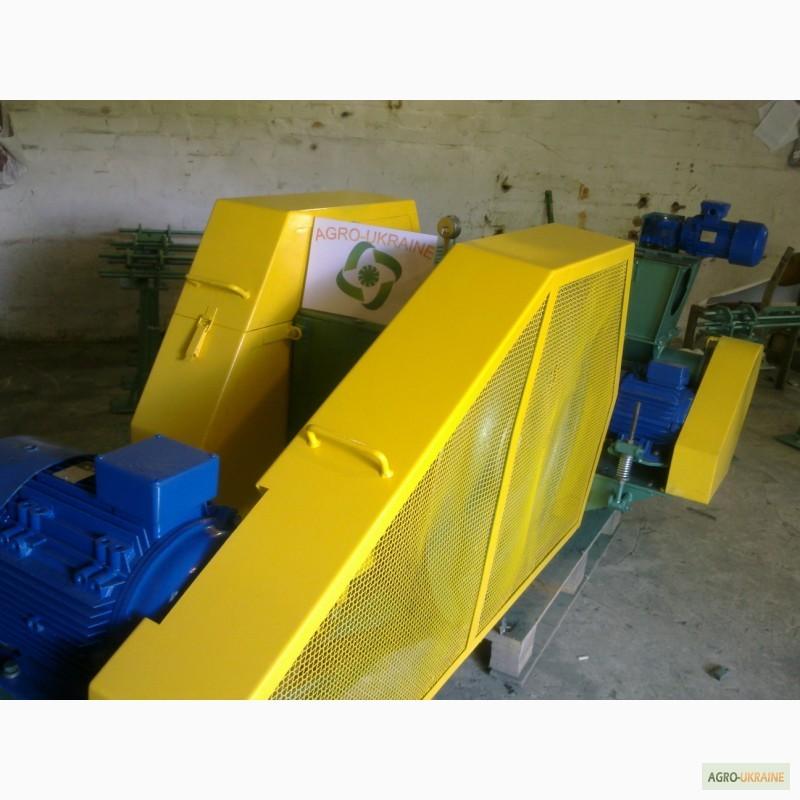

Press for making fuel briquettes Vector BT60
(Productivity 500-700 kg/hour)

Press-granulator Vector BT60 granulates and briquettes the following raw materials:
Waste of woodworking enterprises; straw of all types of agricultural crops (straw is a promising energy biofuel that replaces natural gas); allows you to process corn cobs; hard and soft tree species; tree leaves; cotton waste; peat (the amount of which in Ukraine is very large and this direction is rapidly developing); processing of walnut shells (from which high-quality briquettes with an expensive price are obtained); weeds of all types; dry biomass, urban waste systems; dry raw material after processing of chicken droppings; rice husks; sorghum; coal dust (from which fuel briquettes of high density and excellent quality are obtained); charcoal; tree bark; allows briquetting of mixed organic and inorganic raw materials; waste from elevators (which are simply disposed of and not profitable).
For more than 20 years, the company has been conducting experimental projects for obtaining high-quality briquettes and granules from any raw material and optimizing it for equipment that serves as a guarantee for profit.

Technical characteristics BT-60:
No. Parameter Ed. change Indicators
1 Productivity - sawdust kg/h 500-700
2 Productivity - straw kg/h 350-550
3 Productivity - sunflower husk kg/h 450-550
4 Allowable humidity % 8-20
5 Density of briquettes g/cm3 0.8-1.5
6 Briquette diameter (standard version) mm 60-70
7 Diameter of pellets (granules) mm 7-22(//tractor-service.com)
8 Briquette length (random, adjustable) mm 25-200
9 Power of the engine of the main drive kW 18.5
10 Engine power of the worm drive of the briquette press kW 5.5
11 Type of lubrication of bearings, main shaft, bushings, connecting rod, conductor. - Forced lubrication
12 Type of oil - M10G2K
13 Oil volume dm3 40
14 Oil pressure mPa 0.6
15 Type of oilpump - Toothed
16 Lubrication of other elements - Plastic grease
17 Size - length x width x height mm 260x950x1100

Complete set of the press:

1. Press briquetting Vector BT-60 (Restored by the manufacturer)
2. Control panel.
3. Cooling line 6 m.
4. Storage bunker 0.8 cubic meters.
