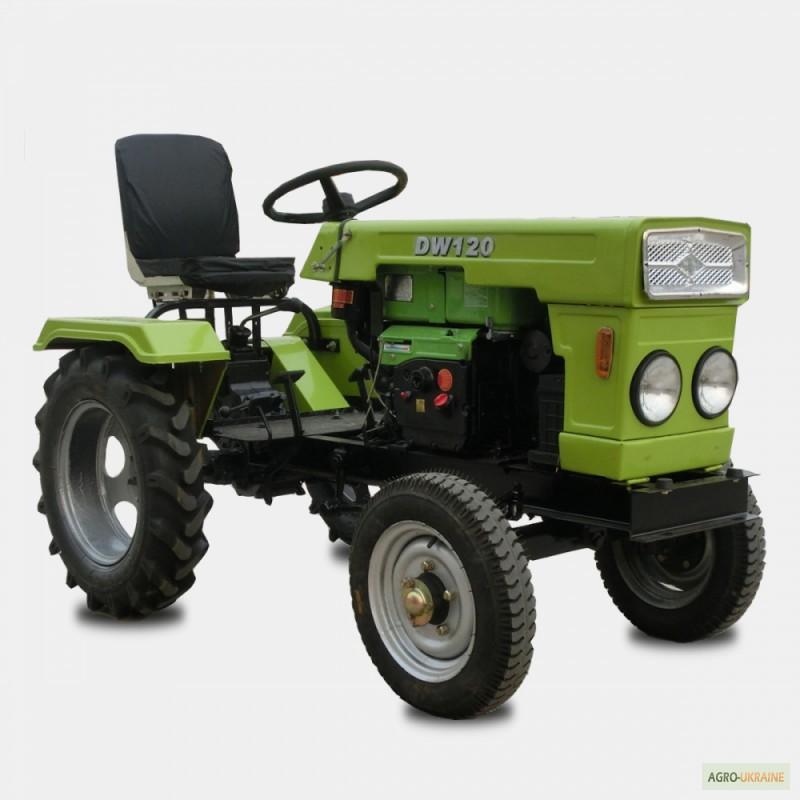

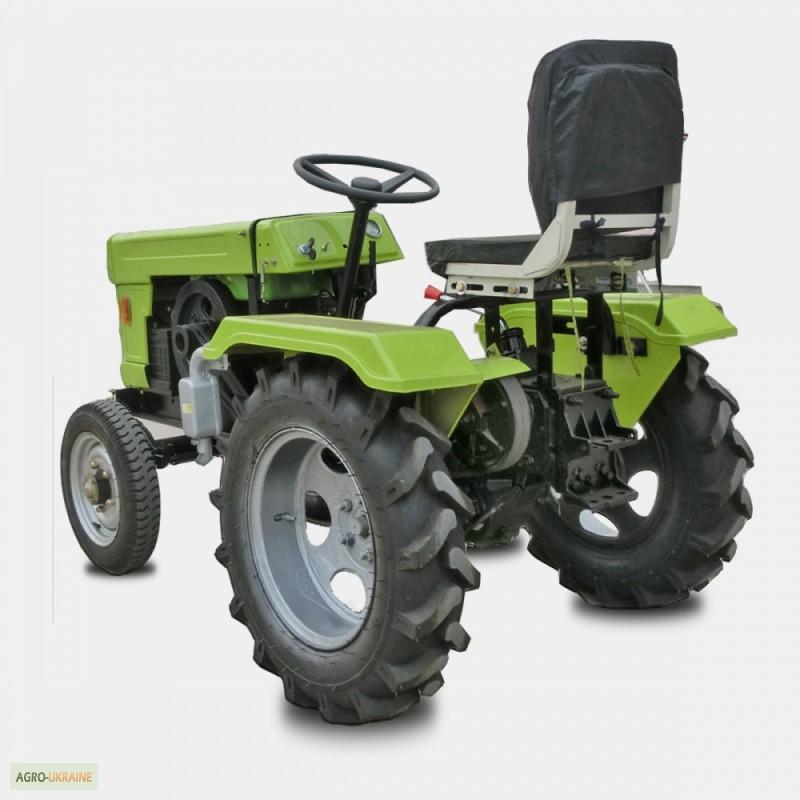

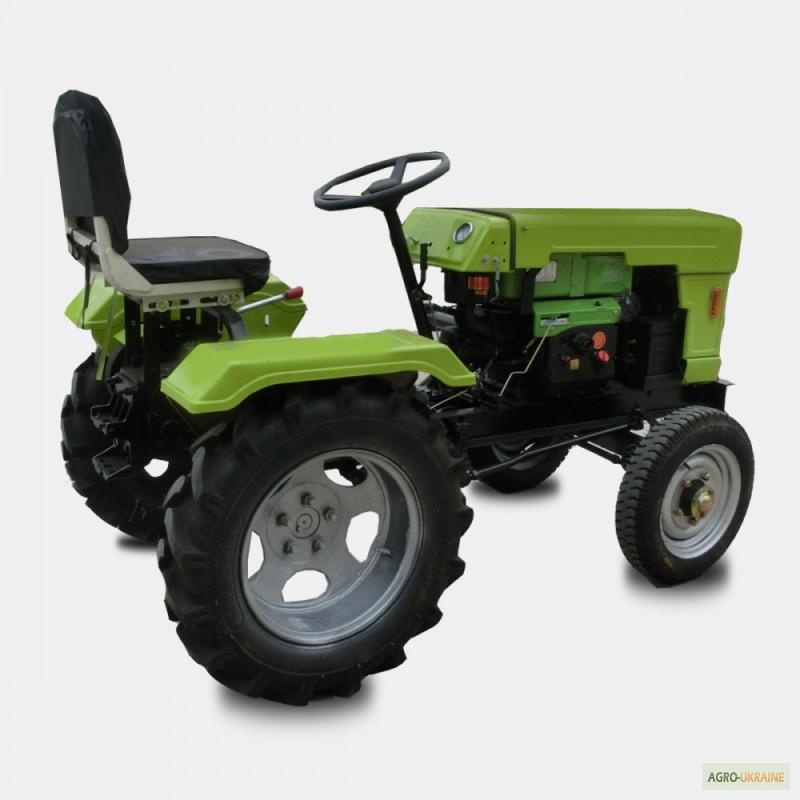

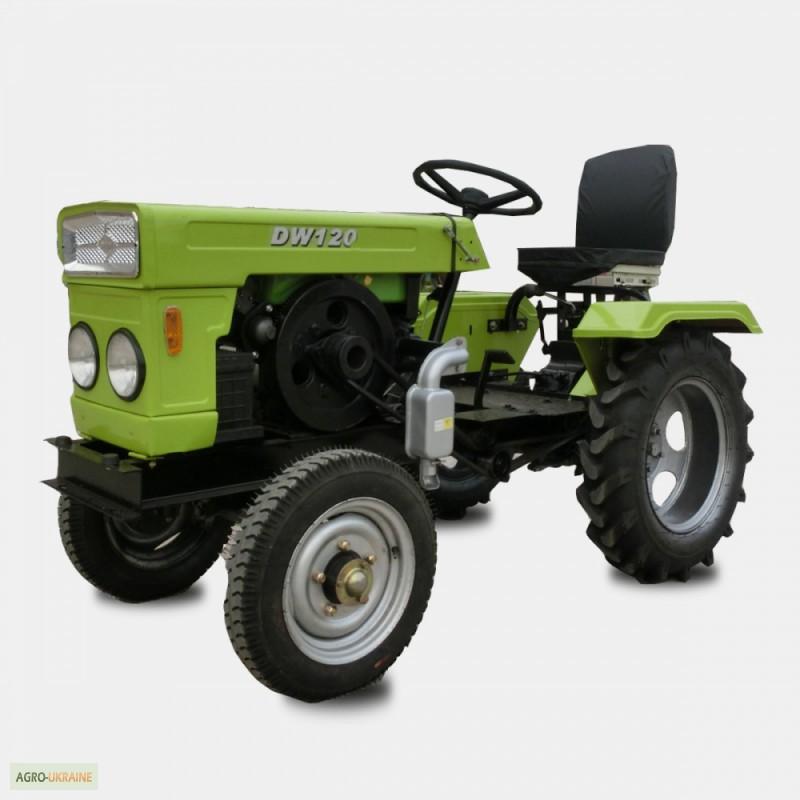

Tractor DW 120 (DV 120). 12 hp Diesel. Electric starter. Water cooling, Odesa region.

Predstavlamen novy small tractor DW 120 created as a worthy alternative to a walk-behind tractor. In terms of functionality, the DW 120 B mini tractor is an ordinary tractor, and for the price it is a little more than a walk-behind tractor.

Specify the price.

Delivery across Ukraine or pickup withwarehouse. Warranty year.

Video review:

https://www.youtube.com/watch?v=lERf9CUSK2g&feature=youtu.be

Engine model L13DQ
Engine power, hp (kW) 12 (8.8)
Wheel formula 4x2
Engine type diesel, 4-stroke, with direct injection, without turbocharging
Number and location of cylinders 1, horizontal
Engine starting system electric starter, manual starter
Cooling system water cooling radiator type
Engine volume, cm3 631
Cylinder diameter / piston stroke, mm 92 / 95
Nominal engine fuel consumption, g/kW*h ≤ 258
Nominal revolutions of the crankshaft of the engine, rpm 2300
Nominal traction force, kN 3.1
The type of engine oil is mineral or semi-synthetic for diesel engines.
Nominal oil consumption in the engine, g/kW*h 1.5
Gear box (KP) (3+1)x2
Oil type in gearbox and gearbox Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90
(transmission)(//tractor-service.com)
There is no rear differential lock, unlocking system
rear axles
Dry clutch, 1-disk, 177
постоянно замкнутого типа
The main gear is wedge-belted.
The drive of the steered wheels is a straight-tooth gear.
Mechanical steering
Brake onrear wheels, ring type with internal pads
The power take-off shaft (PTO) is lateral, keyed.
Revolutions of the power take-off shaft (PTO), rpm 1180
The maximum load capacity of the hinged mechanism, kg 130
Minimum clearance, mm 200
Wheelbase, mm 1200
Wheel track, front mm 840
rear 860
Sizetires front 4.00-8
rear 6.00-12
Minimum radius
turning, m without brakes 2
with brakes 1.5
Forward speed, km/h forward 2.24-22.78
back 1.72-6.97
The volume of the fuel tank, l 5.5
Engine crankcase volume, l 2.0
The volume of the gear case and gearbox, l 5.0
Engine cooling system volume, l 2.5
Overall dimensions (L x W x H), mm 2200x1280x1330
Structural weight, kg 390
