SunFloro sunflower harvester, Dnipropetrovsk region.

Sunflower harvester SunFloro

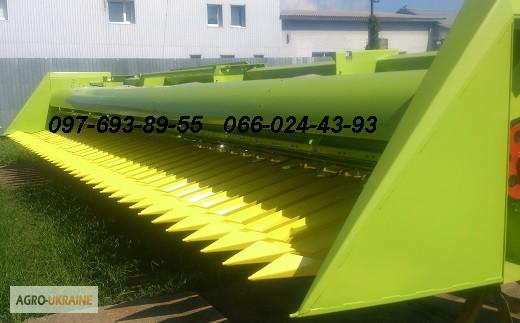

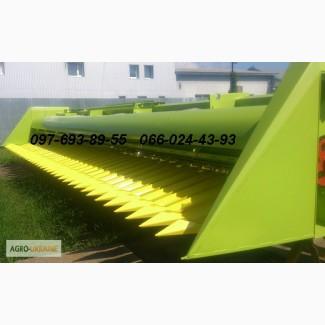

SunFloro sunflower harvester
Sunfloro sunflower harvester (similar to Zaffrani). The Sunfloro harvester is a new generation of harvesters that allows you to harvest sunflowers without a row method, which allows you to work more productively and with less losses.
Technical descriptionSunfloro harvesters
The distance between the dividers is 22.5 cm, which makes it possible to harvest sunflowers with rows of 45-50-60 cm, as well as those sown in a continuous way. divider, divide the sunflower, regardless of the direction of movement of the harvester. The capture of the sunflower cap is possible in any position of the plant and in the direction of sowing. The harvester provides a slice of sunflower directly under the basket due to a certain position of the protective cover of the reel in relation to the plane of the sunflower slice. The sunflower falls into the zone of the protective casing, tilts at a certain angle and is captured by the reel, while the reel pulls the sunflower into the cutting zone, cutting it under the basket, then throws it onto the auger, which rotates and feeds the sunflower baskets into the center of the header and further into the inclined chamber of the harvester. At the same time, the leaves and stems remain on the ground, and thanks to this, the seed contamination in the bunker is very low, NOT more than 1.2%.

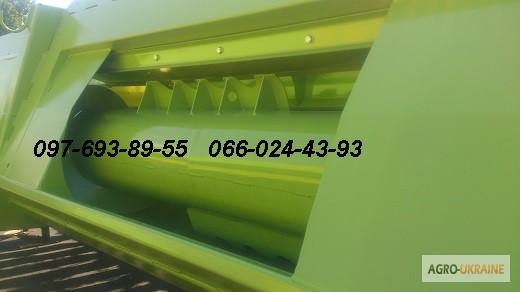

The planetary drive of the cutting device and the segment with a large notch ensures a high cutting speed - up to 800 single strokes of the knife per minute and increases the working speed of the combine. The feed auger is protected by a friction protective clutch, which limits the torque on the auger in the event of stones or other objects hitting the auger area, protects all rotating parts from overloads.
The drive of the cutting device is equipped with an automatic cut-off device, which is activated in the event of metal objects falling into the cutting zone and ensures that the belt slips on the pulley of the planetary gearbox.
The harvester harvests both hybrid and non-hybrid sunflower.
Technical characteristics of the Sunfloro harvester:
Name Sunfloro– 6
(for combines with a capacity of 250 hp) Sunfloro– 7.4
(for combines with a capacity of 350 hp) Sunfloro– 9.1
(for combines with a capacity of 450 hp)(//tractor-service.com)
Gripping width (mm) 6000 7400 9100
Lifter width (mm) 170 170 170
Lifter length (mm) 1400 1400 1400
Center-axis distance of dividers (mm.) 225 225
225
Cutting speed (pieces per minute) 600/800 600/800 600/800
Screw helix diameter (mm) 540 540 540
The pitch between turns of the screw spiral (mm) 500 500 500
The diameter of the spiral tube of the auger (mm.) 250 250 250
Screw rotation speed
(rotated for a minute) 176 176 176
Mass (kg.) 1765 2120 2500
Length, width, height (mm) 6000x2340x1100 7400x2340x1100 9100x2340x1100
