Air grain separator SAD-30 with cyclone, Luhansk region.

Separators with cyclone The high-performance SAD allows not only to clean and calibrate any seeds, but also to clean the air itself, which circulates in the separator. The resulting dust and small waste settles in the cyclone of the SAD-30 Ts separator.

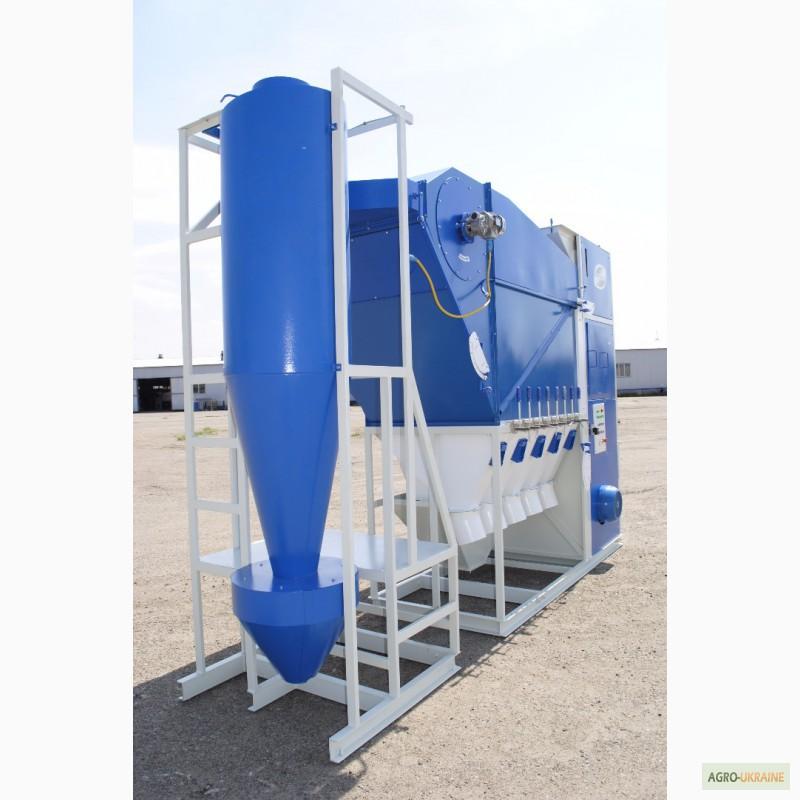

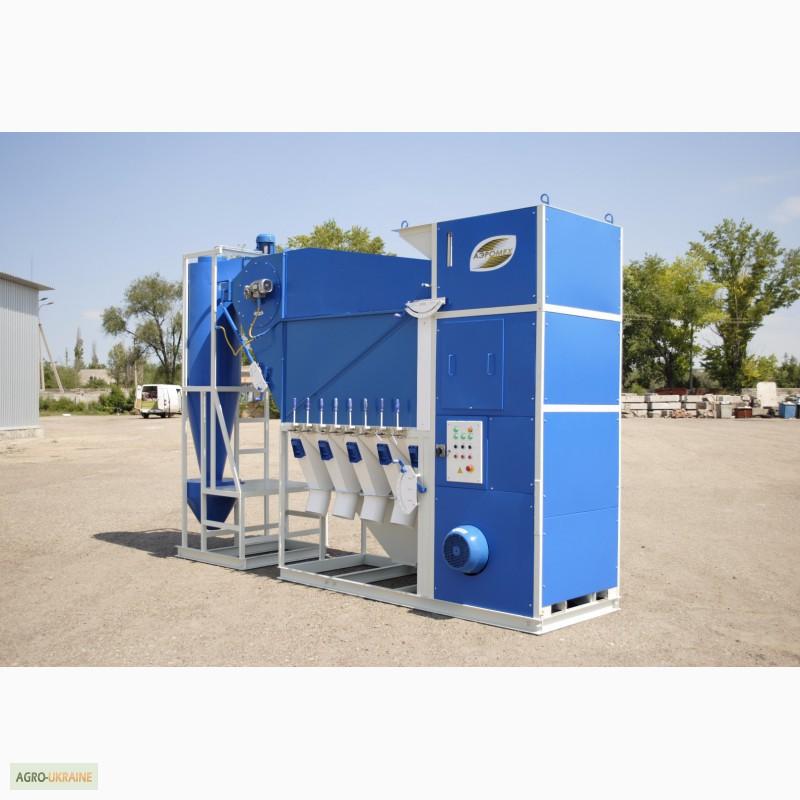

Separator SAD-30 with a cyclone

Productivity:
on preliminary cleaning - up to 40 t/h
on primary cleaning - up to 30 t/h
for calibration (sorting) - up to 10 t/h
Power consumption:
15.8 kW
Dimensions:
Length - 4550 mm.
Width - 1450 mm.
Height - 3350 mm.(//tractor-service.com)
Mass.
1369 kg.

NPF "Aeromekh" LLC has been successfully producing and selling in 40 countries of the world for 15 yearsZernovye SAD aerodynamic separators.
The new method of separation of seeds by specific weight developed by us allows to clean and calibrate any seeds of agricultural crops. Thanks to high-precision calibration, farmers receive high-quality seed material, which increases the yield by up to 40%. In the world, the SAD separator has established itself as a technology for obtaining high-yielding seeds.
Universality, durability, ease of adjustment, quick transition from crop to crop, a wide range of models (from 4 to 150 tons per hour) allow to meet the needs of both small farms and large seed plants,elevators.
The SAD separator provides:
-separation of all types of agricultural crops, starting from small-seeded grasses and ending with beans and pumpkin seeds, separation of hard-to-separate impurities and seeds;
-separation of grain without strict restrictions on humidity and contamination of the source material;
- selection of seeds with high sowing qualities, grains with high gluten content;
-cleaning and calibration of alltypes of cereals and products of their production;
-calibration of any bulk materials by specific gravity (sand, sawdust, crushed plastic, granite chips, etc.)
