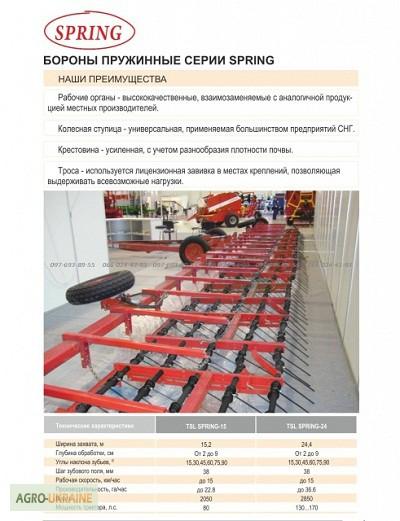

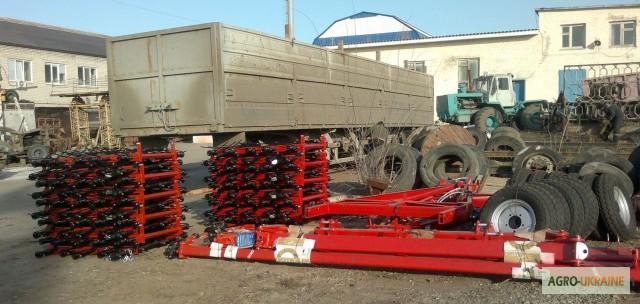

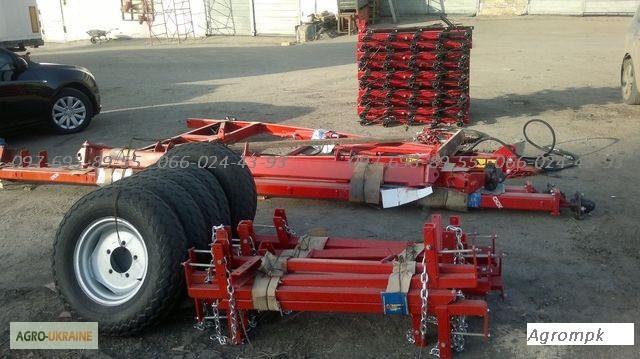

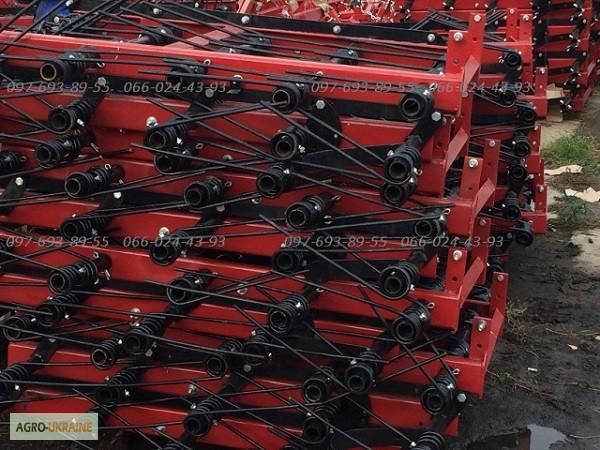

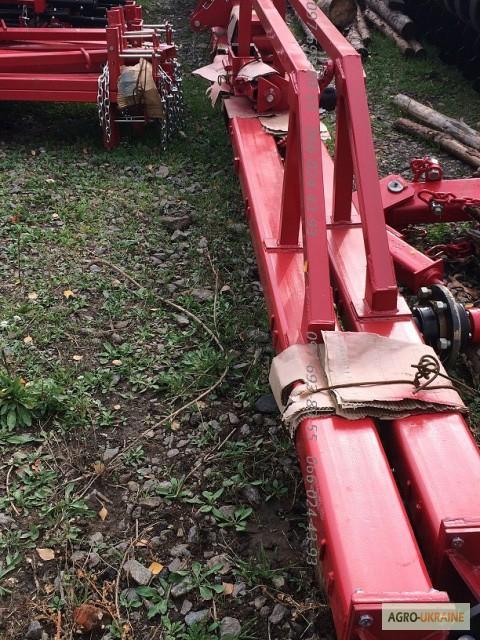

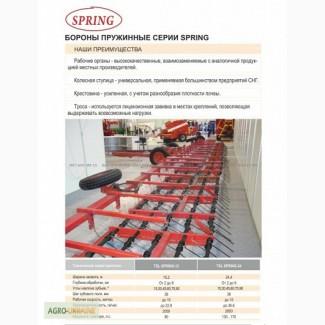

Spring harrow TSL 24 Spring, Dnipropetrovsk region.

Spring harrowSpring harrow TSL 24 Spring with a working catch width of 24 meters and is hydro-treated, has two positions, working and transport, is used in crop production for harrowing of arable land, pre-emergence and post-emergence harrowing, closure of mineralfertilized, closing of moisture, collection ofstraw, hay in rolls. The harrow is aggregated with tractors with a power of 130 hp. Working bodies of TSL Spring 24 are interchangeable with similar working bodies of Ukrainian manufacturers, as well as
universal wheel tread for installation on a spring harrow
On the tension cables, a licensed curl is applied in the places of attachment, which allows it to withstand all kinds of loads.
Two positions - working and transport, which allow moving the spring harrow without using additional means. Adjusting the angle of attack of the teeth to the 6th position makes it possible to change the depth of loosening from 2 to 9 centimeters.
Working width, m 24.4 Productivity (ha/hour) not less than 36.6(//tractor-service.com)
Working speed for basic operations up to 15
Depth of loosening (cm) from 2 to 9
Mass of the unit, kg 2850
Attack angle 15, 30, 45, 60, 75, 90
The TSL Spring 24 harrow is aggregated with tractors with a capacity of 130-170 hp.
