KUN on MTZ, YUMZ, front loader mounted on MTZ, YUMZ (with joystick), Zaporizhzhia region.

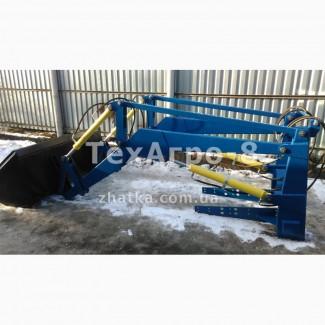

PFU-1200 front-end universal loader on MTZ, YuMZ, T-40

The universal front-end loader is a mounted equipment on atraction tractor type, class 0.9 - 1.4 and is intended for loading and unloading, partial mechanization of various cargoes and warehouse work in the agricultural and construction industry.

► The lifting height of the loader is 4.50m and the unloading is 4.10m, which makes it possible to load any product into vehicles with high sides.

Technical characteristics:

• type of equipment - mounted
• hint - frontal
• the drive is the hydraulic system of the tractor
• bucket volume - 1.2 m3
• bucket width - 2000 mm
• lifting height - 4.50 m
• unloading height - 4.10 m
• unloading angle - 60 degrees
• nominal load capacity - 15 kN (1500 kg)
• working speed - up to 6 km/h
• transport speed - up to 16 km/h (without cargo)
• aggregated with tractors - MTZ; YMZ; T-40
• structural weight - 750 kg
• bucket mass - 220 kg
• mass of the arrow - 530 kg
• operational termloader services - not less than 10 years

The standard package includes:(//tractor-service.com)

• frame with racks - 2 pieces
• arrow - 1 piece
• levers with copies - 4 pieces
• new hydraulic cylinders - 4 units (1 hour warranty)
• fingers with tavotnits - 24 pcs.
• High-pressure RVD hose - full. k-kt
• bolt fastener - full. k-kt
• 1.2 m3 bucket with a width of 2 m - 1 piece
• passport - 1pc

Additionally, the loader can be equipped with:

• crane hitch (hook) with a load capacity of 1500 kg
• forks for pallets
• pitchforks for hay and straw
• jaw bucket
• roll gripper (gripper for rolls of straw)
• gripper for logs
• with a snow shovel (shovel )

Form of payment: cash and cashless payment.

24-month factory warranty! Quality! Delivery to the household!

Goods are delivered by motor vehicle or by any delivery service convenient for the buyer, In-Time, Novaya Pochta, Delivery, etc.
