Vertical compound feed mixer "GNOM" 1500 kg, Poltava region.

Installation of a mini-feeder "GNOM"

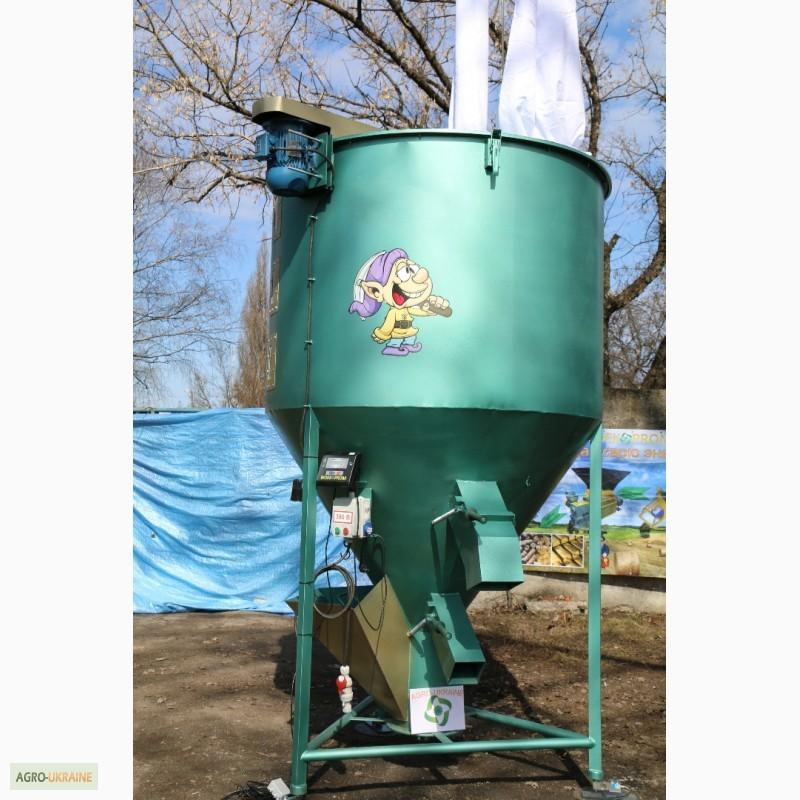

1. Feed mixer "GNOM 1500"

The combined feed installation consists of a vertical mixer and a self-suction hammer crusherдробилки with a suction hose length of up to 20 meters and the ability to simultaneously use up to 5 hoses in alternating work, as well as their full automation.
The crusher is used to grind all types of grain crops, such ascorn, barley, soybeans, wheat, etc. into the required fraction, and then the prepared crushed materials enter the mixer hopper, where they are mixed with other ingredients in powder form.
　This equipment is a product of Bioecoprom Group with a unique design and technical solutions. The mixer has a strictly balanced central shaft, the bearings are protected by an industrial sealant to ensure a long service life. The mixer can mix homogeneous mixtures for up to 10 minutes, thanks to the double mixing system.

Features and advantages:
1) High efficiency with low costs of grinding and mixing at the same time.
2) Removable materials are easy to replace, durable, convenient to use and maintain.
3) Economical and environmentally friendly, with a low level of noise and dust.
4) Short mixing time (up to 10 min/1t), stable and reliable in operation.
5) Compact structure.

Upon request, an addition can be made to the mixer's hopper, which allows mixing seed materials for grain treatment before sowing. Many advantages make this equipment universal and practical, which is necessary for any farm.(//tractor-service.com)

Technical characteristics of verticalfodder mixers:

Capacity (kg) 1500
Capacity (l) 3390
Height mm 3000
Outer diameter (mm) 1500
Engine power kW 3
Engine (European certification) Belarus
Metal thickness mm. so 3
Automatic engine protection +
Bearings Japan
Screw revolutions min. 700
Diameter of screw auger mm. 30
Mixing time at 98% 30
Weight kg +/- 700
