Technical characteristics:

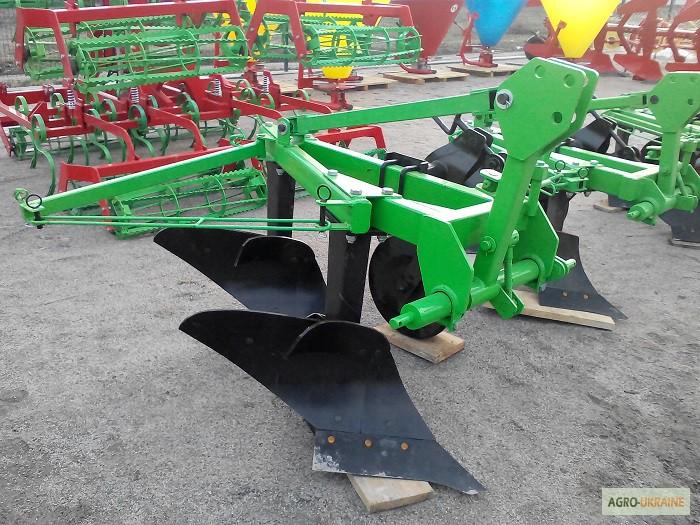

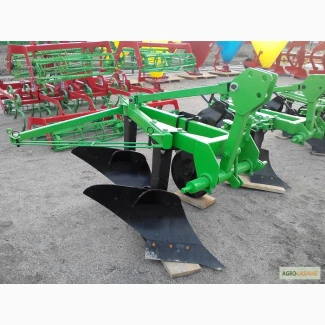

Title - U013
Number of cases - 2 pcs.
Body width - 0.30 m
Working width - 0.30 m
Processing depth - 350 mm
Rack height - 700 mm
(//tractor-service.com)
The mass of the plow is 190 kg
Required power - 30-44 kW/hp.
Classic row plows are intended for medium and deep plowing of flat fields, on all types of soils without stones.
For stony soils, it is recommended to use plows with a shear bolt that protects the body from damage.
We offer 2-, 3-, 4- and 5-body mounted plows with a body width of 250 mm, 300 mm, and 350 mm. The plow body consists of a cylindroidal blade and a plowshare with an elongated chisel-shaped toe of increased strength.
An angular ("cutting bar") is attached above the dump, which has the task of cutting the top layer of soil and dropping it to the bottom of the furrow, thereby achieving a better cover of plant residues. The plow is equipped with a screw mechanism for adjusting the grip width of the first body. The working depth can be adjusted using a steel or pneumatic
support wheel. The used high 700 mm racks prevent the plow from clogging with plant residues during plowing of crops. In front of the last body, the plow has a hole for fastening
disk knife, which is not included in the standard equipment of the tool.
Possible delivery by our transport - UAH 45. km calculation one way
