Line of drying and crushing of sawdust and chips AVM 0-65 up to 1000 kg/h, Poltava region.

Designed for drying wet sawdust productivity up to 800 - 1000 kg/hour.

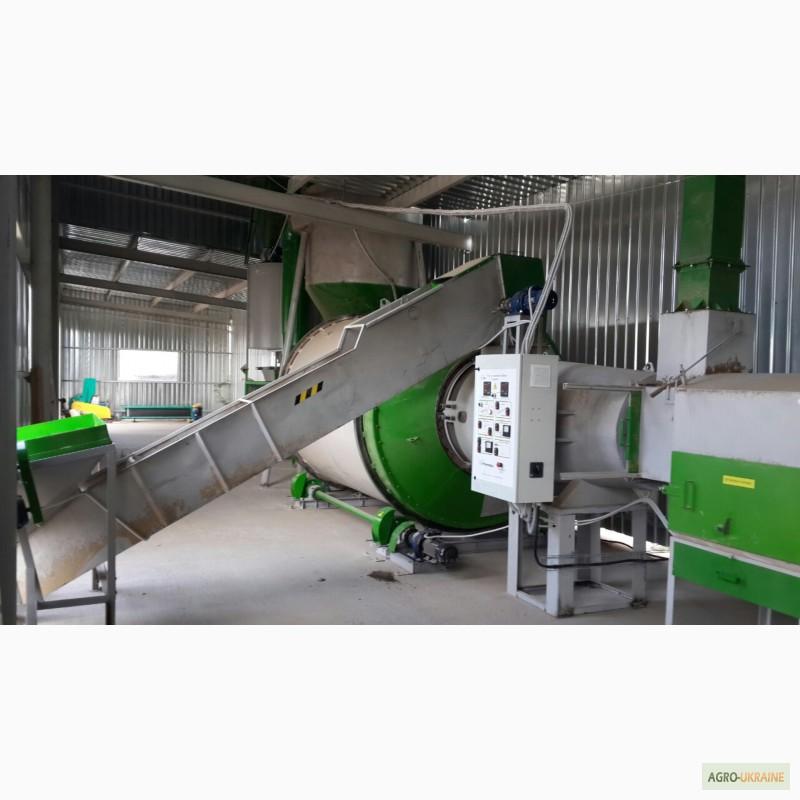

The line is built on the basis of the drum dryer AVM 065 with a restored drum. New electrical equipment is used.
Technical characteristics of the complex:
No. Name Quantity
1 Automatic sawdust burning system 1 pc.

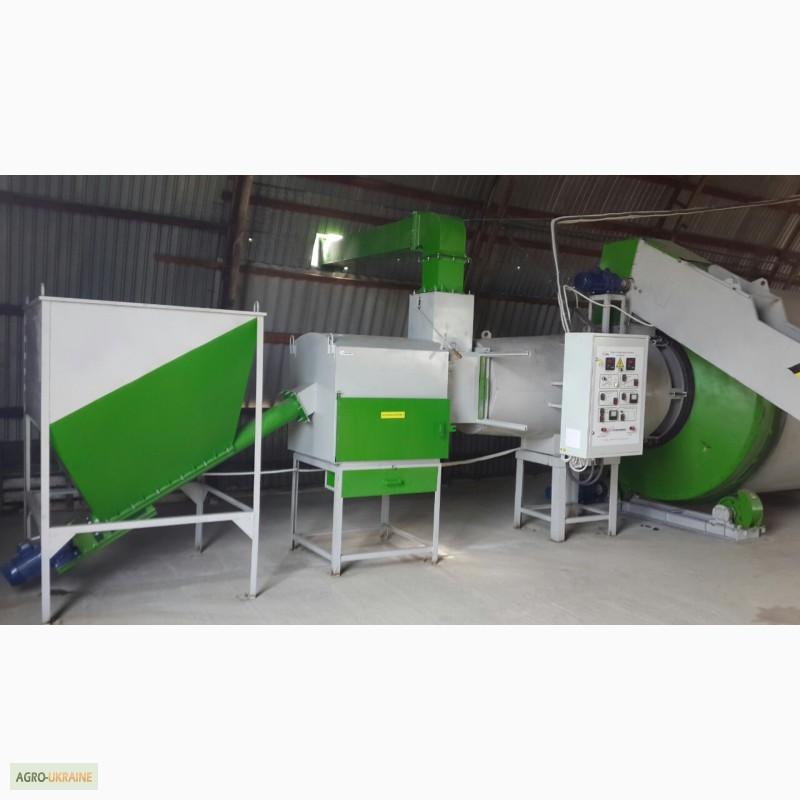

2 Bunker - accumulator with automatic supply of raw materials to the sawdust burning system, volume 1.4 m³ 1 pc.
3 Heat generator 1 pc.
4 Scraper conveyor for loading raw materials into a drying drum, 1.5 kW 1 pc.
5 Throwing sieve for sifting sawdust, 0.55 kW 1 pc.

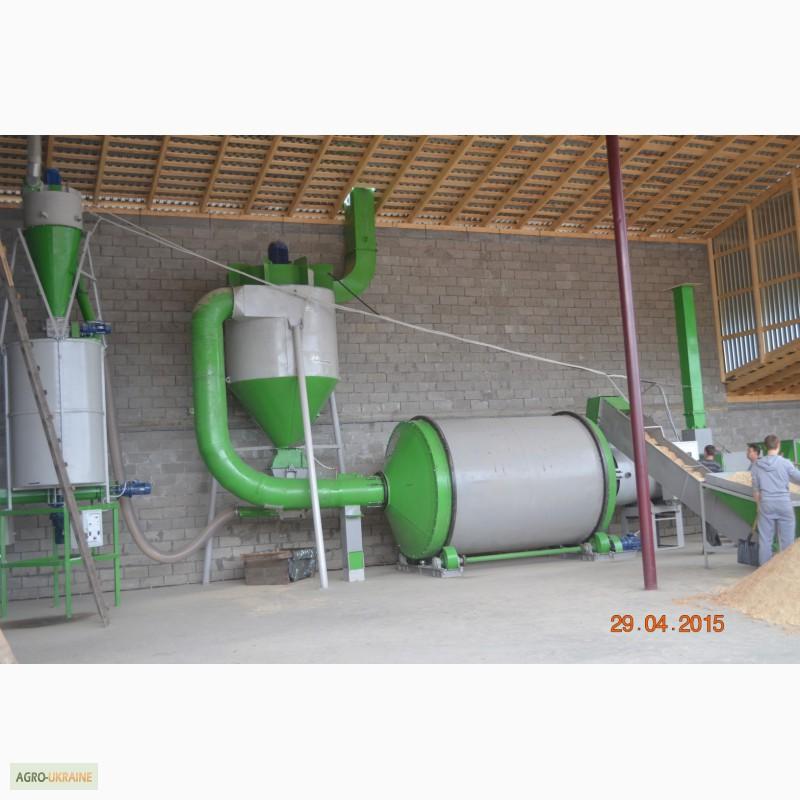

6 Dryer drum with a 4 kW drive system 1 pc.
7 Air duct with catcher of heavy particles 1 pc.

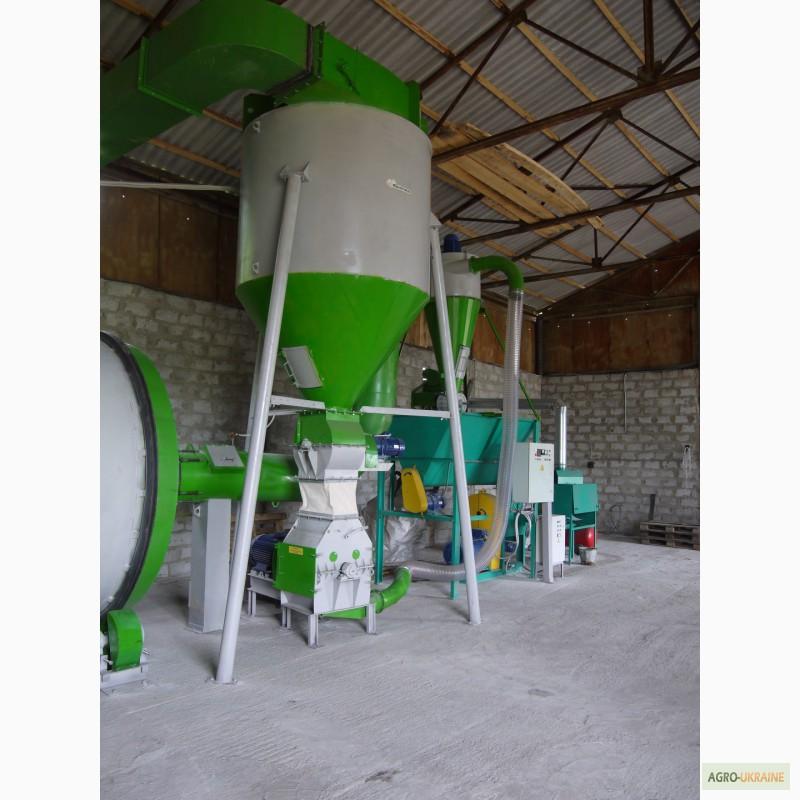

8 Large cyclone with a power of 18.5 kW 1 pc.
9 Large cyclone feeder with a capacity of 1.5 kW 1 pc.(//tractor-service.com)
10 Hammercrusher, 22 kW 1 pc.
11 Flexible air duct 1 pc.
12 Small sedimentary cyclone -
13 Asker-dispenser small cyclone 1 pc.
14 Electric control cabinet with a frequency converter for a drying drum. 1 pc.

Productivity: up to 1000 kg during dried sawdust. Provided that the humidity of the incoming raw material is no more than 50% and the humidity at the output is 12%, as well as the use of sawdust with a humidity of no more than 20% for the furnace.
Sawdust at the entrance. The fraction at the drying entrance is no more than 3 mm in thickness.
The installed power of electric drives is 55 kW.
Consumption of raw materials is 5-7 cubic meters. for 1 ton of dried sawdust (depending on the type of raw material)
Fuel consumption of 1.3-1.4 cubic meters of sawdust with a moisture content of up to 20% per 1 ton of finished product
Premises requirements: Required area - 180 square meters. The height of the ceilings is 6 m (this height is required in one place - the place of installation of a large sediment cyclone)
Number of service personnel: 2 people
