Seeder SUPN - 6 (VOM), Poltava region.

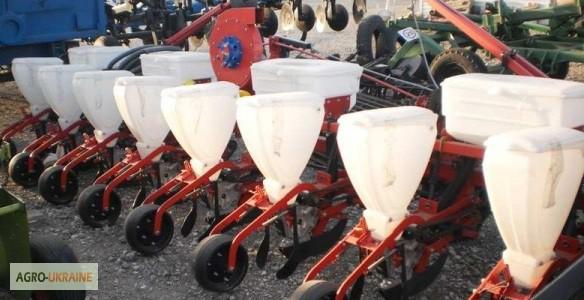

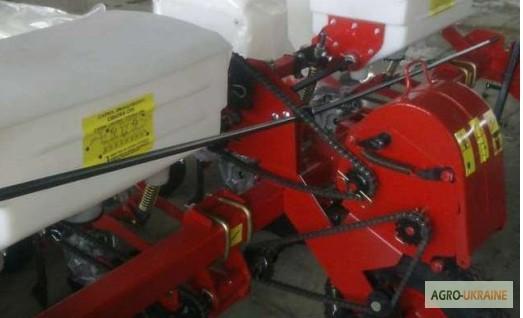

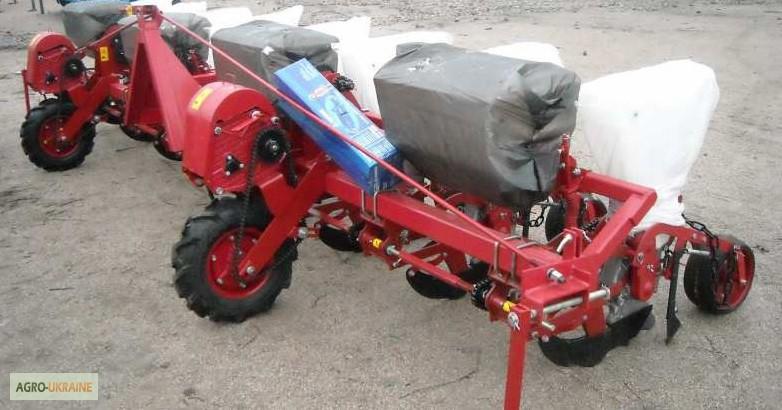

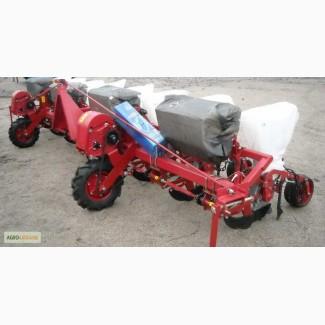

Seeder SUPN-6, used for dotted sowing of seeds of agricultural crops (sunflower, corn, soybeans, etc.), with sowing width between rows 0.7 m. The SUPN-6 seeder allows you to improve the surface of the soil at the same time by applying mineral fertilizers. The design of the seeder allows you to store fertilizers and seeds without mixing them, this is achieved due to additionally installed plastic hoppers. The volume of seed hoppers is 200 l, the volume of fertilizer hoppers is 192 l. Also, the seeder is additionally equipped with a system that controls sowing and the level (fullness) in the hoppers of both seeds and fertilizers. The principle of operation of the SUPN-6 planter is based on the operation of the internal fan, which is driven by the tractor PTO shaft, namely the tractor PTO 540 rpm.
The SUPN-6 planter can be said to be universal, as it is suitable fortractors with traction from 1 to 4 class. Guaranteed working capacity of 12 km/h.
Technical characteristics SUPN-6:
The sowing width is 4.2 m;
Number of rows - 6 pcs.;(//tractor-service.com)
The width between the rows is 0.7m;
Speed - 6 - 10 km/h;
Processing depth - 40 - 120 mm; 140
Норма висіву - 25-150 тис.шт/га.
Sowing rates for each crop are indicated in the instructions that come with each planter. The instructions also indicate recommended settings to improve performance.
