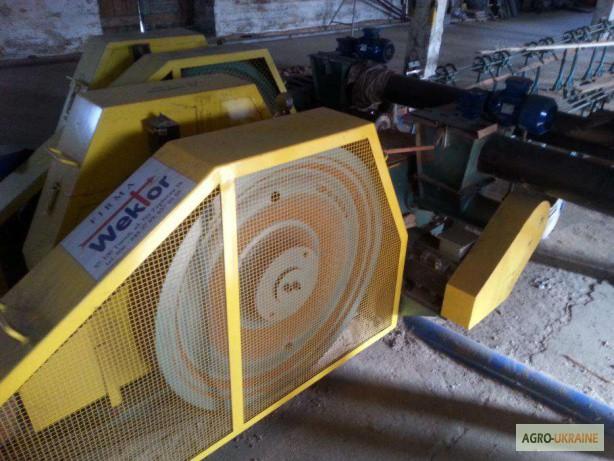

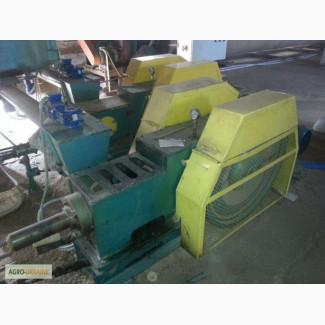

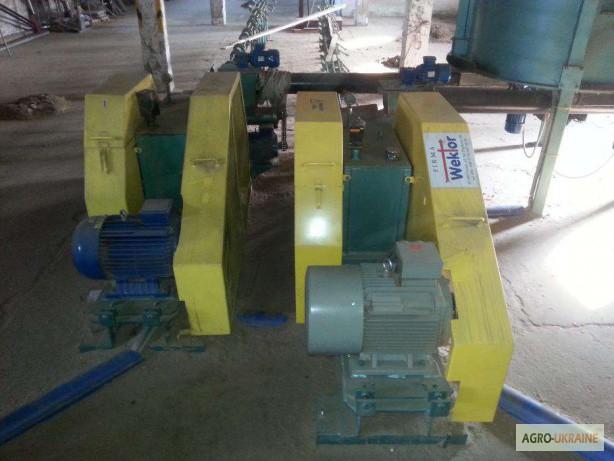

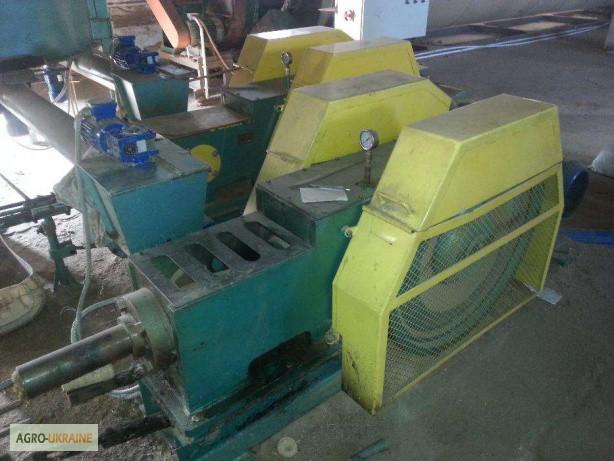

Fuel briquette press briquettes Vector BT60 (500-700kg/hour) Second-hand, Poltava region.

Productivity 500-700kg/hour.
Condition: good, working.

The Vektor bt-60 briquetting press (Poland) is intended for the production of fuel briquettes from sawdust of soft and hard wood, sunflower husks and other plant waste (waste from grain crops, waste from the processing of flax, buckwheat, straw, etc.), without the use of any binders, except for natural lignin, which is contained inplant cells (incoming raw materials).
Preparation of raw materials for pressing fuel briquettes
The following requirements exist for all types of raw materials:
-optimal humidity should be up to 15%.
- the raw material must have a fraction of shavings or sawdust up to 5 mm.
When using raw materials with higher humidity and fractions, equipment for grinding (crusher) and drying (drying complex) is additionally installed.

Technical characteristics BT-60 (Poland)

1 Productivity - sawdust kg/h 500-700(//tractor-service.com)
2 Productivity - straw kg/h 350-500
3 Allowable humidity % 12
4 Degree of compression - as the volume of dry raw materials to the volume of briquettes
5 Briquette diameter (standard version) mm 60
6 Briquette length (random, adjustable) mm 25-200
7 Power of the engine of the main drive kW 18.5
8 Engine power of the briquette press worm drive kW 5.5
9 Type of lubrication of bearings, main shaft, bushings, connecting rod, conductor - forced lubrication
10 Type of oil - superol
11 Oil volume dm3 40
12 Oil pressure mPa 0.6
13 Type of oilpump ― Toothed
14 Lubrication of other elements - plastic grease
15 Size - length x width x height mm 260x950x1100
