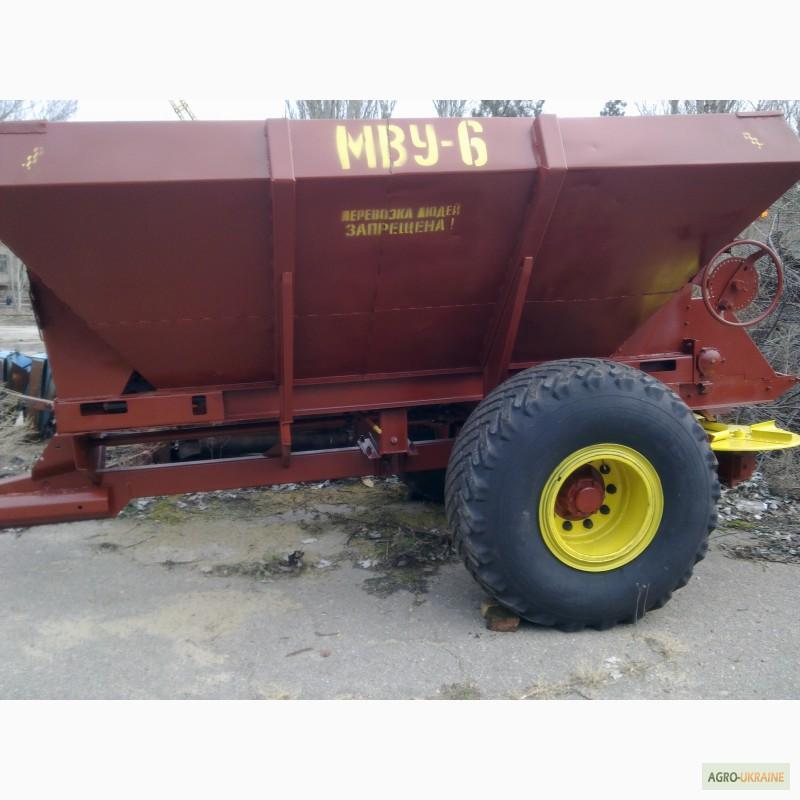

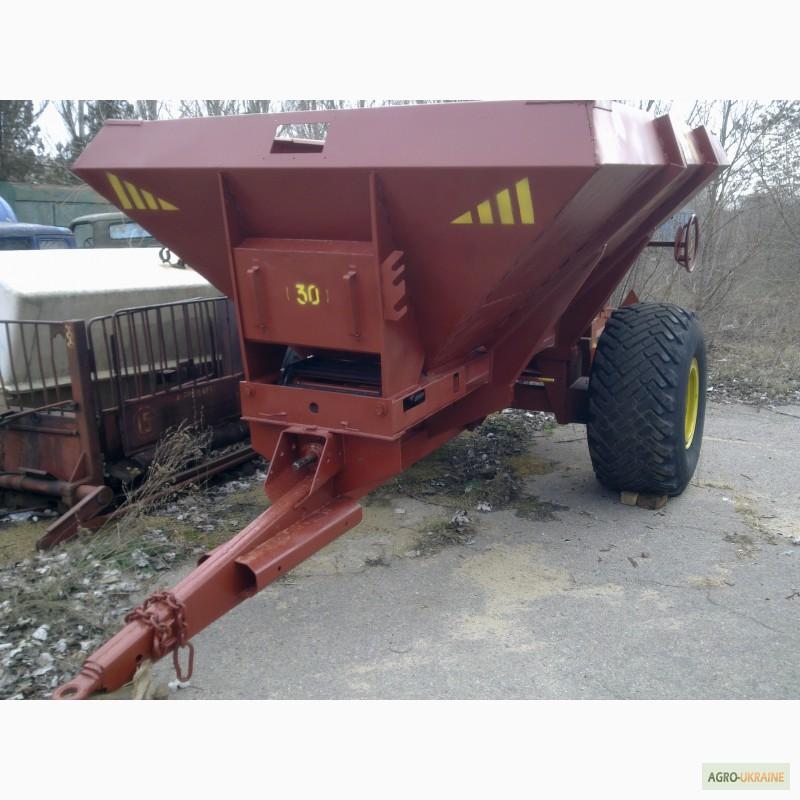

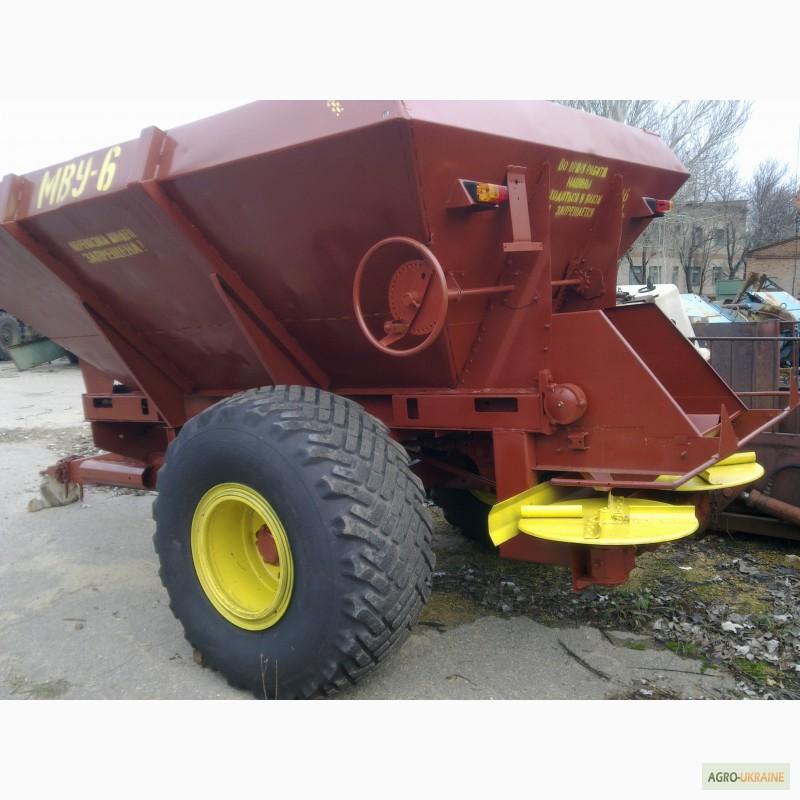

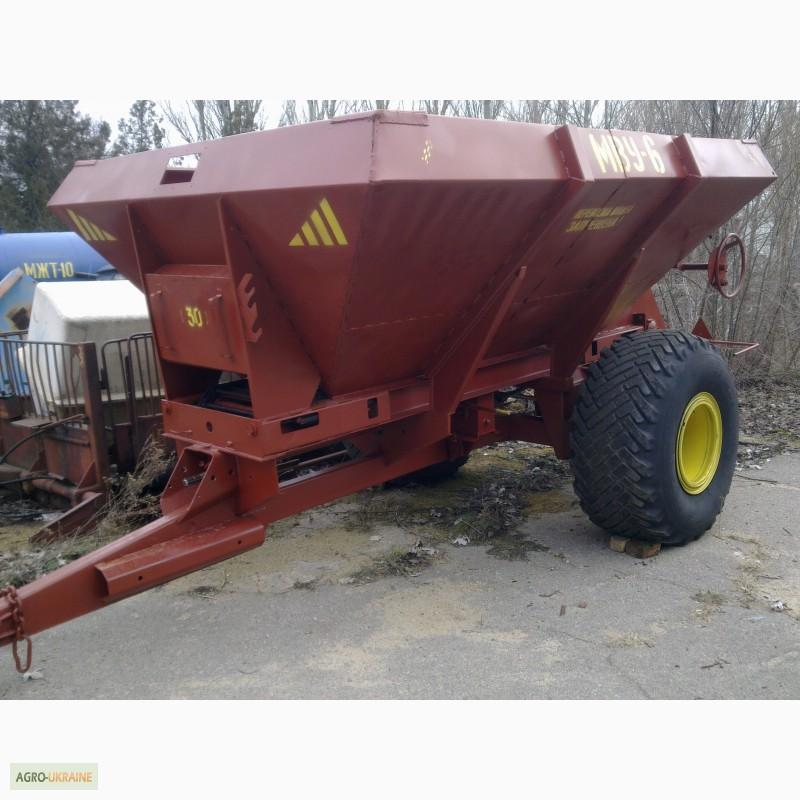

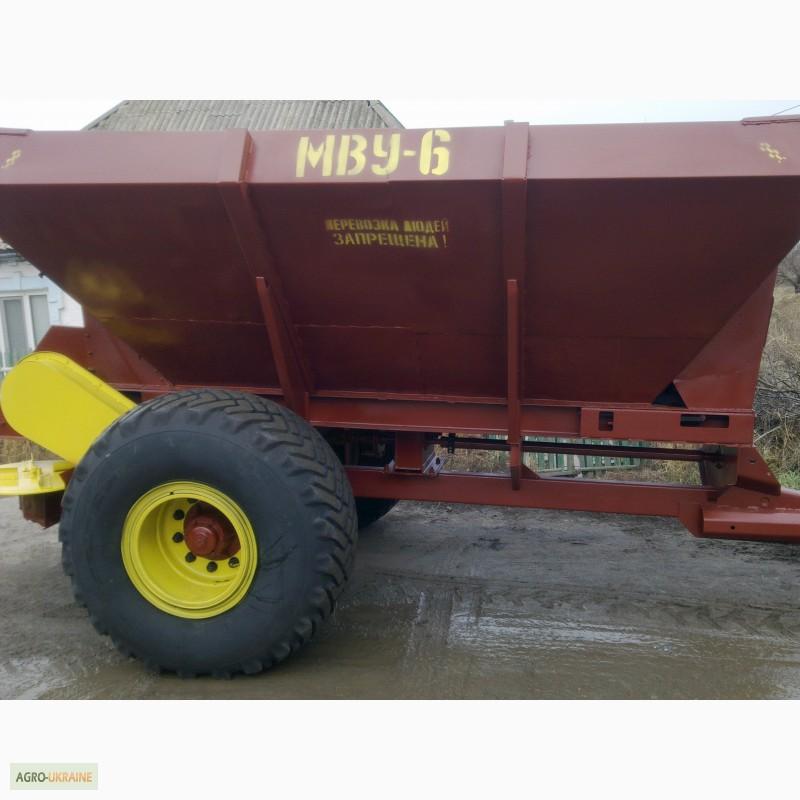

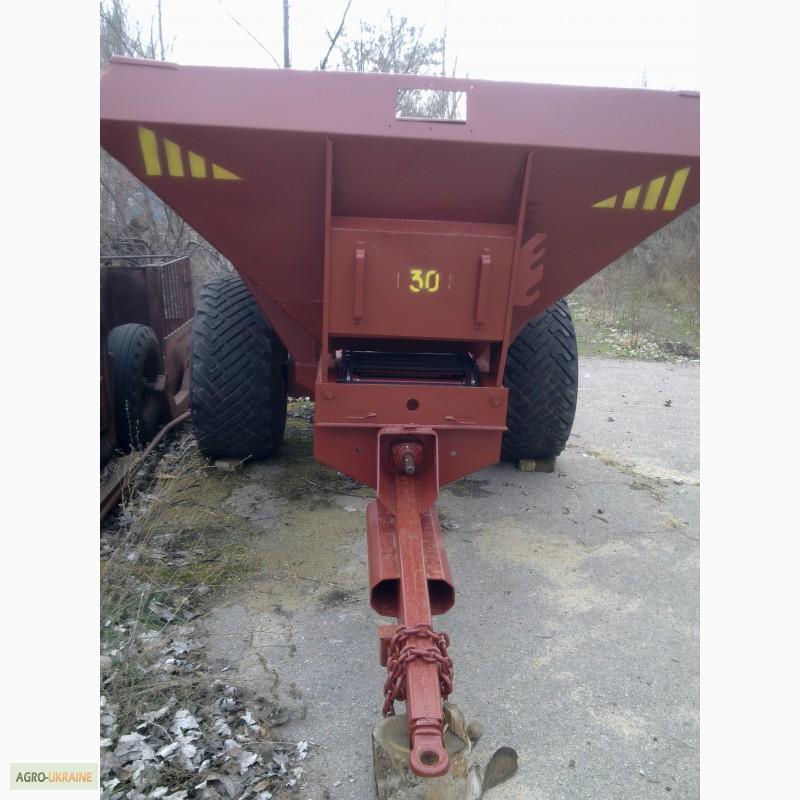

MVU-6 Fertilizer application machine
The MVU-6 machine is intended for transportation and surface continuous application of mineral fertilizers and low-dust calcareous materials to the soil in soil and climatic zones:
The machine is aggregated with a tractor of traction classes 1,4...2 (MTZ-80, MTZ-82), equipped with a hydraulic traction hook, a rear power take-off shaft with a rotation frequency of 1000 rpm, terminals for connecting electrical equipment, hydraulic and pneumatic braking systems.
MAIN TECHNICAL CHARACTERISTICS
Mass kg 2200
Overall dimensions: length mm 5370
width mm 2.50
height mm 2.50
gauge mm 1.95
Carrying capacity t 6
It is aggregated with tractors
MTZ-80
Pressure intires MPa 0.17
Tires (//tractor-service.com)
22.0/70-20
Productivity ha/h when applying
granulated, fertilized with a density of 1100 kg/m2
7.8-15
lime materials 6
The width of capture m when applying
granulated fertilized
14-20
limestone materials
8-10
The transport speed is not more than 30 km/h. 172
Число обслуживающего персонала
1 tractor driver
