Ventilators for animal husbandry: puchnikov, pig farm VO-12, 5, Volyn region.

Ventilators for animal husbandry: poultry farm, pig farm VO-5,6 VO-7,1 VO-8, VO-12,5

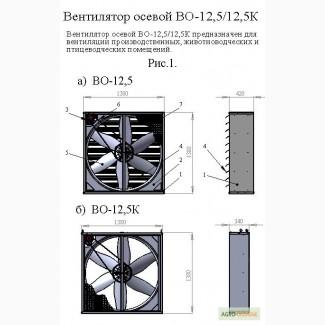

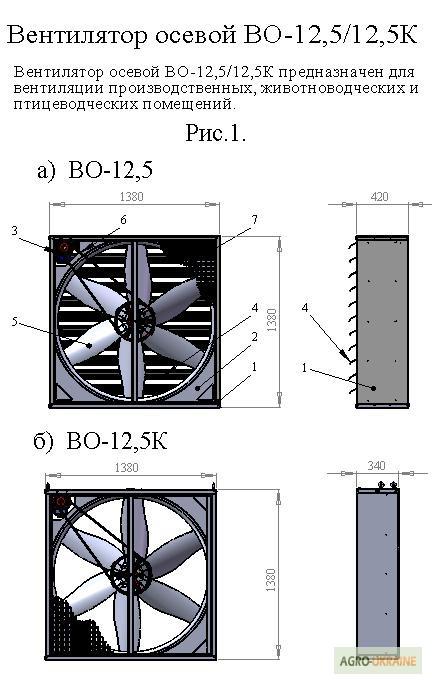

Axial fan VO-12.5 (Fig. 2), consists of a housing (1), a diffuser (2), an electric motor (3), an aerodynamic valve (louver) (4),wheels working (5), a V-belt transmission (6), a guard mesh (7). The body is a box structure made of a bent profile of galvanized steel. The working wheel consists of a hub with 6 aluminum blades and a pulley attached to it.
It is mounted on axles by means of ball bearings. The engine is mounted on a movable plate in the upper part of the housing, on which the belt tension adjustment is installed, and transmits rotation to the impeller through a V-belt transmission. To prevent outside air from entering and creating drafts in the room (in the non-working state), the fan has shutters that are attached to the housing. In the working condition, the blades of the blinds open under the action of the moving air flow and loads - counterweights. When the fan is working, air is taken from the room and thrown outside. For safety purposes, the impeller is protected by a protective net.

Air supply at maximum mode, m3/hour 40000+500
Mass, kg, no more than 120
AIR 80A4/B4 electric motor(//tractor-service.com)
Rotational frequency of the electric motor, min 1400
Power -1.1-1.5 kW
Parameters of electric power supply:
Voltage, V-380+7.5%
Frequency, Hz 50
Nominal diameter of the impeller, mm 1250
The rotation frequency of the impeller at maximum air supply, min 400+5%
Габаритные размеры, mm 1380x1380x420(340)
