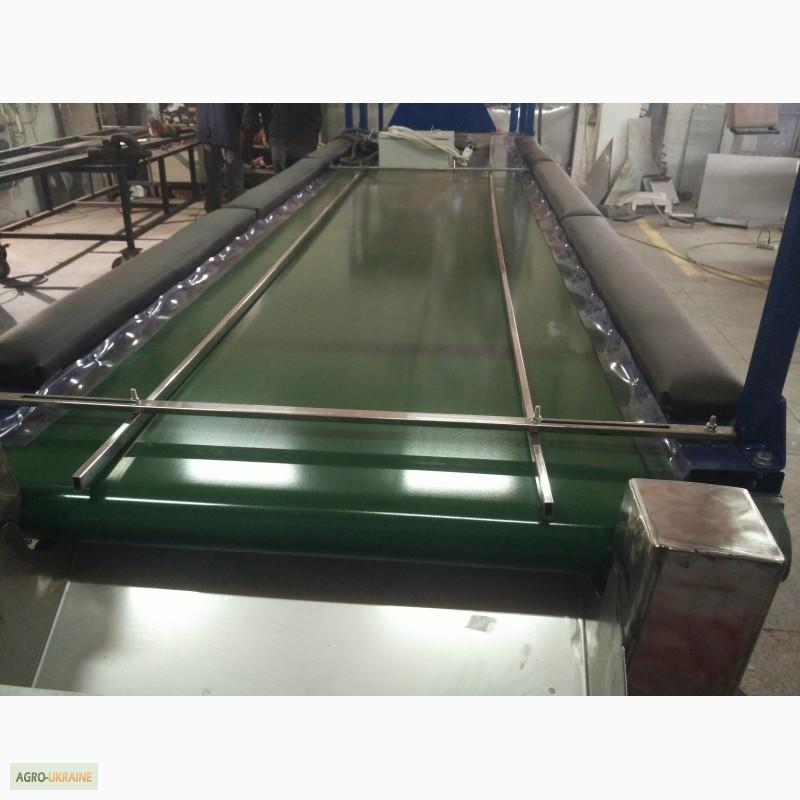

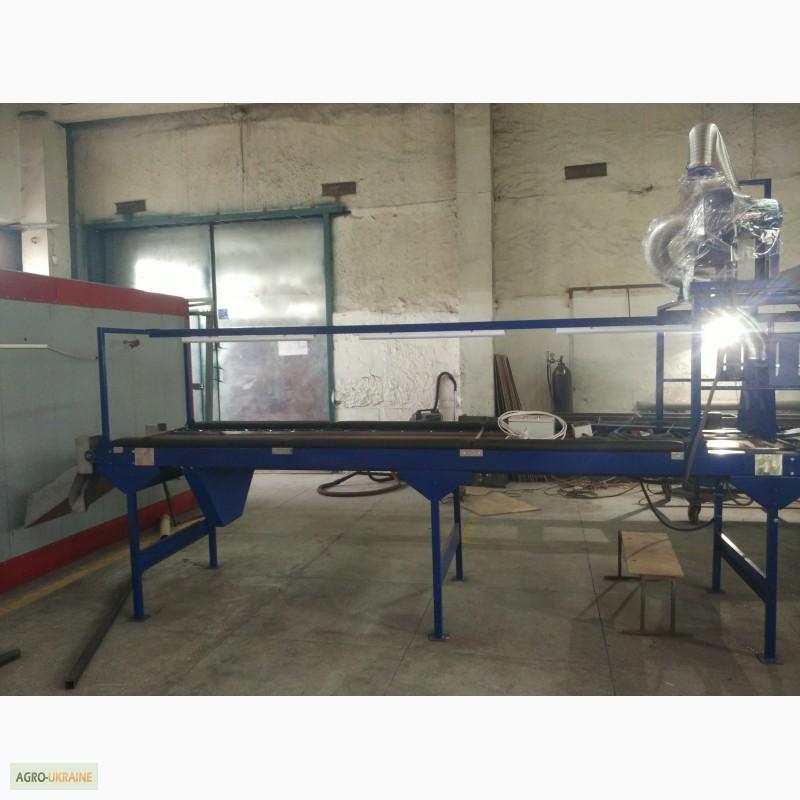

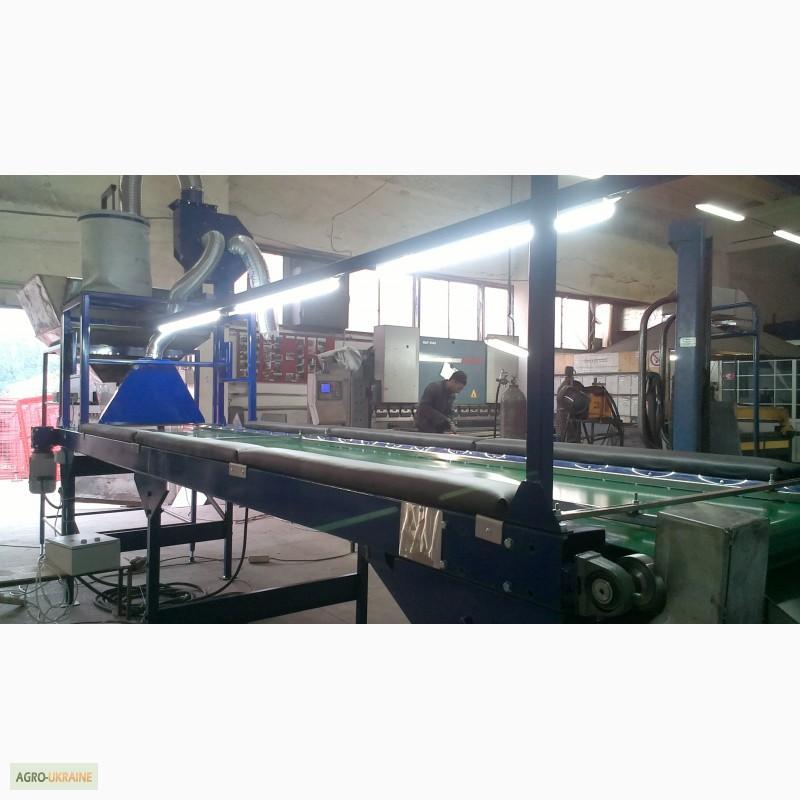

Transporter for sorting nuts. Inspection table. Lenta, Poltava Region.

Conveyor type: horizontal, stationary, bent.
• Conveyor length: 4000mm.
• Tape width: 800 mm.
• Type of tape: PVC, 2 mm thick, 2 distributors made of stainless steel profile pipe 20*10 mm.
• Conveyor frame height: 155mm.
• Drum diameters: 78mm.
• The hopper with a capacity of 300 kg is made of food-grade stainless steel, equipped with a magnetic vibrator and a gate valve.(//tractor-service.com)

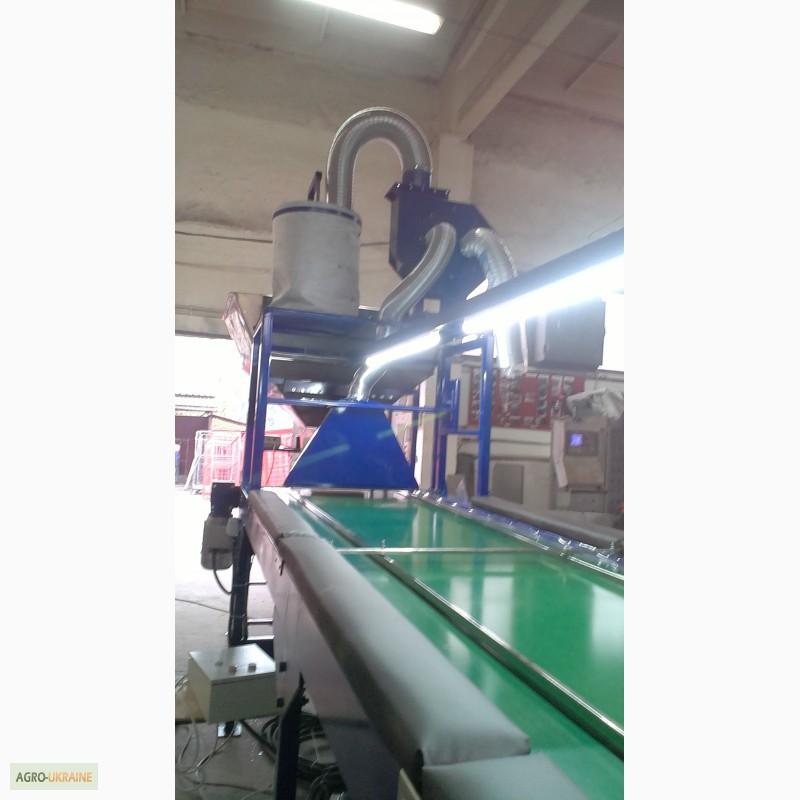

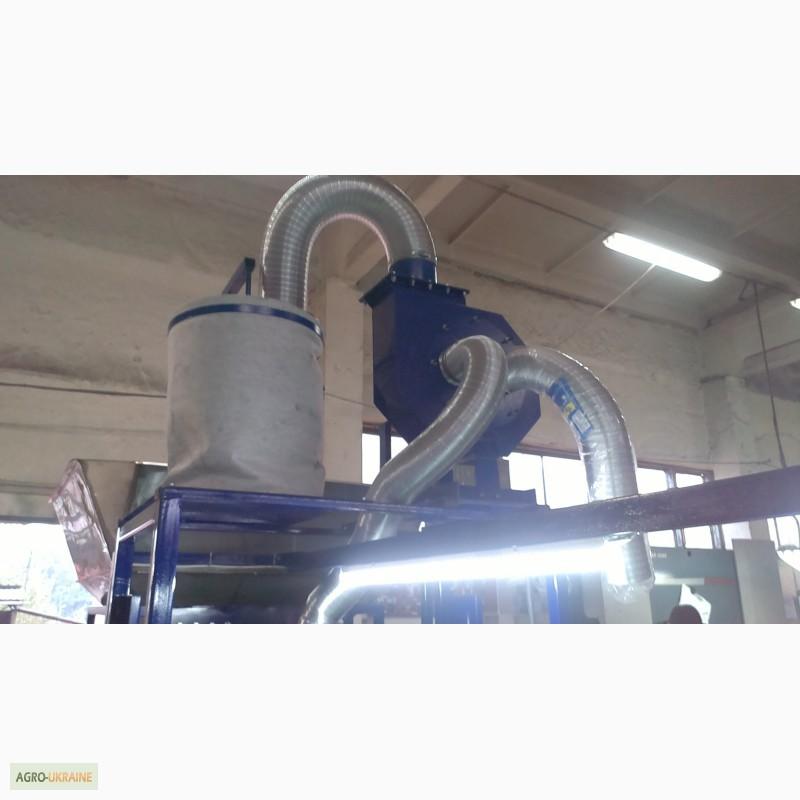

• The conveyor is equipped with radial dust aspiration of the VRP 2.8-8 type.
• The output tray is made of food-grade stainless steel, the product output tray is divided into two 200mm pieces after 100mm.
• A system of self-cleaning of the belt from small remnants of walnut kernels is provided at the bottom of the conveyor.
• On the sides of the conveyor, 100mm soft sides with leatherette and paralon, tape to prevent products from getting under the tape.
• A lighting system for workplaces with 3 diode lamps per 1m is provided.
• The speed of the tape is adjustable.
• 0.55 kW gear motor made in Italy with a frequency converter.
• Frame metal: structural steel.
