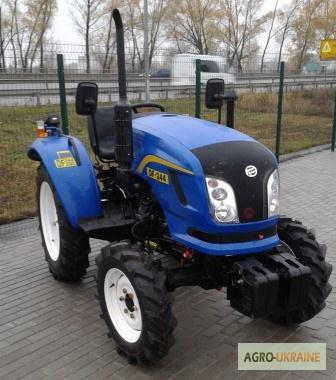

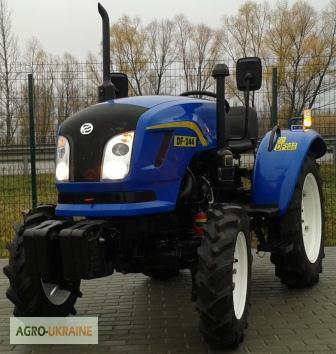

All-wheel drive minitractor with water-cooled diesel, 24 hp, with power steering, 2 hydraulic pumps, height-adjustable seat, rear light, pump belt tensioner, spacer for installing the front
of a loader, rear-view mirrors, handbrake, hour counter
Power, hp, (kW) 24 (17.6)
Wheel formula 4x4, plug-in front axle
Diesel engine, KM385BT
Number of cylinders 3
Working volume, l 1.532
Specific fuel consumption, g/kW*h 264
Liquid cooling
Warming up the power supply system with a glow plug
Gearbox (4+1)x2, mechanical
Gear transmission
Steering with power steering
One-disc clutch
Rear differential lockable
Rear drum brakes
(//tractor-service.com)
There is a parking brake
Dimensions L/W/H, mm 2661/1158/1365
Wheel base, mm 1574
Front/rear axle width, mm 1100/1020-1320
Ground clearance, mm 330
Weight, kg 1256
Speed, forward/back km/h 1.1-26.2/1.4-7.5
Size
tyre 6-16/9.5-24
Tank volume, l 25
Power take-off shaft, rpm. 540/730
Traction force on the hook, kN 5.88
Lifting capacity, kg 580
Number of pairs of hydraulic valves 1
Minimum turning radius, m 2.4
Loads, kg front, 80
