Plow for tractors of traction class 1.8 PLN 3-35, Dnipropetrovsk region.

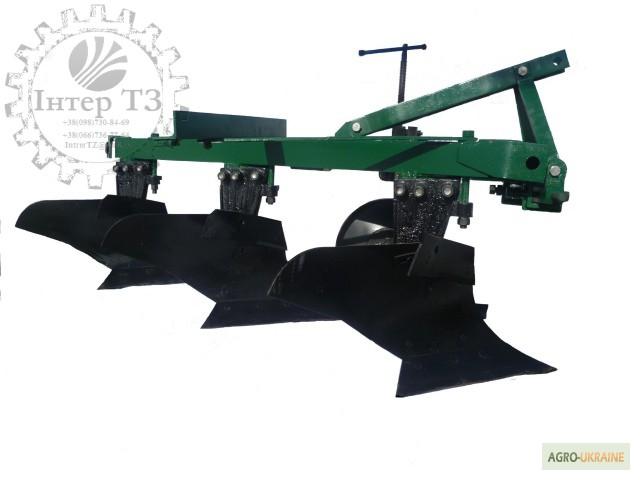

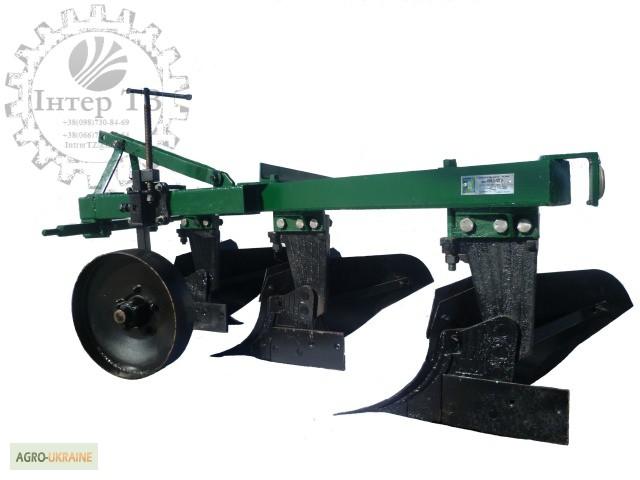

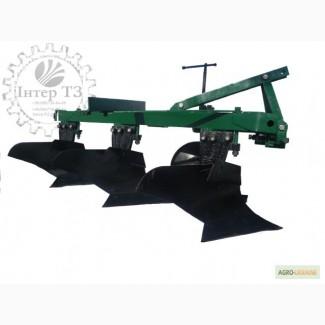

Three-body hinged plowPLN-3-35UA is intended for plowing soils undergrains and technical crops to a depth of up to 30 cm. not clogged with stones, slabs and other obstacles, with specific resistance up to 0.09 MPa (0.9 kg/cm2) and hardness up to 4.0 MPa (40 kg/cm2).
The plow is aggregated with tractors MTZ-80/82, YUMZ-80/82
Productivity over time, ha/h 0.73-0.94
Plowing depth, cm 18-30
Working width of capture, m 1.05(//tractor-service.com)
Plow mass, kg 420
Distance between bodies, mm 800
overall dimensions: 143
длина, мм 2650
width, mm 1850
height, mm 1270
