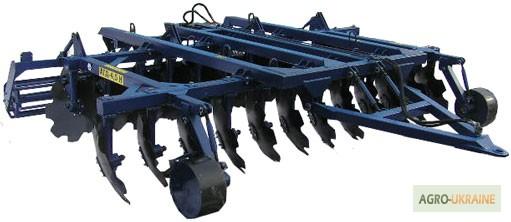

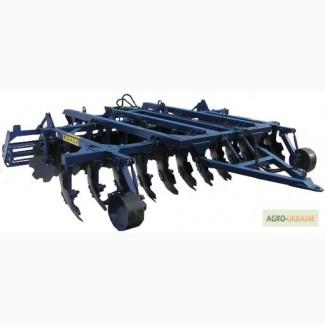

Semi-trailer
disk harrow AGD 4.5 N
Disk harrow(semi-trailer) AGD-4.5N. Semi-trailer disc harrows AGD-2.1N AGD-2.5N AGD-2.8N AGD-3.5N AGD-4.5N harrow AGD is intended for loosening and preparing the soil for sowing, destroying weeds and grinding crop residues, for dividing soil layers after plowing virgin lands
plowing land with plows, for pre-sowing soil preparation without preliminary plowing and soil treatment after harvesting thick-stemmed arable crops, for caring for meadows and pastures. In one pass, the disk agd unit grinds and embeds the plant residues of the predecessor and weed vegetation into the soil, creates a loosened and leveled layer of soil, and covers the applied fertilizers. The harrow is intended for work on soils with different physical and mechanical properties with a slope of the field surface up to 10°, flat and undulating microrelief, soil moisture up to 28%, soil hardness in the treated layer up to 3.5 MPa, height (length) of plant residues up to 25 cm. Aggregated with t-150k tractors Gripping width, constructive, m 4.5 minus 0.1
Productivity during the main time, ha 3.6 5.1...
Depth of soil cultivation, cm 8.0 18.0...
Working speed, km / h 8.0...12.0
Transport speed, km / h, no more than 20
Weight of the product (without accessories), kg 2100 minus 20
Dimensions, mm, 148
не более:
- length 5300
- width 4250
(//tractor-service.com)
- height 1000
Ground clearance, mm, not less than 300
Fuel consumption, l/ha 11.5,,,13,0
Service personnel,
person (tractor driver) 1
Guaranteed resource, 2000 hectares
