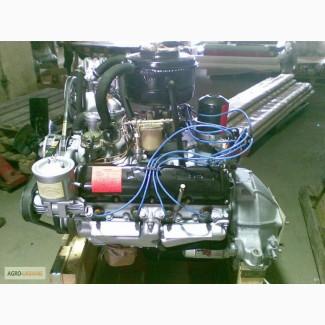

Dvigatel 508-10, ZyL-130, ZyL-131, ZyL-431410, ZyL-433360, Zaporizhia region.

Model and type ZIL-130, V-shaped, four-stroke, carburetor, overhead valve
Arrangement of cylinders At an angle of 90°
Number of cylinders 8
Cylinder diameter and piston stroke, mm 100x95
Working volume of cylinders, l 6
Compression ratio 6.5
Nominal power at 3200 rpm, kW (hp) 110.4 (150)

Maximum torque at 1800-2000 rpm. N*m (kgf*m) 401.8 (41)
Minimum specific fuel consumption, g/(kW-h) [/(hp-h)] 313 (230)
The order of operation of cylinders 1-5-4-2-6-3-7-8
Cylinder numbering: 160
правая группа 1-2-3-4
left group 5-6-7-8
Dry weight of the engine with clutch, gearbox, parking brake system, compressor, power steering pump and fan, kg 640
Block of cylinders Cast iron, with easy-to-remove insert sleeves, with rubber sealing rings in their lower part
Cylinder heads Two, made of aluminum alloy, with insert seats and valve guides
Pistons Made of aluminum alloy
Piston rings Three compression rings - cast iron (two upper chrome-plated) and one oil-removal - steel, composite, chrome-plated
Piston fingers Steel, floating, hollow.
Connecting rods Steel, I-beam section, with piston pin lubrication by spraying
Connecting rod and main bearings Thin-walled, interchangeable; inserts - steel aluminum (steel tape, aluminum alloy)
Crankshaft Steel, forged, five-point bearing, with channels for lubrication; necks with mud traps
Cast iron flywheel, equipped with a steel gear ring for starting the engine from the starter
Distribution shaft Steel, five-point bearing
Gas distribution phases:
intake valve opening 31° to TDC
inlet valve closing 83° after NMT(//tractor-service.com)
exhaust valve opening 67° to NMT
closing the exhaust valve 47° after TDC
Camshaft drive Gear pair with oblique teeth;wheel — cast iron
Upper valves, located in the heads of the cylinder block; are actuated from one camshaft. Exhaust valves — hollow, cooled, with a heat-resistant coating; have a mechanism for forced rotation of the valve during operation.
Mechanical pushers, steel, with special cast iron surfacing.
Valve rockers Steel, with a bronze bushing
Inlet gas pipes — made of aluminum alloy, common to both rows of cylinders, with a liquid cavity for heating the fuel mixture, located between the block heads; graduation — cast iron; one on each side of the cylinder block
Mixed lubrication system: under pressure and spraying, with oil cooling in the radiator
Oil pumpGear pump, two-section, located on the right side of the cylinder block. The upper sectionpump supplies oil through the oil filter to the engine lubrication system. The reduction valve of the upper section is adjusted to a pressure of at least 320 kPa (3.2 kgf/cm2). The lower section of the pump supplies oil to the oil cooler; the bypass valve of the lower section is adjusted to a pressure of 120 kPa (1.2 kgf/cm2)
Centrifugal oil filter with jet drive
Air-cooled oil radiator, made of finned aluminum tube, installed in front of the water radiator
Crankcase ventilation Forced, with suction of crankcase gases into the intake pipeline through a special valve; air enters through the oil filler neck filter
Power system Forced fuel supply
One fuel tank, with a volume of 170 liters, is installed under the platform on the left spar.
Fuel pump B10, diaphragm, with a lever for manual fuel injection.
Heating the fuel mixture In the intake gas pipeline, which has a liquid cavity for heating the mixture
Fuel cleaning filters:
main filter-stoyyik Shchelevoy, located on the bracket of the fuel tank
fine cleaning With a ceramic filter element, located on the bracket in front of the carburetor.
of the fuel tank Setchatyy, located on the receiving tube
The K-88AM carburetor, two-chamber, with a falling flow of the mixture, has an accelerator pump and an economizer.
Limiter of the maximum frequency of rotation of the crankshaft of the engine Pneumatic centrifugal converter and executive diaphragm mechanism with pneumatic drive)
Air filter VM-16, oil-inertia, with two-stage air purification
Cooling system Liquid, closed, with forced circulation
Tubular-tape (snake) radiator, three-row
Thermostat with a solid filler, installed in the outlet pipe of the liquid cavity
Shutters, vertical, controlled from the driver's cabin
Centrifugal water pump, driven by a belt together with a fan from a crankshaft pulley
Вентилятор Шестилопастный
