For sale trailed disc harrows AGD-2.1 N-AGD-4.5N, Dnipropetrovsk region.

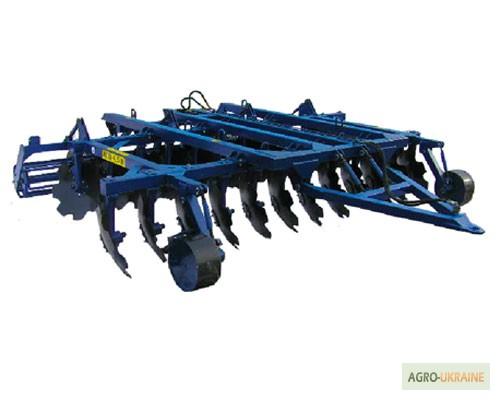

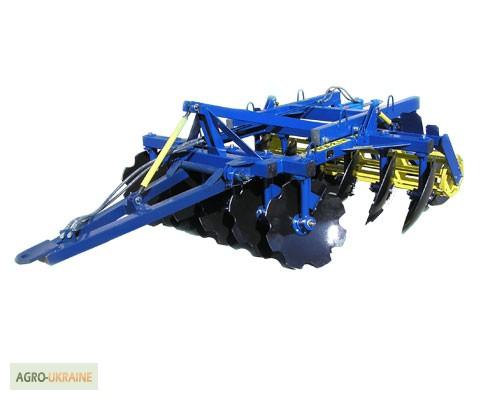

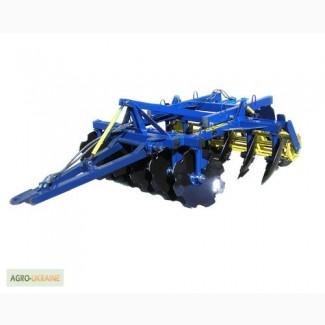

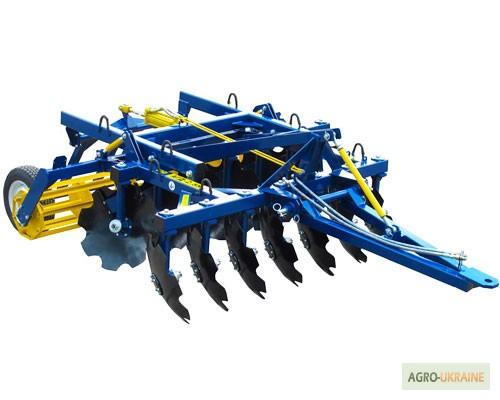

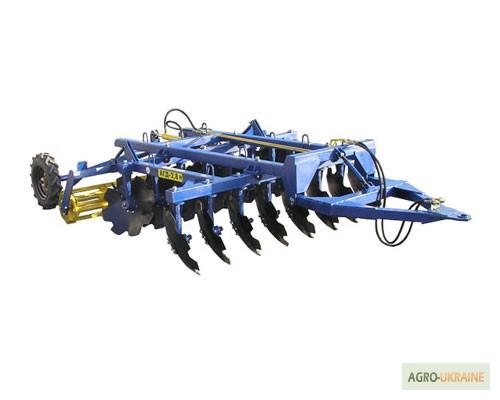

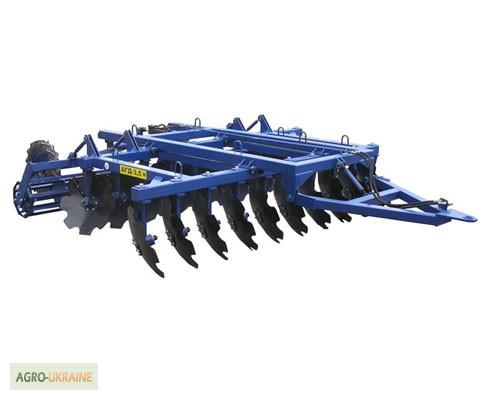

Trailed disk harrows AGD-2.1Н, AGD-2.5Н, AGD-2.8Н, AGD-3.5Н, AGD-4.5N.
AGD trailed disc harrows are intended for the processing of compacted soils of different mechanical composition with grinding and burying of plant residues in the soil.
The unit is intended for the processing of compacted soils of different mechanical composition with grinding and introduction of plant residues into the soil under the following conditions:
- The hardness of the soil is no more than 3.5 MPa,
- Soil moisture is not more than 27%,
- The height of harvest and plant residues is up to 30 cm.
The unit can be used in all soil and climatic zones.
Disk machine trailed harrow AGD - 2.1H Technical characteristics: Width of grip, m 2.1
Productivity, ha 1.5 - 1.8
Depth of soil cultivation, cm 8 - 18
Weight of the product (without accessories), kg 1050
Working speed of movement, km/h 8 - 12. Overall dimensions, mm (length / width / height) 4800 / 2800 / 1300
Трактор с которым Агрегатируется МТЗ - 80/82/100/102
Габаритные размеры , мм (длина / ширина / высота) 4800 / 2800 / 1300
Guaranteed resource, 1030 ha.

AGD trailed disc harrow - 2.5N (patented)
Technical characteristics
Trailer type
Construction width, m 2.5 minus 0.1
Productivity ha / time, 1.8...2.2
Depth of soil cultivation, cm 8...18
Working speed of movement, km/h 8.0...12.0
Transport speed, km/h 20
Weight of the product (without accessories), kg 1160 minus 50 Dimensions, mm, no more
length 4800 minus 150
width 2800 minus 150
height 1000 minus 150
Ground clearance, mm, not less than 300
Guaranteed resource, 1240 hectares.
The unit is designed to work with MTZ-80/82 tractors; MTZ-100/102. Transfer to the transport and working position is hydraulic
Options for using AGD-2, 5H:
- as a trailing unit, it is attached to the tractor with the help of a trailing device;
- as an intermediate option, half-mounted;
- as a mounted tool, the towing device will be moved to a vertical position,
disconnect the wheel travel, hang the unit on the three-point systemtractor;

AGD trailed disk harrow - 2.8Н
Technical characteristics
Trailer type
Construction width, m 2.8 minus 0.1
Fuel consumption, l/ha 7.4 8.9...
Productivity ha / time, 2.0...2.6(//tractor-service.com)
Depth of soil cultivation, cm 8...20
Working speed of movement, km/h 8.0...12.0
Transport speed, km/h 20
Weight of the product (without accessories), kg 1160 minus 20 Dimensions, mm, no more
length 2300
width 3150
height 1500
Ground clearance, mm, not less than 300
Guaranteed resource, 1,600 hectares

AGD trailed disk harrow - 3.5 N
Technical characteristics
Trailer type
Working width, constructive, m 3.5 minus 0, Depth of soil cultivation, cm 8...18
Productivity, ha / time 2.6 4.2...
Working speed, km / h 8.0...12.0
Product weight (without accessories), kg 1750
Transfer to the transport and working position hydraulic Dimensions, mm, no more
length 5300
width 4200
height 1000
Ground clearance, mm, not less than 300
Guaranteed resource, ha 1830

AGD trailed disk harrow - 4.5N
Technical characteristics
Half-mounted type
Gripping width, constructive, m 4.5 minus 0.1
Productivity in time
of the main time, ha 3.6 5.1...
Depth of soil cultivation, cm 8.0 18.0...
Working speed, km / h 8.0...12.0
Transport speed, km / h, 20
no more
Weight of the product (without accessories), kg 2100 minus 20
Dimensions, mm,
no more:
- length 5300
- width 4250
- height 1000
Ground clearance, mm, not less than 300
Fuel consumption, l/ha 11.5,,,13,0
Guaranteed resource, 2000 hectares
